5
RR-94882SL COMPONENTS
The RR-94882SL consists of the following components:
1) RR-980-1510
1) RR-980-1570 1) RR-482-1470/1490 1) SR-20
1) RR-980-1530 1) RR-980-1590 8) PCSC/UPC-0.3 1) PSR-2
1) RR-980-1550 1) RR-980-1610 1) MRX-CWDM-8 1) BPS-1

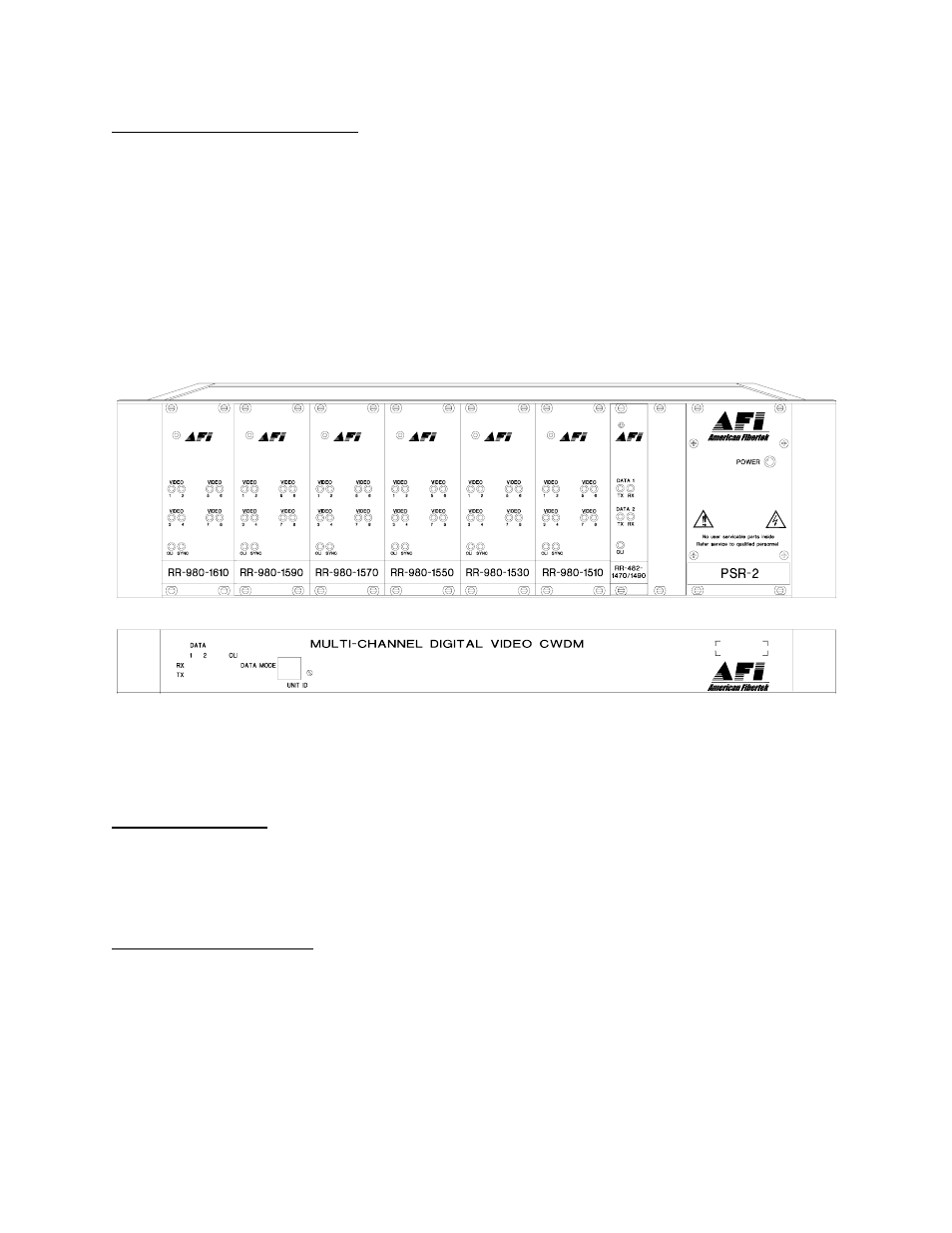

The 980 series video rack cards and the data rack card that make up the RR-94882SL are
installed in a manner similar to the RT-94882SL (see drawing below). The Multi-Channel Digital
Video CWDM that optically demultiplexes the six video rack cards and the one data card used in
the RR-94882SL is labeled MRX-CWDM-8. Mounting procedures and recommendations should
follow those used for the RT-94882SL.
RR-94882SL
POWER SOURCE
Power to the 980 series and 482 series rack cards is supplied by the subrack. Please refer to
the SR-20 and PSR-2 instructions for further details.
The CDWM unit is a passive device which does not require any power source.
POWER CONNECTION
Power is supplied to the individual 980 series and 482 series units via a four finger backplane
connector. The individual components can be inserted into the subrack or removed from the
subrack with power applied to the backplane. Please refer to the SR-20 and PSR-2 instructions
for details.
The CDWM unit is a passive device which does not require any power connection.
