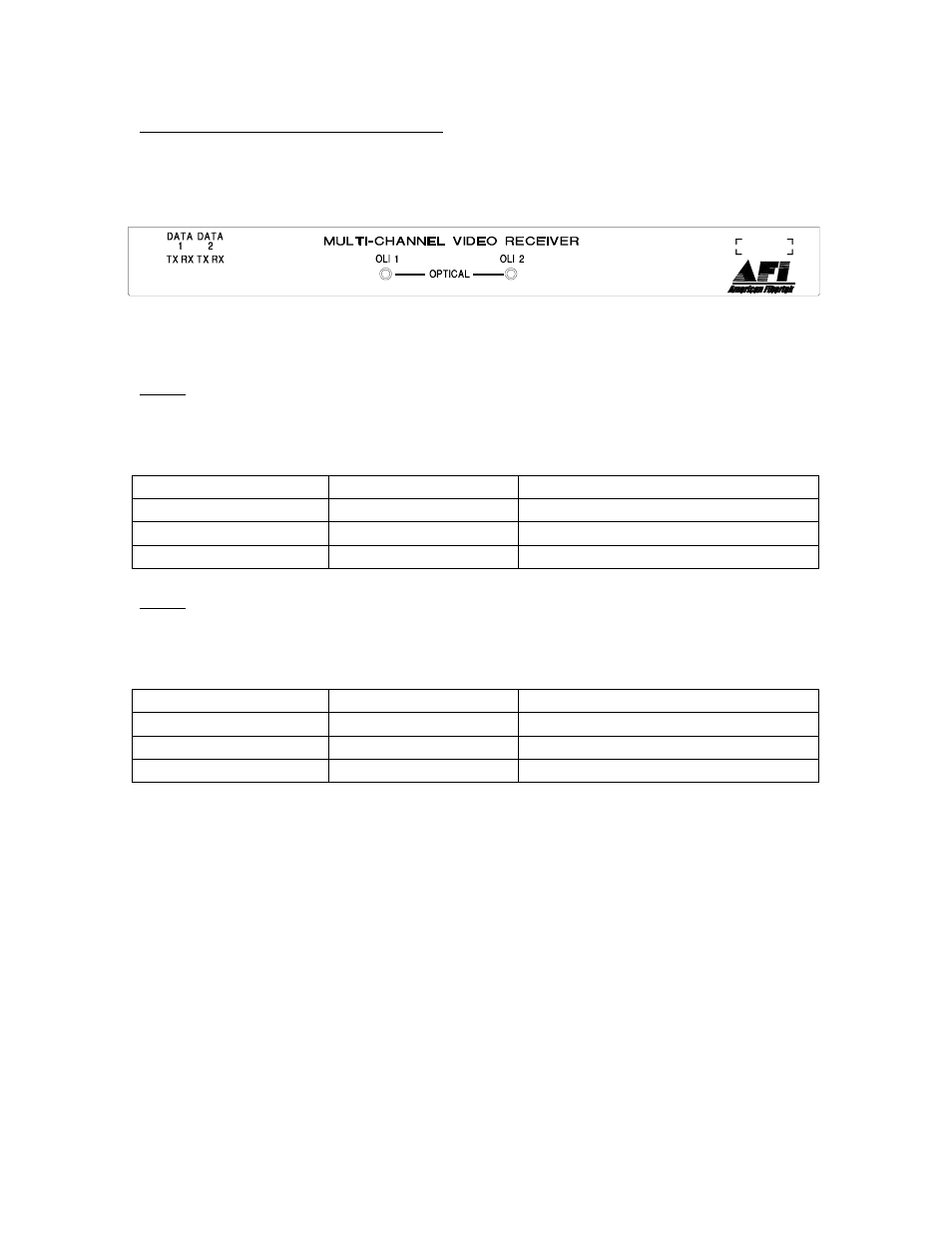

MRR-860SL STATUS INDICATORS
The MRR-860SL receiver provides the following front panel LED status indicators to aid
in installation and troubleshooting:
OLI 1
A bi-color LED indicator monitors the power of the optical input signal that is being
received at the MRR-860SL from video channels one through four of the MRT-860SL.
AC power and optical input status associated with this LED are summarized below.
Optical Level Indicator AC Power Status Optical Status
Green On Proper Optical Input Power Present
Red On Optical Input Not Detected
Off Off Check Power Supply Input
OLI 2
A bi-color LED indicator monitors the power of the optical input signal that is being
received at the MRR-860SL from the two remaining video channels of the MRT-860SL.
AC power and optical input status associated with this LED are summarized below.
Optical Level Indicator AC Power Status Optical Status
Green On Proper Optical Input Power Present
Red On Optical Input Not Detected
Off Off Check Power Supply Input
