AirSep MN187-1 User Manual
Page 6
MN187-1 Rev -
Page 6 of 8

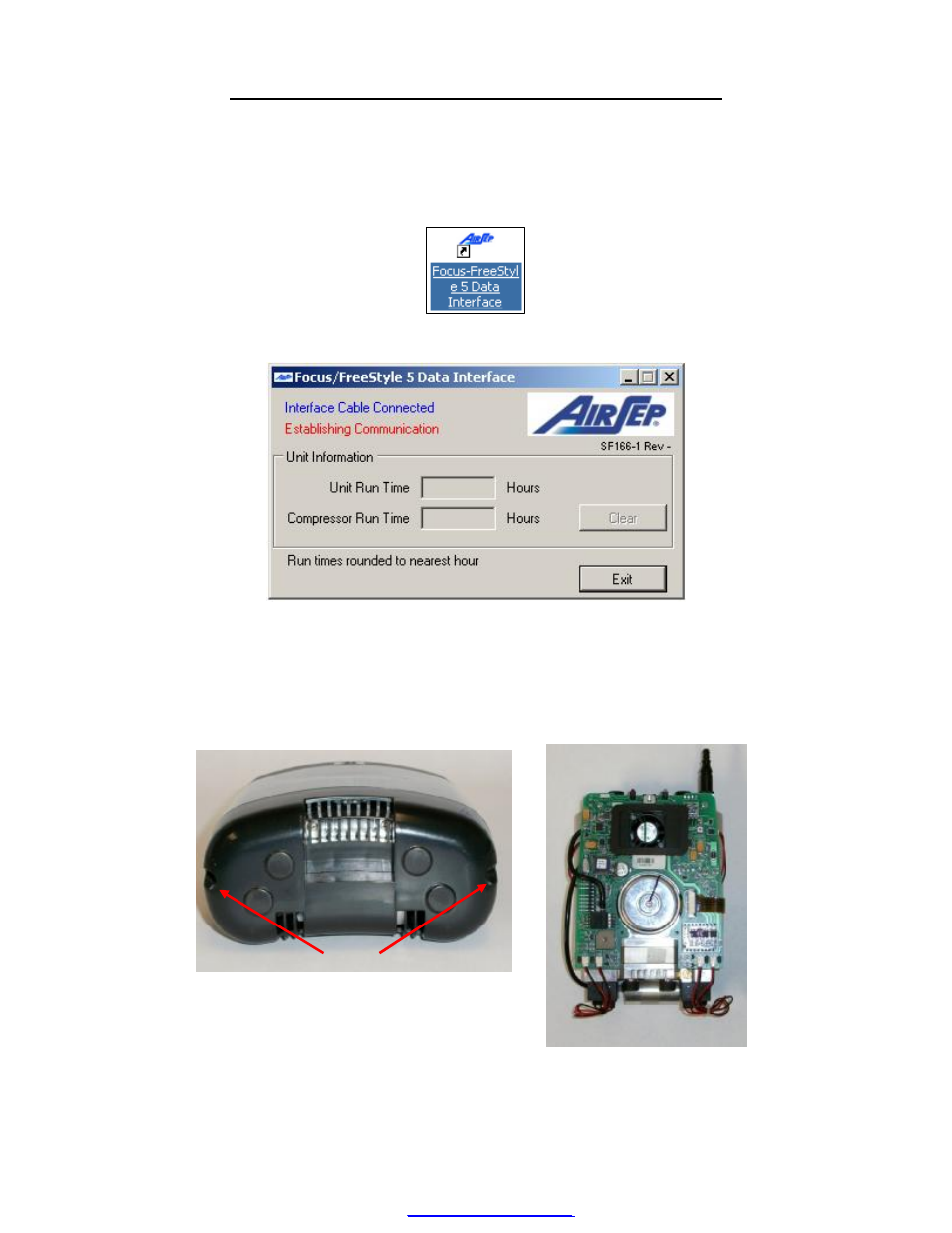

Reading Focus hours using the Focus Data Interface Software
1.
Insert the Focus interface cable (MI347) into an open USB port on your PC.
2.
Click the Focus Data Interface icon on your desktop to start the program. (Fig. 10).
The Focus Data Interface program box will appear (see figure 11).
Fig. 10
Fig. 11
3.
Unscrew the two screws located on the bottom of the Focus unit (Fig.12).
Carefully remove covers and place Focus on its back (Fig. 13).
Fig. 12
Fig. 13
2 screws
