Brewer Element Treatment 2110 User Manual

Page 5

Text mode
Original mode

Document 101291 RevA

J-Bolt R

Nut L

Washer M

Figure A

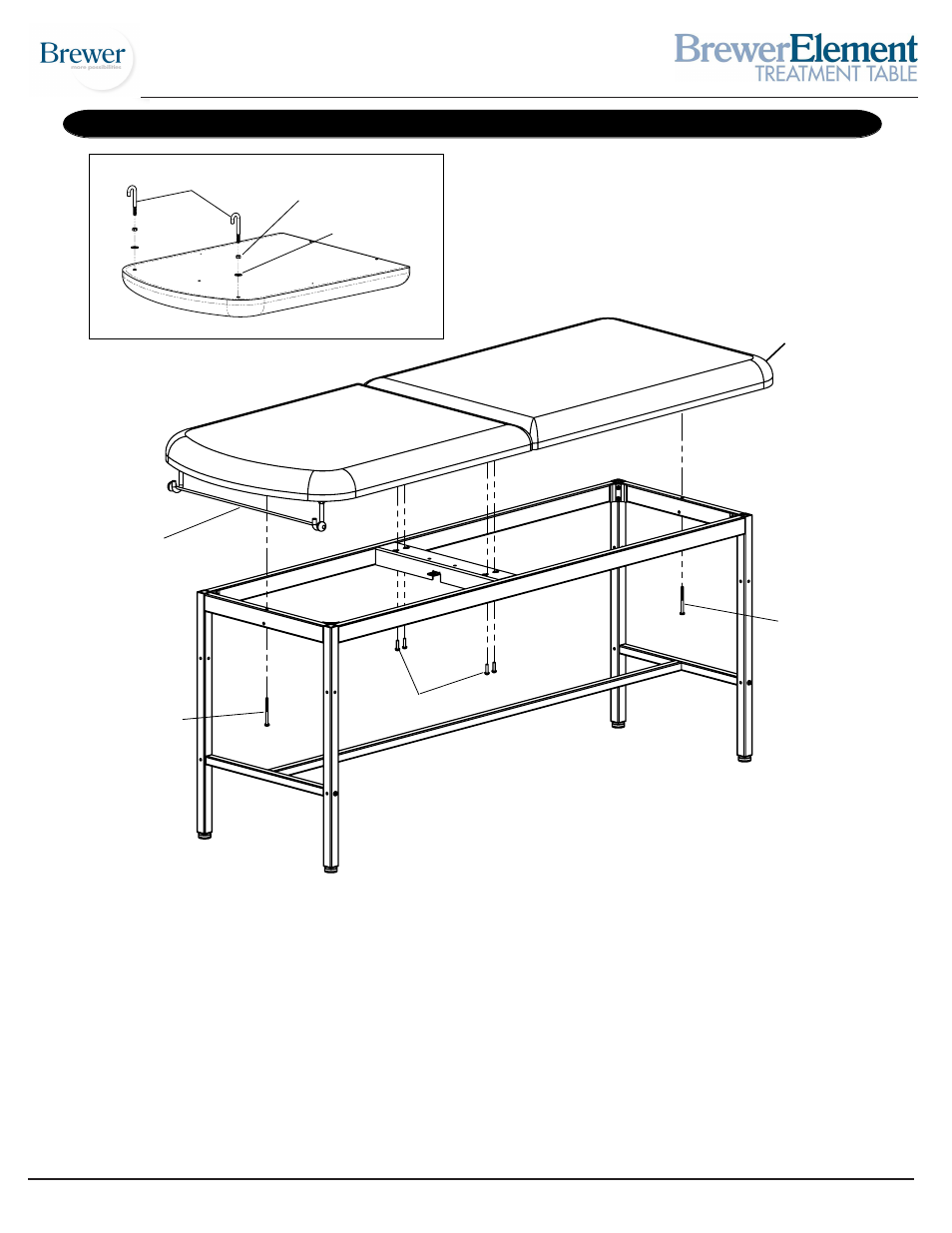

Thread Nut L (3/8”) completely onto J-Bolt.
Place Washer M onto J-Bolt and thread
into Backrest as shown in Figure A.
Position J-Bolt toward head of table as
shown and tighten nut against backrest.

MODEL 2110 STEP 3

STEP B: Set upholstery top and bottom on frame, with Rounded Corners of the upholstery bottom placed at
the Foot End of the table.

STEP C: Install 2 Screws A (1/4”-20 x 3”) through frame and into upholstery.

STEP D: Install 4 Screws F (1/4”-20 x 1”) through frame and into upholstery.

STEP E: Tighten Screws.

STEP F: Slide the Dowel Rod through the paper roll and hang the Dowel Rod on the J-Bolts. Ensure a secure
fit before using the paper roll dispenser.

Screw A

Screw F

Dowel Rod

Rounded
Corner

Foot End

STEP A: Install J-Bolts as shown in Figure A.
