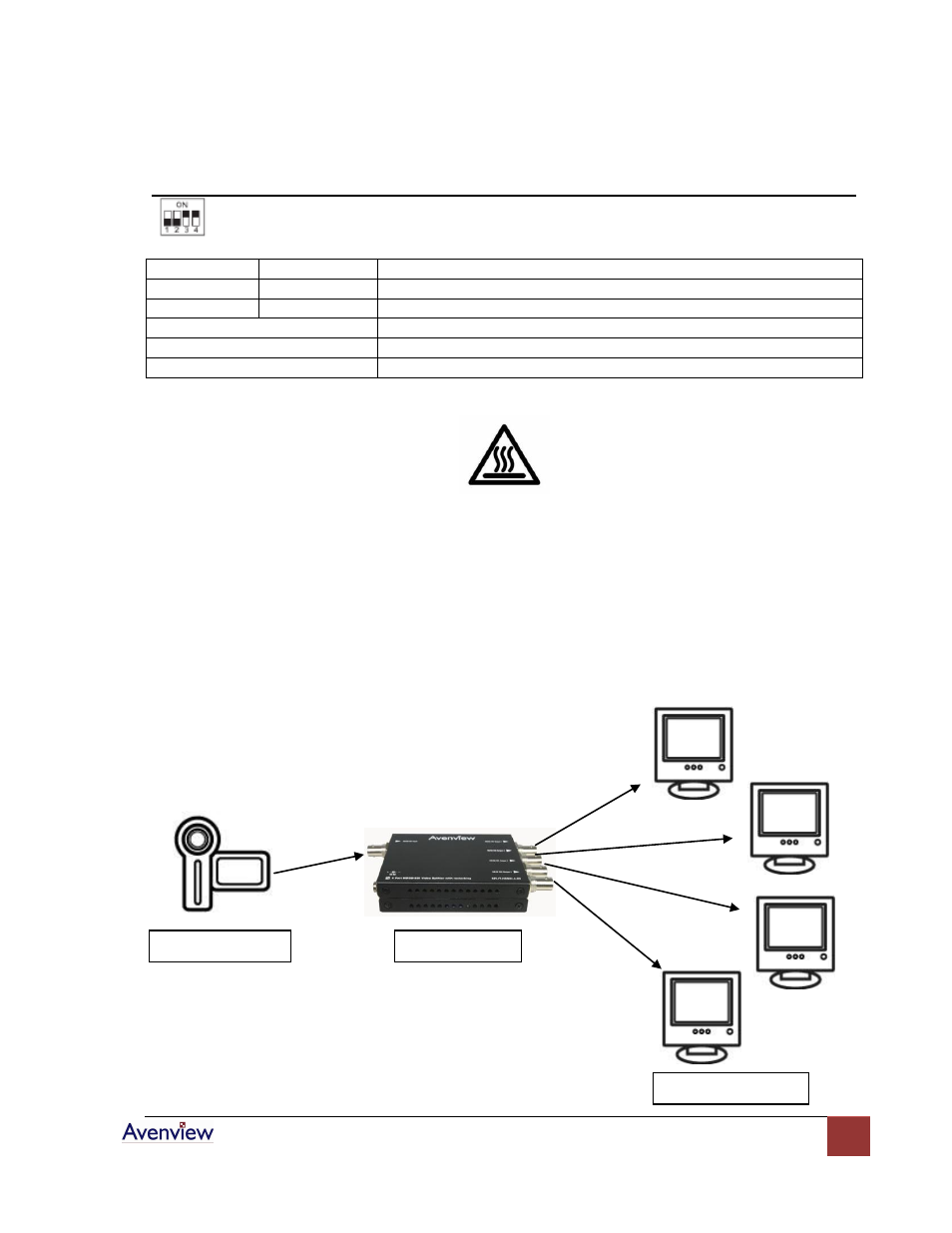

Bottom Panel
PIN 1 - OFF PIN 2 – OFF Auto rate detect (143 Mbps rate operation supported only in ARD mode)
PIN 1 - OFF PIN 2 – ON 270 Mbps
PIN 1 – ON PIN 2 – OFF 1483 / 1485 Mbps
PIN 3 - OFF Automatically reclocks bypassed SDI signals
PIN 3 - ON For to bypass SDI signal
PIN 4 - OFF Default Operation mode
Section 2: Installation
Follow these instructions for installation of SPLIT-HDSDI-4-RS:
1. Ensure SPLIT-HDSDI-4-RS and all other source devices are turned off
2. Connect a camera or other HD/SD-SDI device to Input of SPLIT-HDSDI-4-RS
3. Connect devices equipped with HD/SD-SDI inputs (e.g. monitors or video processors) to
SPLIT-HDSDI-4-RS outputs
4. Turn ON all devices connected to output of SPLIT-HDSDI-4-RS
5. Plug power adapter to 5V DC power jack of SPLIT-HDSDI-4-RS
HD/SD-SDI Camera
4 HD/SD-SDI Displays
SPLIT-HDSDI-4-RS
