If your receiver has a single (mono) SUB OUT, connect an RCA cable
from this output to the AS8 RCA right (R) input.
•
If your receiver has an LFE output, connect an RCA cable from this
output to the AS8 LFE IN.
Note: Your receiver’s manual should indicate which subwoofer connection is
most appropriate.
Option B
Connect a mini-jack or RCA cable from any audio product (iPod, computer,
CD player, TV, etc.) to one of the AS8 INPUT connectors.
Connections
Power
•
Verify that the power switch on the rear panel is in the OFF position
before making any connections.
•
Verify that the voltage selector switch is set to the correct operating
voltage in your area.
•
Connect the AC power cord to the subwoofer and the other end into a
wall outlet. Do not use the outlet on the back of your Audioengine
powered speakers or receiver.
Note: If using a receiver or surround sound processor always refer to the instruc-
tion manual for specific setup procedures, options, and warnings
Setup Diagrams

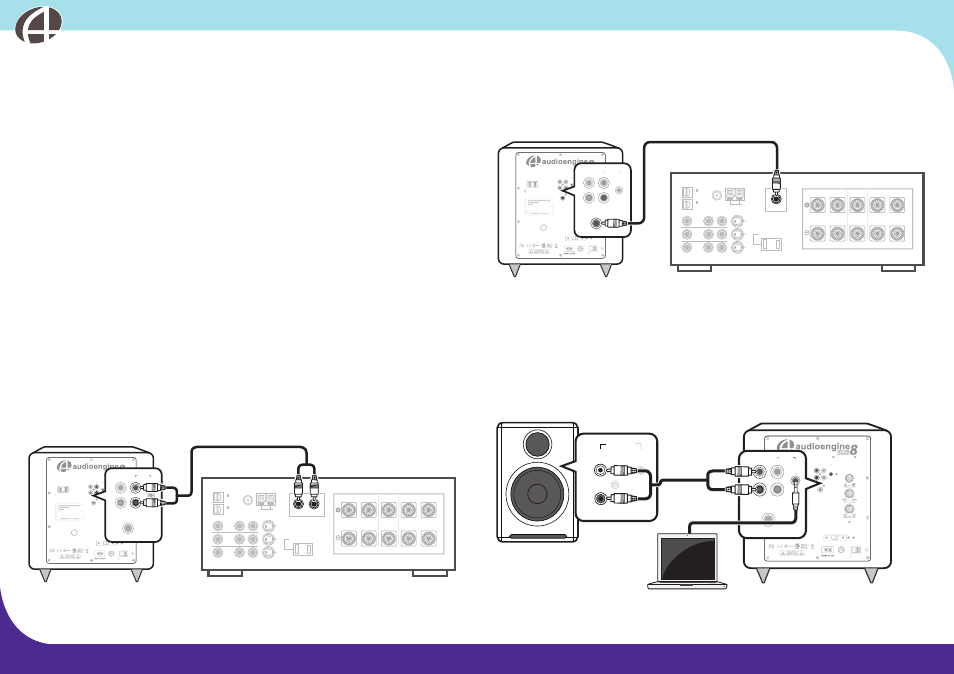

The diagrams that follow show the most common setup and connection
options to connect your AS8 to other audio gear.
Option A
Connect a stereo RCA cable from your receiver's preamp SUB OUTPUT to the
AS8 subwoofer INPUT.
audioengine S8 setup guide
audioengine S8 setup guide
