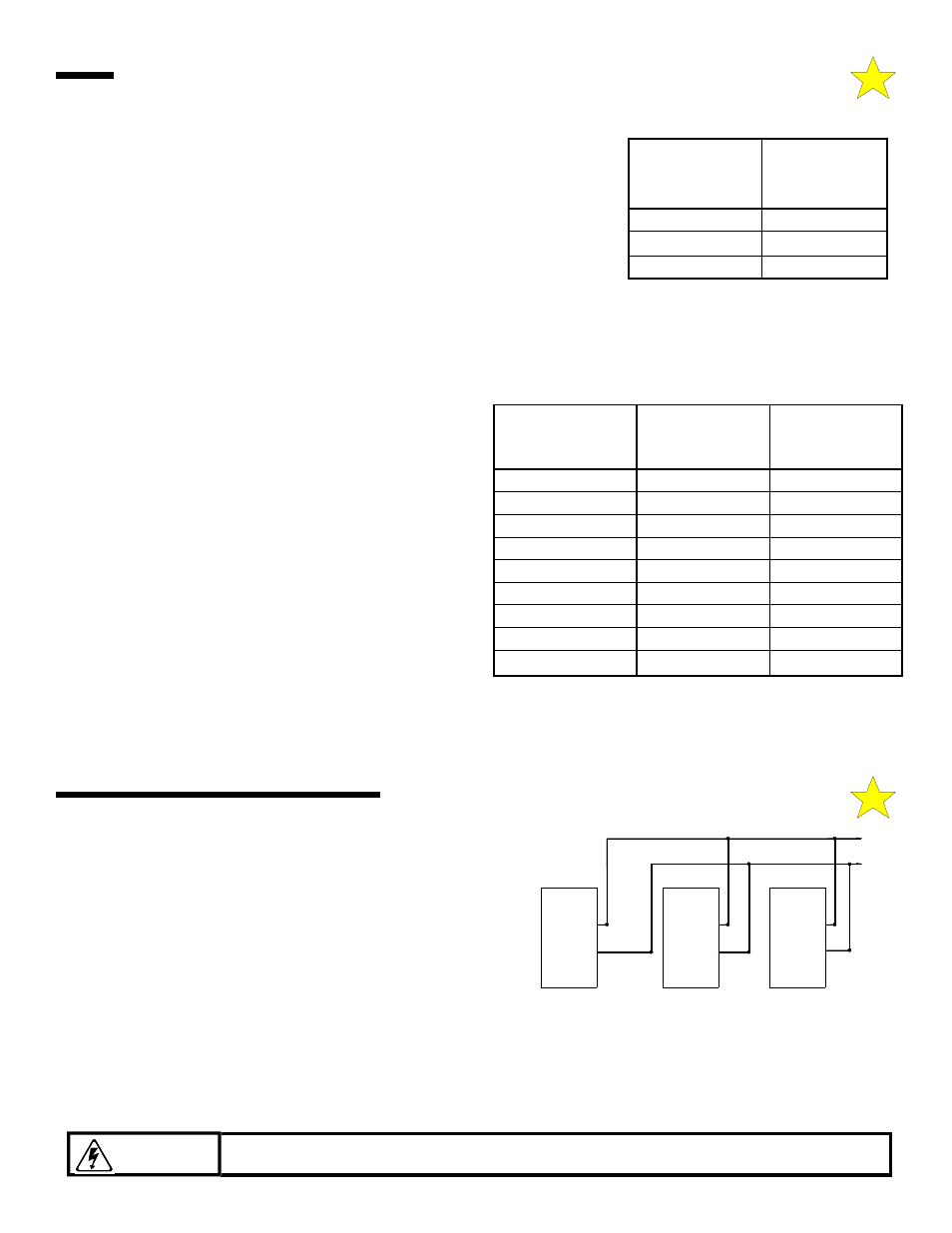

Page 3 of 4 P/N 106547 REV D
The 831E receiver may be used with many different Allstar transmitters. The information below indicates how to set the coding
switches in the various transmitters and the 831E receiver.
I F YOU ARE USING A 8831 OCS - ECONOMY OR 831 STANDARD
TRANSMITTER :
Exactly match all 8 code switches in the transmitter and receiver. The code switches
may be set in any random pattern of +, - and 0.
I F YOU ARE USING A 8831C OCS - ECONOMY OR 733 STANDARD
TRANSMITTER :
These transmitters are used to control up to 3 different doors. This is accomplished by setting the selector switch on the transmitter to
either A, B & C and setting the #6 coding switch in the 831E receiver .
Start coding by exactly matching all 8 code switches in the transmitter and the receivers. The code switches may be set in any random
pattern of +, 0 and - positions. Next, in receiver A, set code switch #6 to the + position; In receiver B set code switch # 6 to the 0
position; In receiver C set code switch # 6 to the - position. The table to the right shows the switch positions.
I F YOU ARE USING A 639 STANDARD TRANSMITTER :
This transmitter is used to control up to 9 different doors. This is
accomplished by setting the selector switch on the transmitter to
either 1, 2, 3, 4, 5, 6, 7, 8 or 9 and setting the #7 and #8 coding
switches in the 831E receiver.
Start coding by exactly matching all 8 code switches in the
transmitter and receivers. The code switches may be set in any
random pattern of +, 0 and - positions. Next, in receiver 1, set
code switch #7 to + and code switch #8 +; In receiver 2, set code
switch #7 to + and code switch #8 to 0. Continue setting the
codes in the 831E receivers as shown in the table.
I F YOU ARE USING A 53S STANDARD TRANSMITTER :
This transmitter is used to control up to 27 different doors. This is
accomplished by setting the selector switches to either A, B or C
and either 1, 2, 3, 4, 5, 6, 7, 8 or 9 and setting the #6, #7 and #8
coding switches in the 831E receiver.
Start coding by exactly matching all 8 code switches in the transmitter and receiver. Next, in receiver A1, set code switch #6 to +, set
code switch #7 to + and code switch #8 to +; In receiver A2, set code switch #6 to +, set code switch #7 to + and code switch #8 to 0.
Continue setting the codes in the 831E receivers, using both tables shown above.
TRANSMITTER
A-B-C Selector
Switch Position
RECEIVER
Coding Switch
#6
A +
B 0
C -
TRANSMITTER
1 - 9 Selector
Switch Position
831 RECEIVER
Code Switch #7
831 RECEIVER
Code Switch #8
1 + +
2 + 0
3 + -
4 0 +
5 0 0
6 0 -
7 - +
8 - 0
9 - -
Master/Slave systems are recommended for installations in which
receivers must be mounted less than ten feet apart. When two or more
receivers are mounted close together there is a potential for receiver
cross-talk. Cross-talk will cause one or more of the receivers to
function poorly (or not at all). In Master/Slave systems, the Master
receiver accepts the transmitted signal and passes it to the Slave
receivers through a pair of wires connecting the receivers. The RF
section of the Slave receivers are disabled to prevent cross-talk. Up
to 15 Slave receivers may be connected to a Master receiver. Master/
Slave units are specially ordered from the Factory.
The individual receivers are wired according to the instructions on
page 2. In addition, the Data and Data Common wires must be connected as follows (refer to Figure
z 4):
•
Connect the YELLOW wire (data) from the Master receiver to the YELLOW wire from the Slave receiver(s).
•
Connect the WHITE wire (common) from the Master receiver to the WHITE wire from the Slave receiver(s).
The coded switches in the individual receivers are set in the same manner as described above.
DISCONNECT POWER AT FUSE BOX AND DOOR OPENER BEFORE WIRING
PERMANENTLY TO PREVENT ELECTROCUTION.
WARNING
COMMERCIAL RECEIVER & TRANSMITTER CODING INSTRUCTIONS
MASTER/SLAVE WIRING INSTRUCTIONS
MASTER SLAVE #1 SLAVE #2
DATA
DATA COMMON
DATA
DATA COMMON
TO
A
DDI
TI
O
N
A
L
SL
AVE
UN
IT
S
Figure 4
