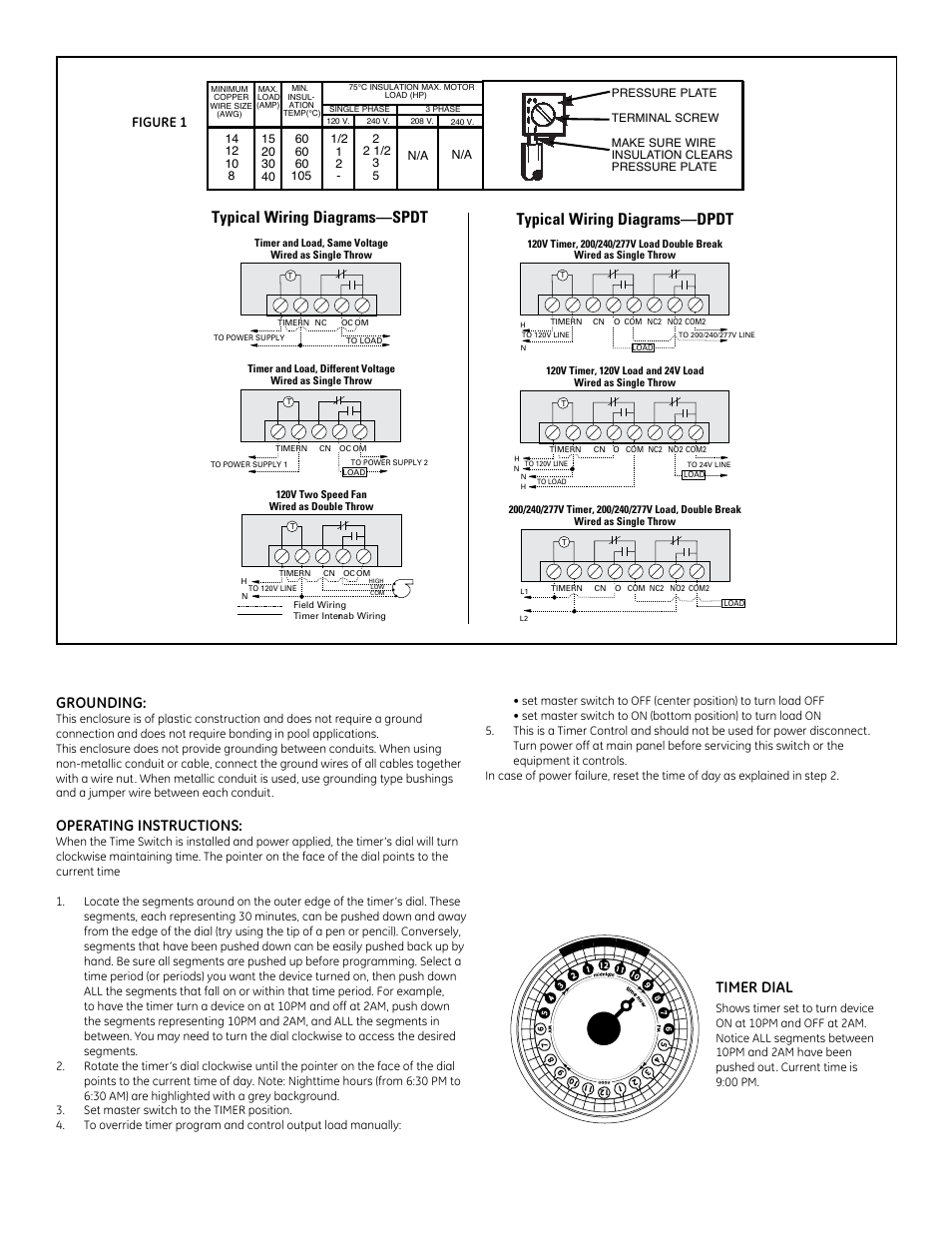

Typical wiring diagrams—dpdt, Typical wiring diagrams—spdt, Grounding – GE Box-Timer GE Time Switch 15251 15252 and 15253 User Manual
Page 2: Operating instructions, Timer dial, Figure 1
