GE ZISB360DX - Manual (Page 4)

1/4"
1/2"
3/4"
1"
1-1/4"
1"
3/4" Overlay
Panel
(Nominal Size)
Stainless Steel
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Door
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim

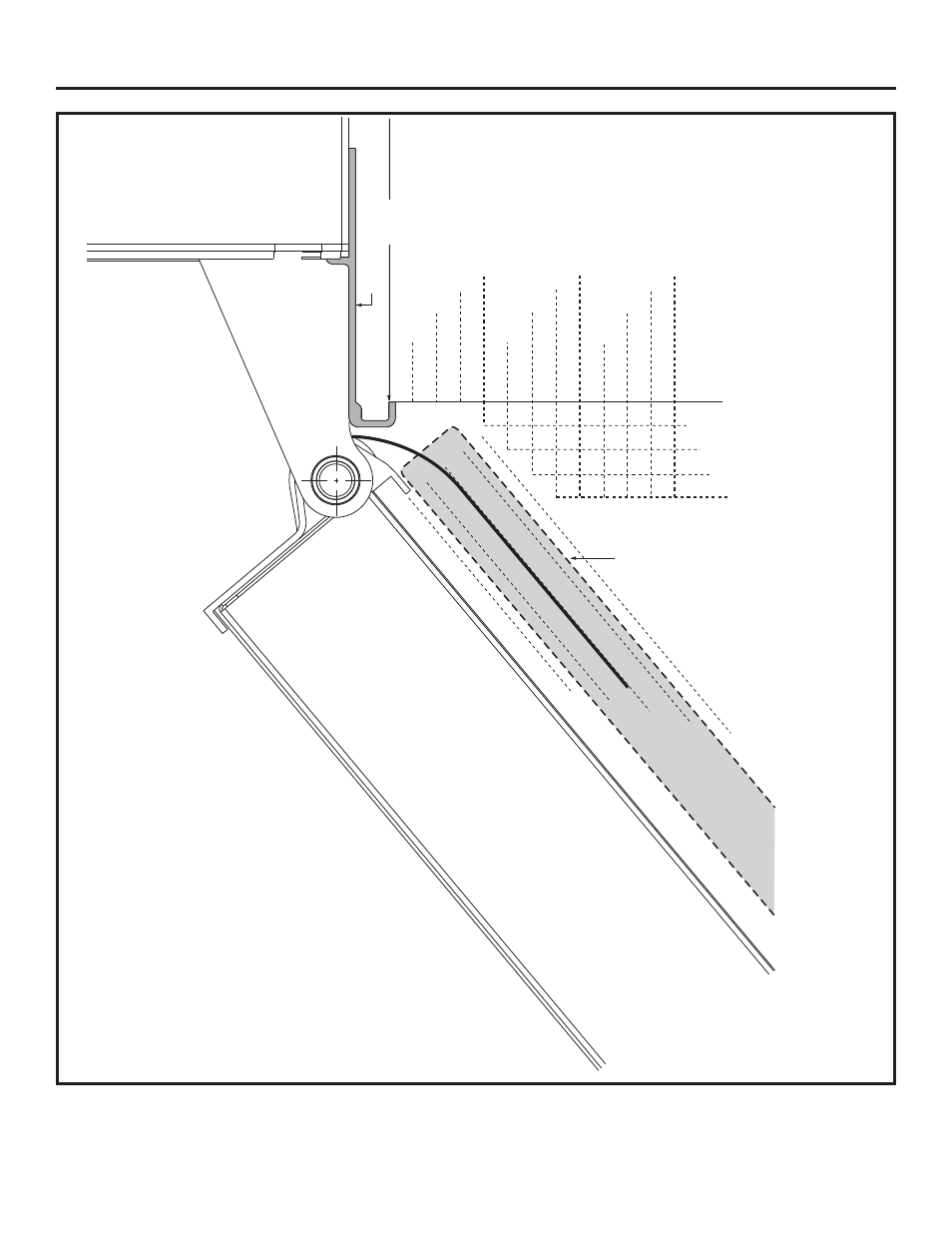

Design Guide
Top View
130° DOOR SWING
(factory setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS:
Dispenser models are supplied with two
dispenser trims, one to fit framed panels
and one for overlay panels. Dispenser trim
fit to the custom panel depends on correct
panel thickness. Framed panels must be
µQRPLQDO2YHUOD\SDQHOVVKRXOGEH
constructed as shown to accomplish a total
µWKLFNQHVV6HHSDJHVDQGIRUGHWDLOV
4
Frameless Cabinets: 7KHFDVHWULPRYHUODSV
FDELQHWVDWWKHWRSDQGVLGHV7KHUHIRUH
frameless cabinets may require filler strips
to prevent interfeence with cabinet door
VZLQJ7KHRSHQLQJPXVWDOORZIRUILOOHUVWULSV
