Page 6

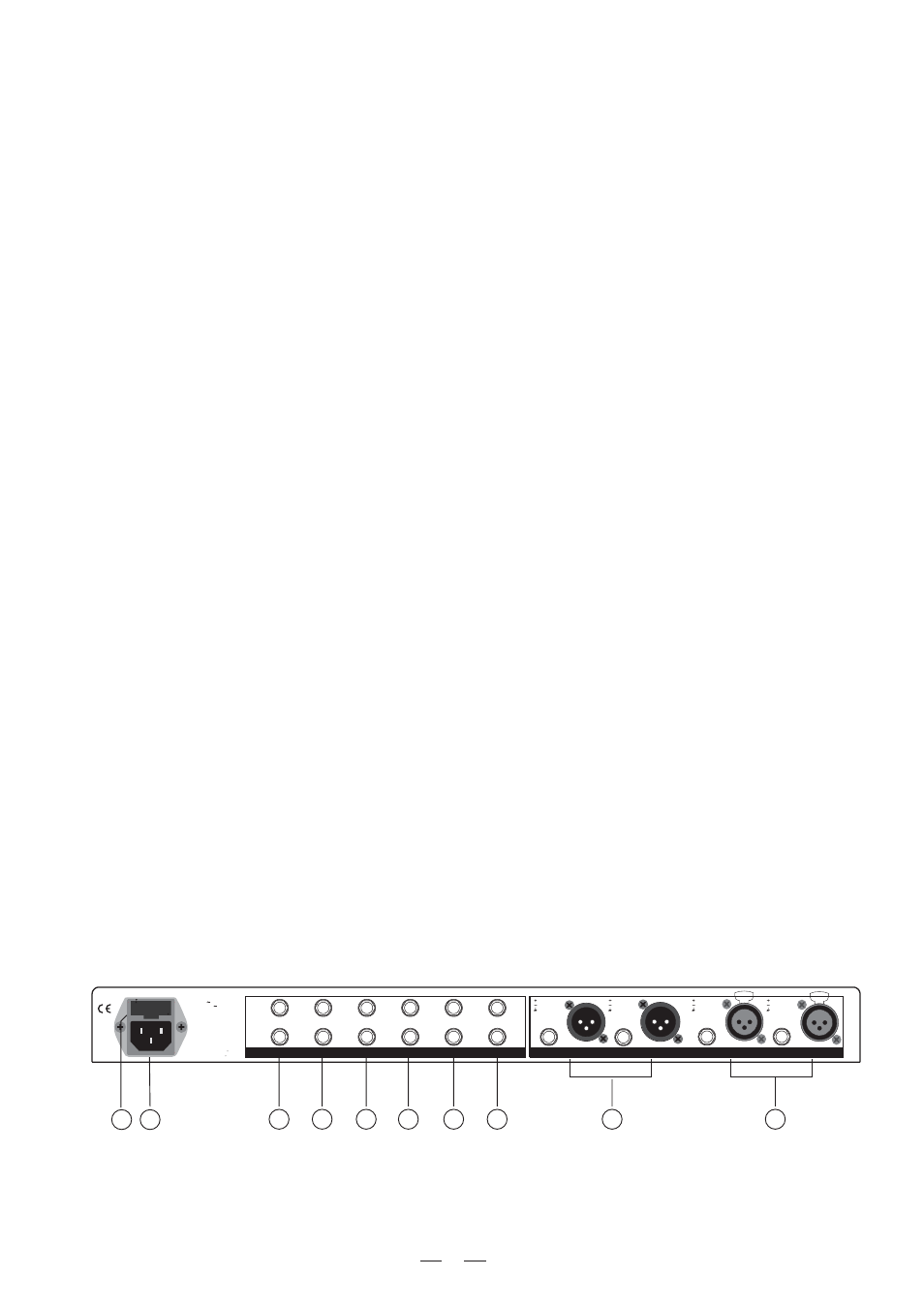

3.2 The Rear Panel

PUSH

NEW

TIDE

PUSH

NEW

TIDE

MAIN INPUT LEFT

MAIN INPUT RIGHT

MAIN OUTPUT RIGHT

MAIN OUTPUT LEFT

HEADPHONE OUT 6

HEADPHONE OUT 5

HEADPHONE OUT 4

HEADPHONE OUT 3

HEADPHONE OUT 2

HEADPHONE OUT 1

TIP:
L- CHANNEL
RING:
R- CHANNEL
MIN. LOAD
100OHMS

A101

AC INPUT

95-120V

60Hz

or 210-240V

50Hz

Rated Power
Consumption 40W

FUSE:

210-240V: T315mAL 250VAC
95-120V: 500mA 250VAC
REPLACE FUSE WITH
CORRECT TYPE ONLY

Apparaten skall anslutas
till jordat uttag nar den
ansluts till ett natverk

TIP/PIN 2
RING/PIN 3
SLEEVE/PIN 1

110-120V

220-240V

1. Direct In Input

Main Input on the rear panel, this input presents the priority character.

2. Input Gain Control

This control sets the input signal level coming from Main In.

3. Input Level Meter

-24dBu to +18dBu.

4. Aux In Input

Balanced Control.

5. L Mute Switch

The Left input signal will be muted if this switch is activated.

6. R Mute Switch

The Right input signal will be muted if this switch is activated.

7. Mode Switch

This push-button switches the operational mode between Mono and Stereo. Press this button for Mono appli-
cation, and the Mono LED (8) lights up.

8. Mono LED

lights up.

9. Headphone Out Output

signal of the individual channel.

10. Balanced Control

This control is used to set the proportion between the signal coming from Aux In Input and Main/Direct In Input.

11. Output Gain Control

This control is used to adjust the output level of the individual channel.

12. Output Level Meter

to avoid any distortion.

The Direct In Input is used to feed the external program sources into the main signal path, comparing to the

This meter tells you the level of the main input signal coming from Main/Direct In, and the range goes from

The Aux In Input is used to feed the further input signal, which can be mixed with the Main/ Direct In signal via

This LED informs you the current operational mode. Press the Mode Switch (7) for Mono application, this LED

In parallel with the Headphone Output on the rear panel, this 1/4" TRS phone jack is also used to output the

This 4-digit meter tells you the level of the output signal, and the range goes from -24dBu to +12dBu. In case
of the Clip LED lights up, please turn down the Input Gain Control or/and the individual Output Gain Control
