ZIC360NX
GE Monogram ® 36" Built-In Bottom-Freezer Refrigerator

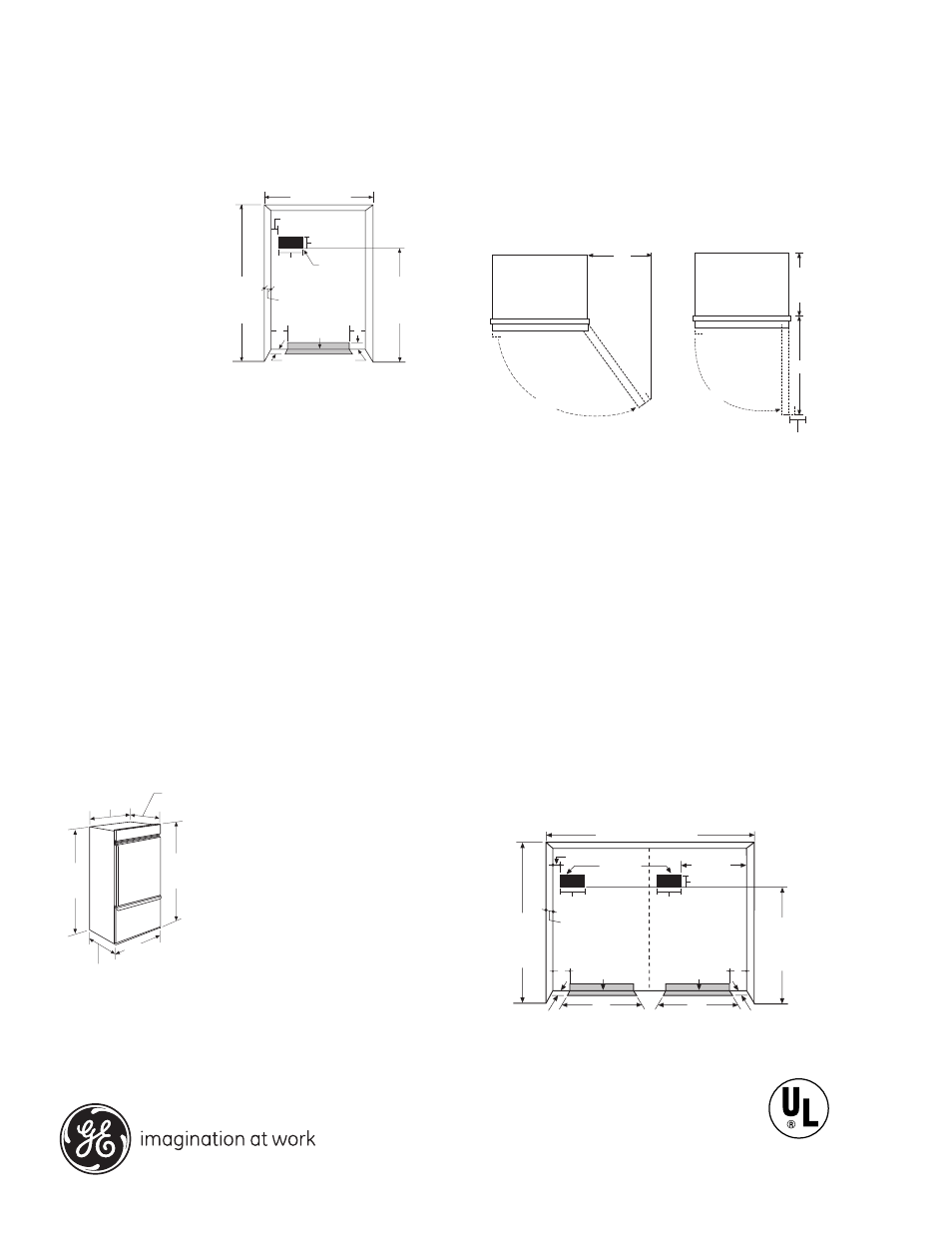

Dimensions and Installation Information (in inches)
The Installation Space
The finished cutout width
must be 35-1/2".
Product Dimensions
* Shipping Height. The
refrigerator can be adjusted to
fit into a cutout that is 83-1/2"
min. to 84-1/2" max. height. The
top case trim at the front is 1/2"
higher and will overlap upper
cabinetry or soffit. Use leveling
legs and wheels for a maximum
1" height adjustment.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinetry, depending on your installation.
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
All models are equipped with an automatic icemaker. The
water line can enter the opening through the floor or back
wall. Route GE SmartConnect ™ Kit or 1/4" O.D. copper tubing
between the cold water line and the water connection
location at the front of the refrigerator. The installation of an
easily accessible shut-off valve in the water line is required.
696Dia7
6"
Wall View
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
75" From
Floor to Bottom
of Electrical
Area
10"
5"
3 1/2"
5"
3 1/2"
24" Cutout Depth
35-1/2"
Finished Width
2-5/16"
Note: Icemaker
water connection
is at the front.
Cold Water
Supply
605Dia20
25"
Min. to
Wall
130 °
130 ° Door Swing
23-7/8"
Behind
Frame
36-3/4"
605Dia21
90 °
90 ° Door Swing
4" Min. to Wall
5" Min. for Professional Models
2-5/16"
75" From
Floor to Bottom
of Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
71-1/2" Finished Width
Electrical
5"
3-1/2"
24" Cutout
Depth
Water Supply
Wall View
696Dia8
24-3/16"
26"
6"
10" 10"
Water Supply
26"
5"
3-1/2"
Door Swing Clearances
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
Allow 25" minimum clearances for a full 130° door swing.
Allow 15" for pan removal.
• 4" minimum clearance is required when the door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
ZUG2, ZUGSS2 Unified Grille Panel Kit
• If you are installing two refrigerators side by side, the
installation space must be 71-1/2" wide.
Note: Additional cutout width may be required when side
panels are used. Add side panel thickness to the finished
cutout to calculate rough-in width.
• The water and electrical locations for each product must
be located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is
recommended for each product.
429Dia9
*84" From
Floor to
Top Frame
35"
Case Width
*83-1/2"
at
Rear
Case Depth:
25-3/8" Framed Models
25-3/4" Stainless Steel Models
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models
28-11/16" Professional Models
36"
Frame to Frame Width
