GE Monogram ® 36" Built-In French-door Bottom-freezer
Product Specification Created 2/14
Trimmed refrigerators are designed to be
customized with decorative panels Field-
installed custom door and grille panels
are required.
1/4” Framed Panels:
You may install 1/4"- thick custom panels
from your cabinet manufacturer. The
decorative panels slide into the factory-
installed trim.
Maximum total panel weight:
• Fresh food door panel – 30 lbs.
• Freezer drawer panel – 28 lbs.
• Grille panel – 11 lbs
3/4” Overlay Panels:
For a more custom appearance, overlay
panels may be installed on trimmed models.
The overlay panel must be secured to a
1/4"-thick backer panel which slides into
the trim. A spacer panel 0.10" thick must
be placed between the overlay and backer
panels.
Center each panel over the other. Assemble
the panels with glue and screws. Screws
must be countersunk into the backer panel.
NOTE: Left-to-right offset is not always
equal to top-to-bottom offset.
Maximum total panel weight:
• Fresh food door panel – 30 lbs.
• Freezer drawer panel – 28 lbs.
• Grille panel – 11 lbs
Door Handles:
The supplied handles can be adjusted to
accommodate both framed or overlay
panels. Custom handles of your choice,
supplied by your cabinet maker, can also be
installed.
ZKHPSS1: Professional Tubular Stainless
Steel Handle designed to fit 3/4" overlay
panels. Kit includes one handle. Order 3 kits
for bottom-freezer refrigerators from your
Monogram suppplier.
NOTES

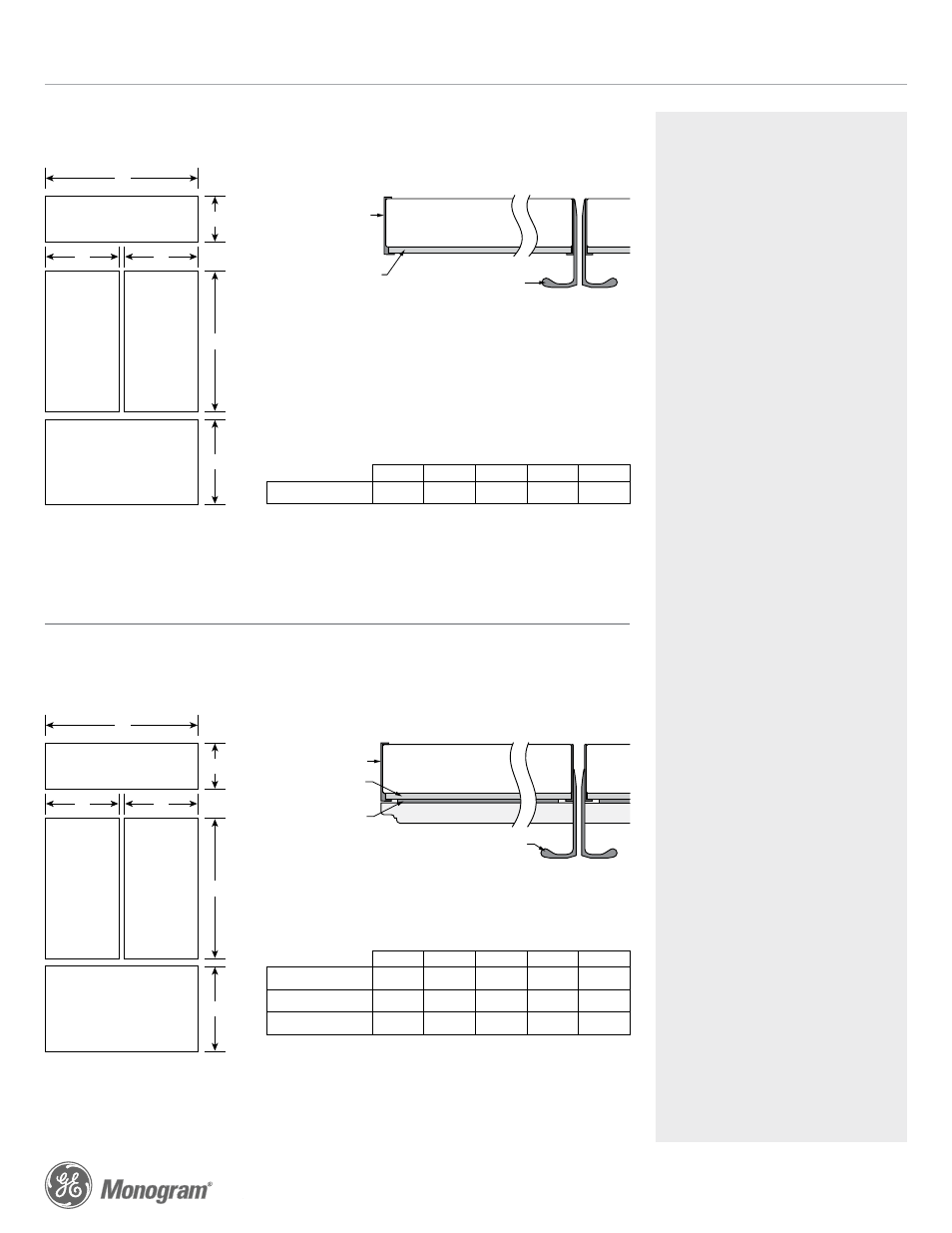

3/4" OVERLAY PANEL DIMENSIONS
Grille Panel
Fresh
Food
Panel
Fresh
Food
Panel
Freezer Drawer Panel
A
B
C
D
E E
Grille Panel
Fresh
Food
Panel
Fresh
Food
Panel
Freezer Drawer Panel
A
B
C
D
E E
Door
1/4" Framed Panel
Supplied Handles
Trim
A B C D E
1/4" Framed Panel 33 7/8" 8 7/8" 46 1/16" 21 7/8" 16 3/8"
A B C D E
1/4" Framed Panel 33 7/8" 8 7/8" 46 1/16" 21 7/8" 16 3/8"
.10" Framed Panel 32 1/2" 7 5/8" 44 11/16" 20 1/2" 15"
3/4" Overlay Panel 34 1/8" 9" 46 5/16" 22" 16 5/8"
Door
1/4" Backer Panel
.10" Spacer Panel
Supplied Handles
Trim
3/4" Overlay Panel
PANEL ASSEMBLY CROSS SECTION
PANEL ASSEMBLY CROSS SECTION
PANEL DIMENSIONS
PANEL DIMENSIONS
.25" + .10" + .75" = 1.10" Total Panel Thickness
