Zisp420dxss ge monogram, 42" built-in side-by-side refrigerator, Zisp420dxss

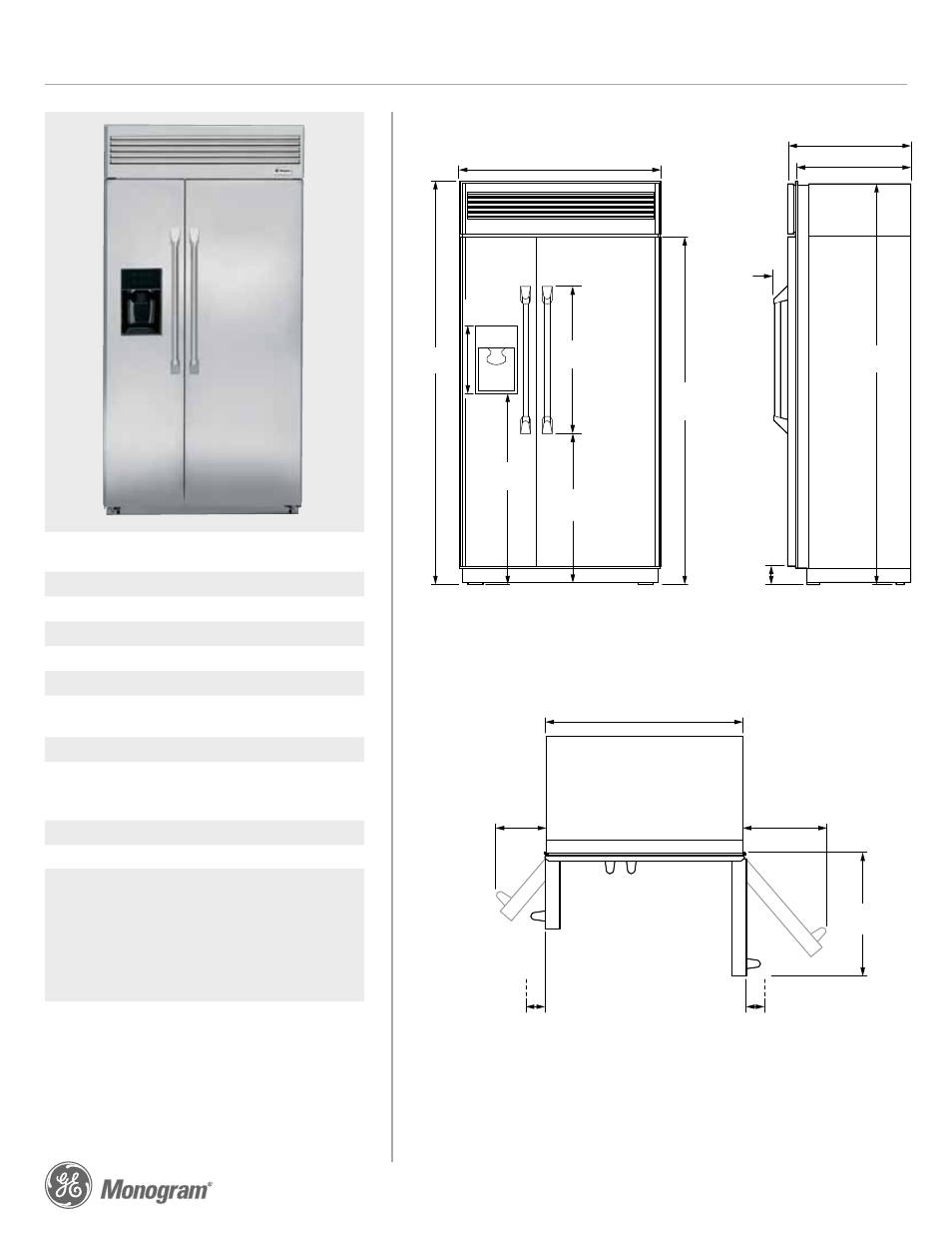

OVERALL DIMENSIONS
Product Specification Created 3/14
ZISP420DXSS
GE Monogram
®
42" Built-In Side-by-Side Refrigerator
42"
(106.7)
*84"
(213.4)
*72 1/4"
(183.5)
2 3/4"
(7.0)
*3 1/4"
(8.3)
SIDE VIEW
FRONT VIEW
25 3/4"
(65.4)
23 7/8"
(60.7)
*83 1/2"
(
212.1)
13 1/2"
(34.3)
30 1/2"
(77.5)
*39 1/2"
(100.3)
*30 1/4"
(76.8)
41"
(104.2)
Case width
** Allow
13"
(33.0) min
clearance for 130˚
door swing
** Allow
5"
(12.7) min
clearance to a wall for 90˚
door swing
** Allow
5"
(12.7) min
clearance to a wall for 90˚
door swing
** Allow
19"
(48.3) min
clearance for 130˚
door swing
ZISP420DXSS
26 5/8"
(67.6)
TOP VIEW
* Shipping height. Use leveling legs and wheels for maximum
1" height adjustment from shipping height.
** These refrigerators are equipped with a 2-position door stop. The factory-set 130° door
swing can be adjusted to 90° if clearances to adjacent cabinets or walls is restricted. Allow
full 130° door swings for pan removal. If the 90° door stop position is used, pan access is
maintained, but pan removal is restricted.
42"
(106.7)
*84"
(213.4)
*72 1/4"
(183.5)
2 3/4"
(7.0)
*3 1/4"
(8.3)
SIDE VIEW
FRONT VIEW
25 3/4"
(65.4)
23 7/8"
(60.7)
*83 1/2"
(
212.1)
13 1/2"
(34.3)
30 1/2"
(77.5)
*39 1/2"
(100.3)
*30 1/4"
(76.8)
41"
(104.2)
Case width
** Allow
13"
(33.0) min
clearance for 130˚
door swing
** Allow
5"
(12.7) min
clearance to a wall for 90˚
door swing
** Allow
5"
(12.7) min
clearance to a wall for 90˚
door swing
** Allow
19"
(48.3) min
clearance for 130˚
door swing
ZISP420DXSS
26 5/8"
(67.6)
TOP VIEW
* Shipping height. Use leveling legs and wheels for maximum
1" height adjustment from shipping height.
** These refrigerators are equipped with a 2-position door stop. The factory-set 130° door
swing can be adjusted to 90° if clearances to adjacent cabinets or walls is restricted. Allow
full 130° door swings for pan removal. If the 90° door stop position is used, pan access is
maintained, but pan removal is restricted.
ATTENTION ELECTRICIAN:
A 115 volt 60Hz., 15 or 20 amp power supply
is required. An inidividual properly grounded
branch circuit or circuit breaker is recommended.
Install a properly grounded 3-prong electrical
receptacle recessed into the back wall.
SPECIFICATIONS
Overall Width
42" (91.44 cm)
Overall Height
84" (213.4 cm)
Overall Depth
25 3/4" (65.41 cm)
Door Clearance
26 5/8" (67.6 cm)
Cutout Width
41 1/2" (105.4 cm)
Cutout Height
83 1/2" - 84 1/2"
(212.1 - 214.6 cm)
Cutout Depth
24" (61 cm)
Plumbing Requirements
1/4" OD copper
tubing or GE
SmartConnect kit
Shipping Weight
750 lb
Dimensions in parentheses are in centimeters unless otherwise noted.
Actual product dimension may vary due to manufacturing tolerances.
