ZDBI240WII – GE Monogram ® Beverage Center

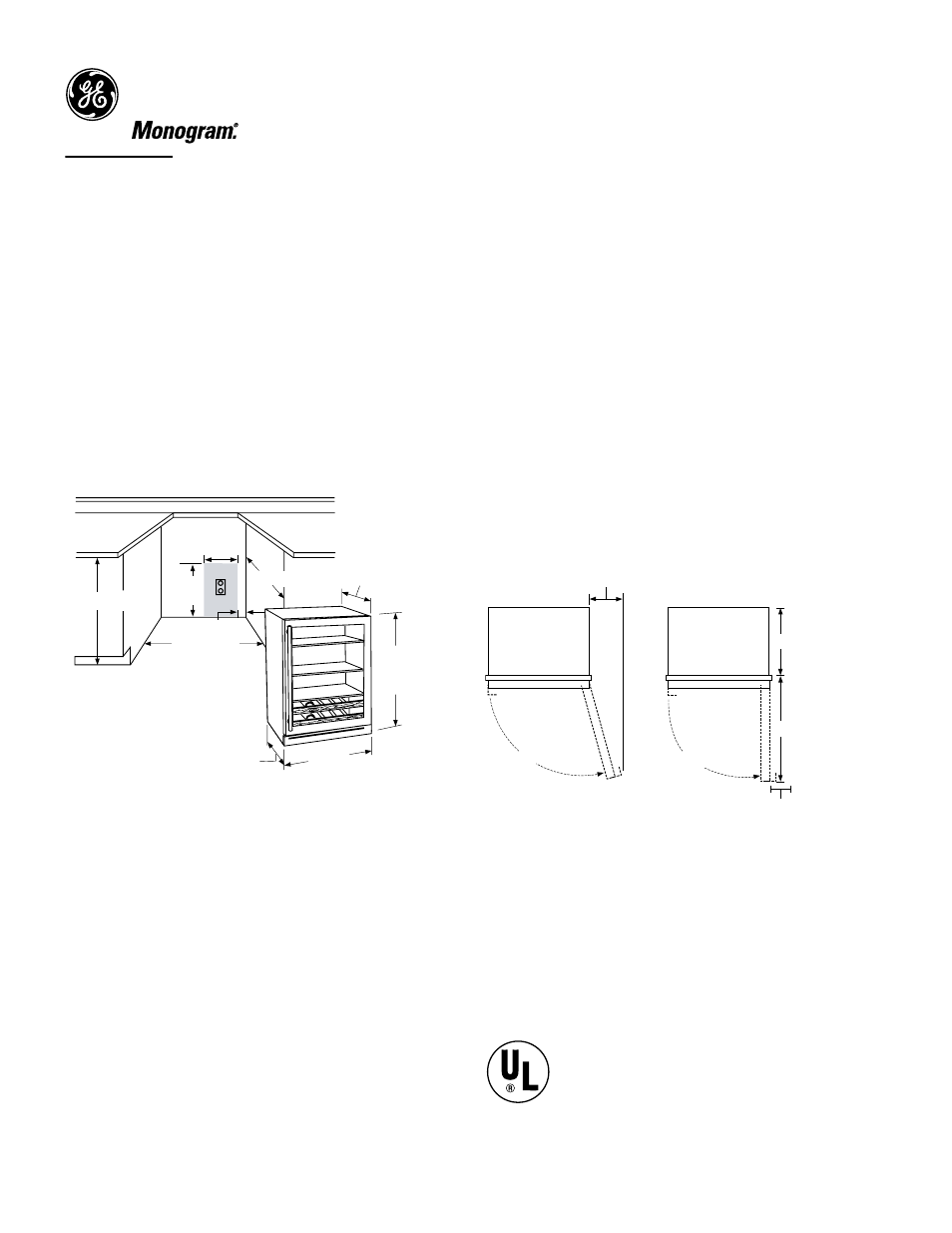

Dimensions and Specifications (in inches)
Installation Space
The Monogram ® Beverage Center may be installed beneath a
countertop or can be used free-standing.
• If installing between frameless cabinets, a 1/2"-wide filler strip
or side panel may be required. The filler strip will act as a spacer
between the door case and adjacent cabinet and will prevent
interference with cabinet door swing. The width of the opening
must include filler panels.
Note: When installed, the door should project forward 1" of
adjacent 24"-deep cabinets.
Location Requirements
All Monogram Refrigeration Modules may be closed in on the top
and sides as long as the front is unobstructed for air circulation and
door swing.
• Do not install these products where the temperatures will go
below 55°F (13°C) or above 90°F (32°C).
• Do not install where they will be subject to direct sunlight,
heat or moisture.
• These products are not designed to be stacked one over the other.
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
GEAppliances.com or call GE Answer Center ®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
34-1/2"-35"
24" Min.
23-3/4"
25-1/2"
Including
Handle
23-3/4"
1-1/2"
Locate Outlet
9"
Max.
10-1/2"
23-3/4" Min.
34-1/4"
to
34-3/4"
Specification Created 10/07
120039
Side-by-Side Installation
For a complete refreshment center, install a Monogram Wine Reserve
and Beverage Center together.
• Products must operate from separate properly grounded
receptacles.
Door Swing Clearances
All Monogram Refrigeration Modules are factory set for a 110°
door swing.
When installed in a corner:
• Allow the minimum door swing clearances shown.
• The minimum clearance shown at 90° will allow full extension
of drawers and shelves.
A
Minimum to Wall
110 °
110 ° Door
Swing
21-5/8"
23-5/8"
B
Minimum to Wall
90 °
90 ° Door
Swing
10"
Minimum to Wall
4"
Minimum to Wall
Electrical
A 120V, 60Hz, 15 or 20 amp power supply is required. An individual
properly grounded branch circuit or circuit breaker is recommended.
Install a properly grounded 3-prong electrical recessed into the
back wall as shown. Electrical must be located on rear wall as shown.
Note: GFCI (ground fault circuit interrupter) is not recommended.
