GE ZIBS240PSS User Manual
Product clearances

ZIBI240PII – GE Monogram Bar Refrigerator with Icemaker Module
(Custom panel required)
ZIBS240PSS – GE Monogram Bar Refrigerator with Icemaker Module
(Stainless steel)
For answers to your Monogram,
®
GE Profile
™
or
GE
®
appliance questions, visit our website at
GEAppliances.com or call GE Answer Center
®
service, 800.626.2000.
R
Listed by
Underwriters
Laboratories

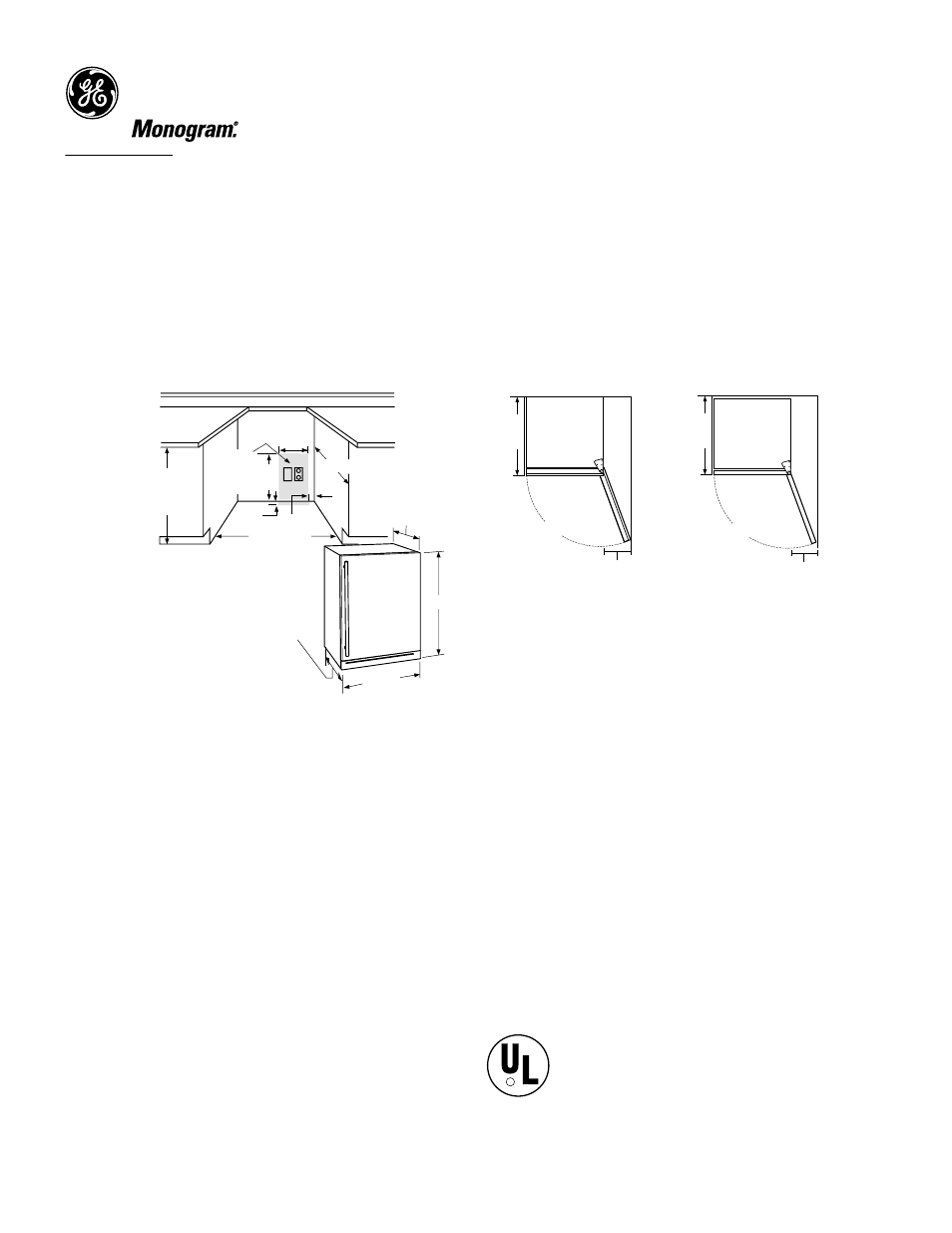

Dimensions and Specifications (in inches)
Installation Space
The cutout depth must be 24"
The cutout dimensions shown allow for a full door swing and
access to the pull-out racks when installed as a built-in.
• The Bar Refrigerator with Icemaker can be free-standing.
• The stainless steel model ZIBS240PSS can be installed flush
with standard cabinetry. ZIBI240PII with custom panel will
project forward 1-3/4" of adjacent 24" deep base cabinets.
• A water line must be installed for icemaker operation.
Additional Specifications:
• A 120 volt 60Hz., 15 or 20 amp power supply is required. An
individual property grounded branch circuit or circuit breaker is
recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall as shown. Electrical
must be located on rear wall as shown. Note: GFI (ground fault
interrupter) is not recommended.
Product Clearances
16" Minimum
110˚
Wall
24"
Cabinet
14" Minimum
110˚
Wall
24"
Cabinet
All models are factory set for a 110° door swing.
For a minimum 90° door swing:
• Allow 4" min. clearance to wall on the hinge side for Stainless
Steel models.
• Allow 4-1/2" min. clearance to wall on the hinge side for models
with a custom panel and custom handle.
For a full 110° door swing:
• Allow 14" min. clearance to wall on the hinge side for Stainless
Steel models.
• Allow 16" min. clearance to wall on the hinge side for models with
a custom panel and custom handle.
Stainless Steel
Models
Models with a Custom
Door Panel
34-1/2"
to
35"
24" Min.
23-3/4"
34-1/2"
23-3/4" Stainless Steel
Models
24-7/8" Framed Models
1-1/2"
1/2"
Locate Outlet
Water and
Electrical
Locations
9"
Max.
10-1/2"
Depth Including
Handle:
26" Stainless Steel
Models Only
23-3/4" Min.
Note: If installing between frameless
cabinets, a 1/2" wide filler strip or side panel
may be required. The filler strip will act as a
spacer between the door case and adjacent cabinet
and will prevent interference with cabinet door swing.
The width of the opening must include filler panels.
Specification Created 3/04
120034
