ZKD910BF/SF/WF – GE Monogram 27" Warming Drawer

For answers to your Monogram,

®

GE Profile

or

GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center

®

service, 800.626.2000.

R

Listed by
Underwriters
Laboratories

26"

Including Handle

23-1/4"

26-3/4"

10-1/2"

9"

1"

Drawer

Open

27"

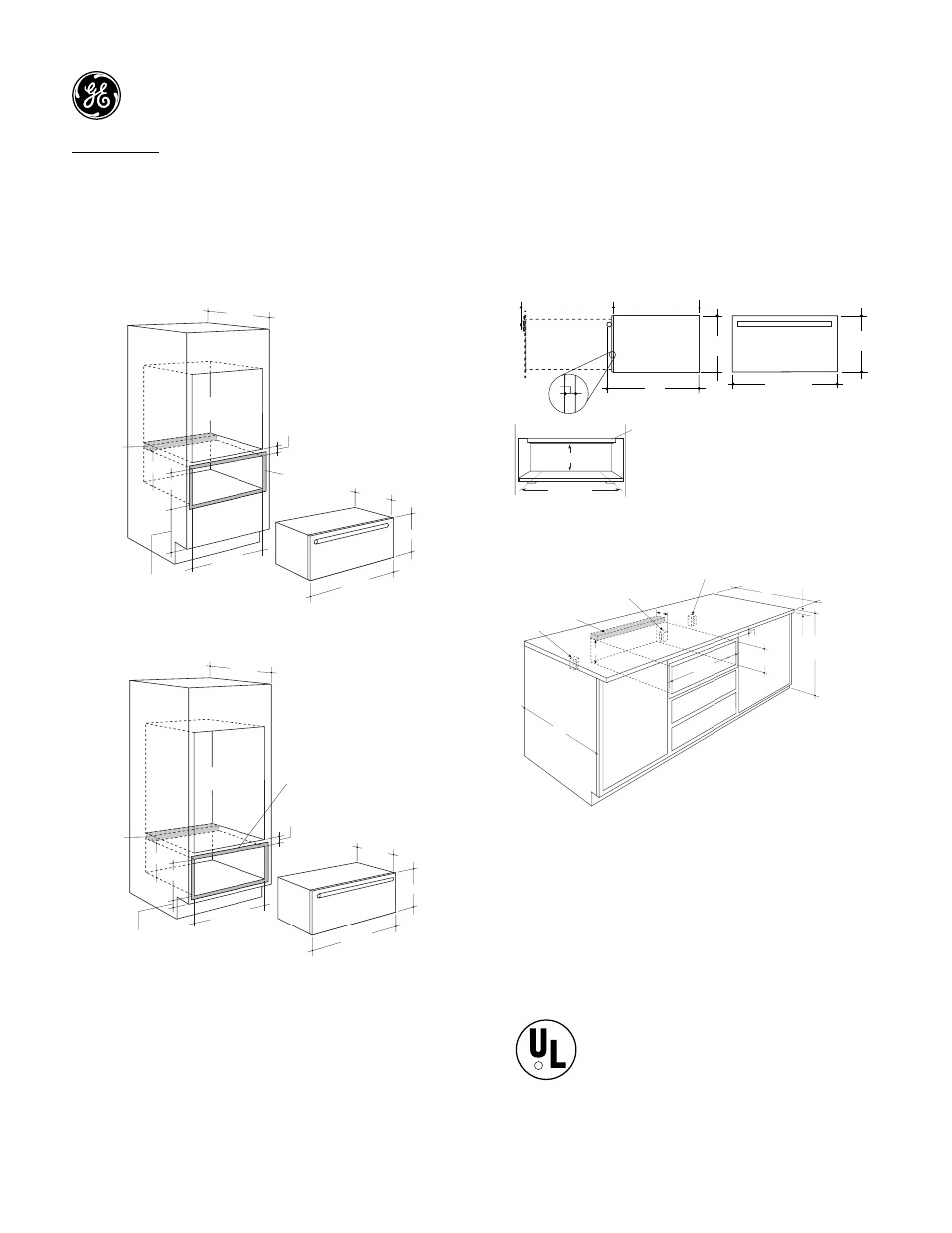

Warming Drawer Dimensions (in inches)

1" Min. Above Toekick or Adjust
to Oven Installation Height

25-1/2"

2" Min.

Allow 5/8"
Overlap on
All Sides

26-3/4"

10-1/2"

23-1/4"

23-1/2" Min.

Inside

Oven

Cutout

9-1/4"

2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floor to
Bottom of
Block

9"

Single Oven Installation (in inches)

25-1/2"

2" Min.

Allow 5/8"
Overlap on
All Sides

26-3/4"

10-1/2"

23-1/4"

23-1/2" Min.

Inside

1" Min. Above Toekick

Oven

Cutout

2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floor to
Bottom of
Block

9"

9-1/4"

Double Oven Installation (in inches)

Important Installation Note:
Must provide anti-tip brace at the back of the cabinet and at the
top of the cutout.

Optional Accessories:
ZXD27B
– 1/4” wood panel trim kit

Electrical
Outlet 16" Max.
From Left Side.

23-1/2" Min.

25"

1-1/2" Cabinet Top

36"

Countertop

Height

2" Min.*

25-1/2"

9-1/4"

Electrical Outlet 42" Max.

From Right Side.

Electrical Outlet
Flush With Side
of Cabinet 7" Max.

9"

Install
2x4 or 2x2
Anti-Tip Block
Against Rear
Cabinet Wall
9" From Floor
to Bottom
of Block

7"

Undercounter Installation (in inches)

Note: When installing warming drawer with a cooktop, allow a
2” minimum from cooktop burner box bottom to top of cut-out.

Note: Additional clearance between cutouts may be required.
Check to be sure that oven supports above the Warming
Drawer location do not obstruct the required interior 23-1/2”
depth and 9-1/4” height.

9"

2x4 or 2x2

Runners or Solid Bottom

Install
2x4 or 2x2
Anti-Tip Block
Against Rear
Cabinet Wall
9" From Floor
to Bottom
of Block
