GE ZISB360DX - Manual (Page 4)

Product Specification Created 2/14
Trimmed refrigerators are designed to be
customized with decorative panels. Field-
installed custom door and grille panels are
required.
1/4” Framed Panels:
You may install 1/4"- thick custom panels from
your cabinet manufacturer. The decorative
panels slide into the factory- installed trim.
Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer drawer panel – 53 lbs.
• Grille panel – 18 lbs
3/4” Overlay Panels:
For a more custom appearance, overlay
panels may be installed on trimmed models.
The overlay panel must be secured to a
1/4"-thick backer panel which slides into
the trim. A spacer panel 0.10" thick must
be placed between the overlay and backer
panels.
Center each panel over the other. Assemble
the panels with glue and screws. Screws must
be countersunk into the backer panel.
NOTE: Left-to-right offset is not always equal
to top-to-bottom offset.
Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer drawer panel – 53 lbs.
• Grille panel – 18 lbs
Door Handles:
The supplied handles can be adjusted to
accommodate both framed or overlay panels.
Custom handles of your choice, supplied by
your cabinet maker, can also be installed.
ZKHPSS1: Professional Tubular Stainless Steel
Handle designed to fit 3/4" overlay panels.
ZKHSS2: European tubular stainless steel
handle designed to fit 3/4" overlay panels.
Kits include one handle. Order 2 kits for side-
by-side refrigerators from your Monogram
suppplier.
NOTES

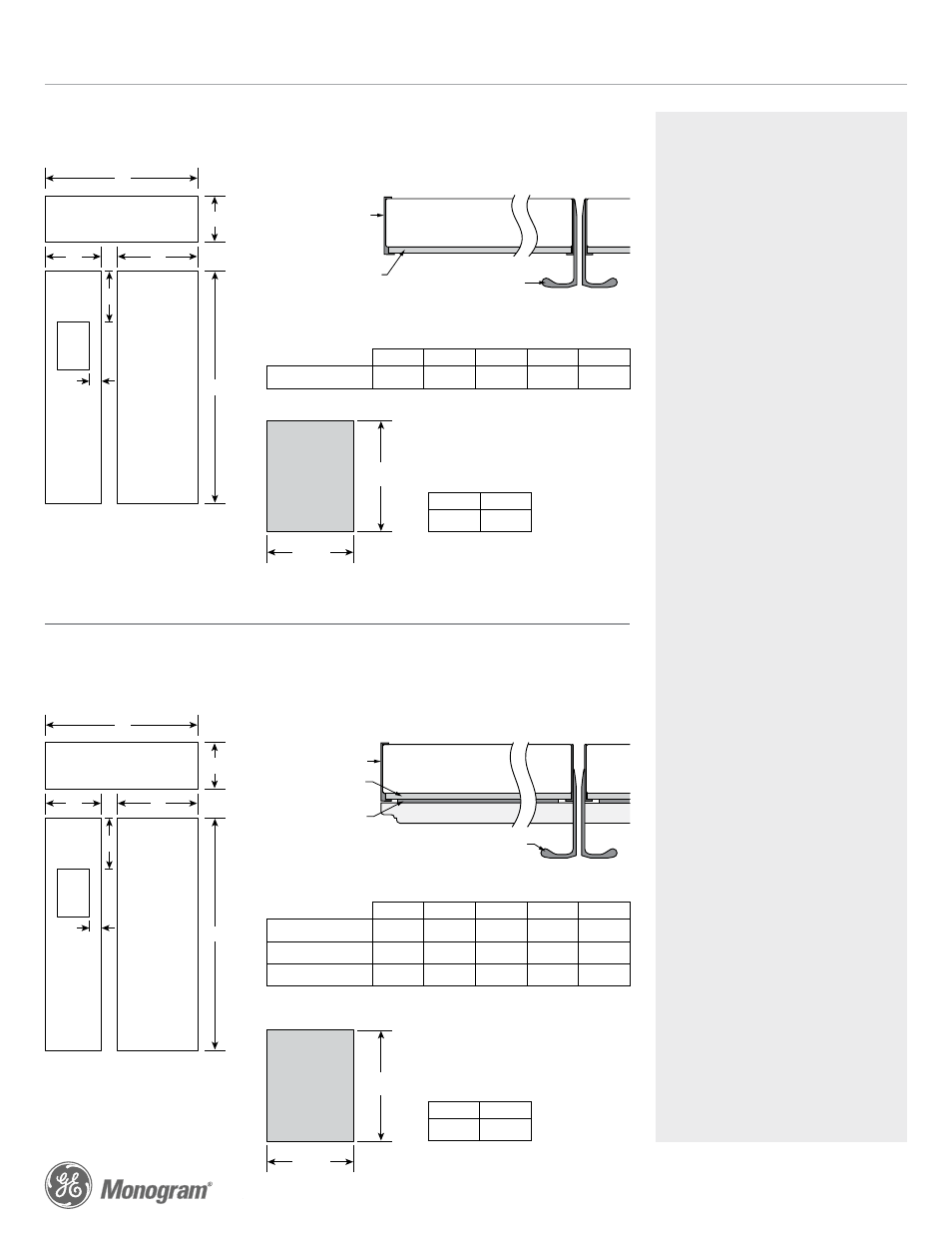

1/4" FRAMED PANEL DIMENSIONS
3/4" OVERLAY PANEL DIMENSIONS
Door
1/4" Framed Panel
Supplied Handles
Trim
PANEL ASSEMBLY CROSS SECTION
PANEL ASSEMBLY CROSS SECTION
F G
17 13/16" 3 1/8"
F G
17 15/16" 3 1/4"
.25" + .10" + .75" = 1.10" Total Panel Thickness
A B C D E
1/4" Backer Panel 33 7/8" 9" 68 3/8" 14 9/16" 18 9/16"
.10" Spacer Panel 33" 8 3/8" 67" 13 1/4" 17 1/4"
3/4" Overlay Panel 34 1/8" 9 1/4" 68 5/8" 14 13/16" 18 13/16"
PANEL DIMENSIONS
* DISPENSER CUTOUT
POSITION
DISPENSER CUTOUT
POSITION
* Cut the dispenser opening after the backer, spacer
and overlay panels have been assembled.
Door
1/4" Backer Panel
.10" Spacer Panel
Supplied Handles
Trim
3/4" Overlay Panel
PANEL DIMENSIONS
A B C D E
1/4" Framed Panel 33 7/8" 9" 68 3/8" 14 9/16" 18 9/16"
Grille Panel
Freezer
Panel
Dispenser
Cutout
Fresh
Food
Panel
A
B
C
F
G
D E
Grille Panel
Freezer
Panel
Dispenser
Cutout
Fresh
Food
Panel
A
B
C
F
G
D E
ZISB360DX GE Monogram ® 36" Built-In Side-by-Side Refrigerator
Dispenser
Cutout
9 5/8"
(24.4)
15 3/8"
(39.1)
Dispenser
Cutout
9 5/8"
(24.4)
15 3/8"
(39.1)
