240371
Specification Revised 12/13
Listed by
Underwriters
Laboratories
PEB1590DM
GE Profile
™
Series 1.5 Cu. Ft. Countertop Convection/Microwave Oven

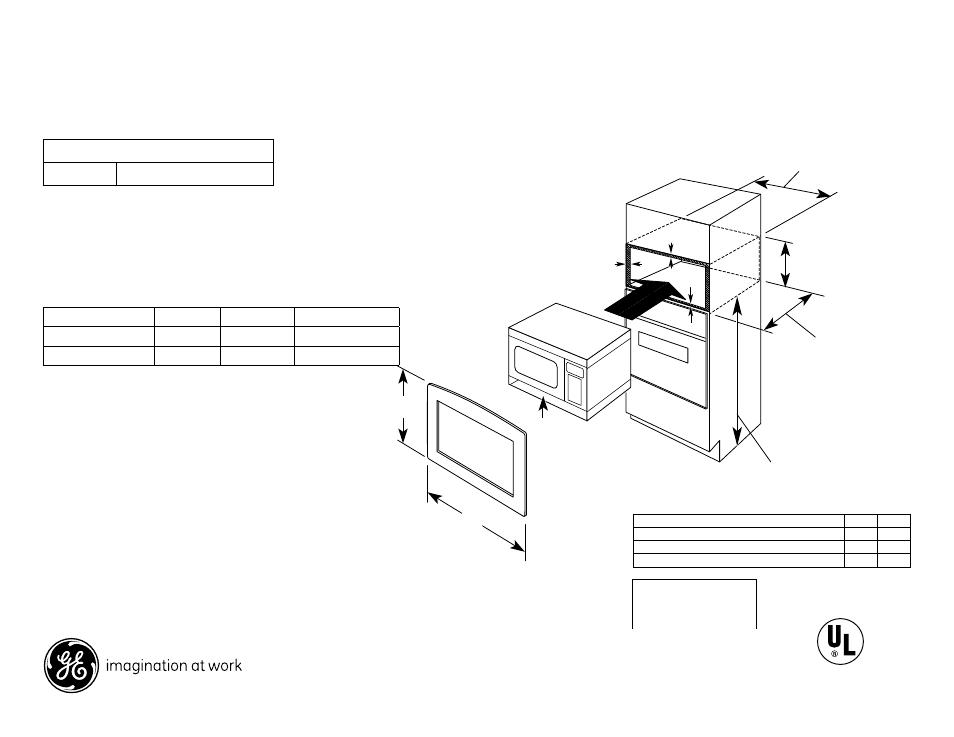

Dimensions and Installation Information (in inches)
24" ± 1/8"
18-3/4" ± 1/8"
36" MIN
.*
23" MIN.
receptacle
in cabinet
21-1/2" MIN.
receptacle
outside
cabinet
21"
Z
Bracket
Trim
Kit
Cabinet overlap requirements
30" 27"
A - Overlap of trim kit over top of cabinet
1-1/2" 1-1/2"
B - Overlap of trim kit over bottom of cabinet 1-3/8" 1-3/8"
C - Overlap of trim kit over sides of cabinet 2-7/8" 1-3/8"
Note:
Allow an additional inch
of clearance beyond trim
frame on all sides.
B
A
C
*For ADA compliance, the microwave must be
installed no higher than 37".
Accessory Trim Kit Z
JX1530 29-3/4"
JX1527 26-7/8"
Exterior Dimensions (in inches)
W x H x D
22-5/8 x 14-3/4 x 19-7/8
Optional Accessory Trim Kits for GE Microwave Ovens
(Available at additional cost)
For a custom built-in appearance, these kits allow built-in
installation of the countertop microwave oven into a wall or
cabinet alone and are U.L. approved for installation over a
GE single electric wall oven. These kits should not be installed
over a gas wall oven.
Note: 120V, 60-cycle, grounded power receptacle location
optional on back within cabinet opening.
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product/kit for current
dimensional data.
Accessory trim kits
"Z"
Max Height
Trim Kits
30" Deluxe
29-3/4"
21"
JX1530DMWW/BB
27" Deluxe
26-7/8"
21"
JX1527DMWW/BB
