4.CONTROL PANEL(Only for electronic models)
Caution: If air conditioner is shut off, wait a minimum of three minutes before restarting
Control Functions
Air Exchanger: Circulates fresh air and helps remove stale air when in the open position. Maximum air circulation and
cooling occur when in the closed position.
MODE button
Each time MODE button is pressed, the operation mode is changed in sequence:
COOLING
FAN ONLY ENERGY SAVING COOLING
NOTE: After setting the mode, allow 3 minutes before switching to another mode.
FAN SPEED button
Used to select fan speed in sequence auto, low, medium and high.
TIMER button
Used to set or cancel timer operation.
When the unit is in operation, you can set OFF TIMER. When the unit is off, you can set ON TIMER.
Timer setting range is 0 to 24 hours.
If the OFF TIMER is set, the timer LED displays the remaining time to turn off the unit for only 12 seconds,
then LED shifts to display set temperature.
If you press TIMER button within the 12 seconds, OFF TIMER will be canceled.
If the ON TIMER is set, the timer LED displays the remaining time to turn on the unit.
If you want to cancel ON TIMER, press TIMER button.
ON/OFF button
The air conditioner will be started when it is energized or will be stopped when it is in operation, if you press
this button.
Button
F
HR

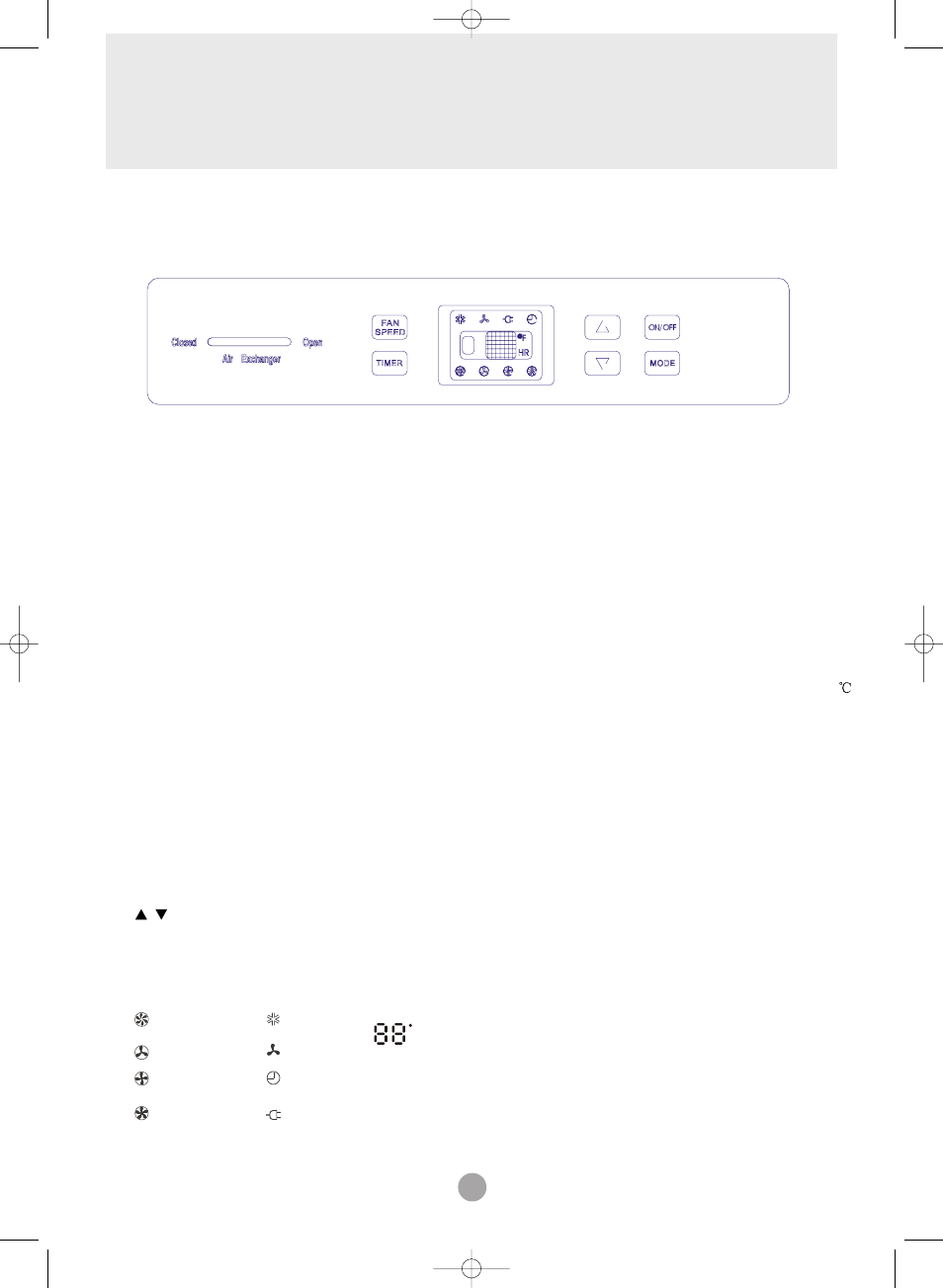

Indication symbols of LED on control panel:
High fan speed
Medium fan speed
Low fan speed
Auto fan speed Cooling
Fan only
Display set temp
Display set timer
Timer
The above LED lights are shown when the relevant mode is in use.
Energy-saving
NOTE: Temperature setting range is from19 (66 ) to 31 (88 ).
Used to set room temperature in COOLING mode or used to set time in TIMER mode.
If the two keys are pressed at the same time,the temperature LED display will alternate between
and .
9
OPERATING INSTRUCTIONS
Used to set room temperature in COOLING mode or used to set time in TIMER mode.
If the two keys are pressed at the same time, the temperature LED display will alternate between °C and °F.
NOTE: Temperature setting range is from 19°C (66°F) to 31°C (88°F).
TIMER button
Used to set or cancel timer operation.
When the unit is in operation, you can set OFF TIMER. When the unit is off, you can set ON TIMER.
Timer setting range is 0 to 24 hours.
