© 2006 Altec Lansing Professional 1000 W. Wilshire Blvd., Suite 362 Oklahoma City, Oklahoma 73116
Phone: 1.405.848.3108 Fax: 1.405.848.3217 Email: [email protected]
Revision 01 Oct 2006
100
95
90
85
80
75
20 50 100 200 500 1k 2k 5k 10k 20k
105
dB-SPL

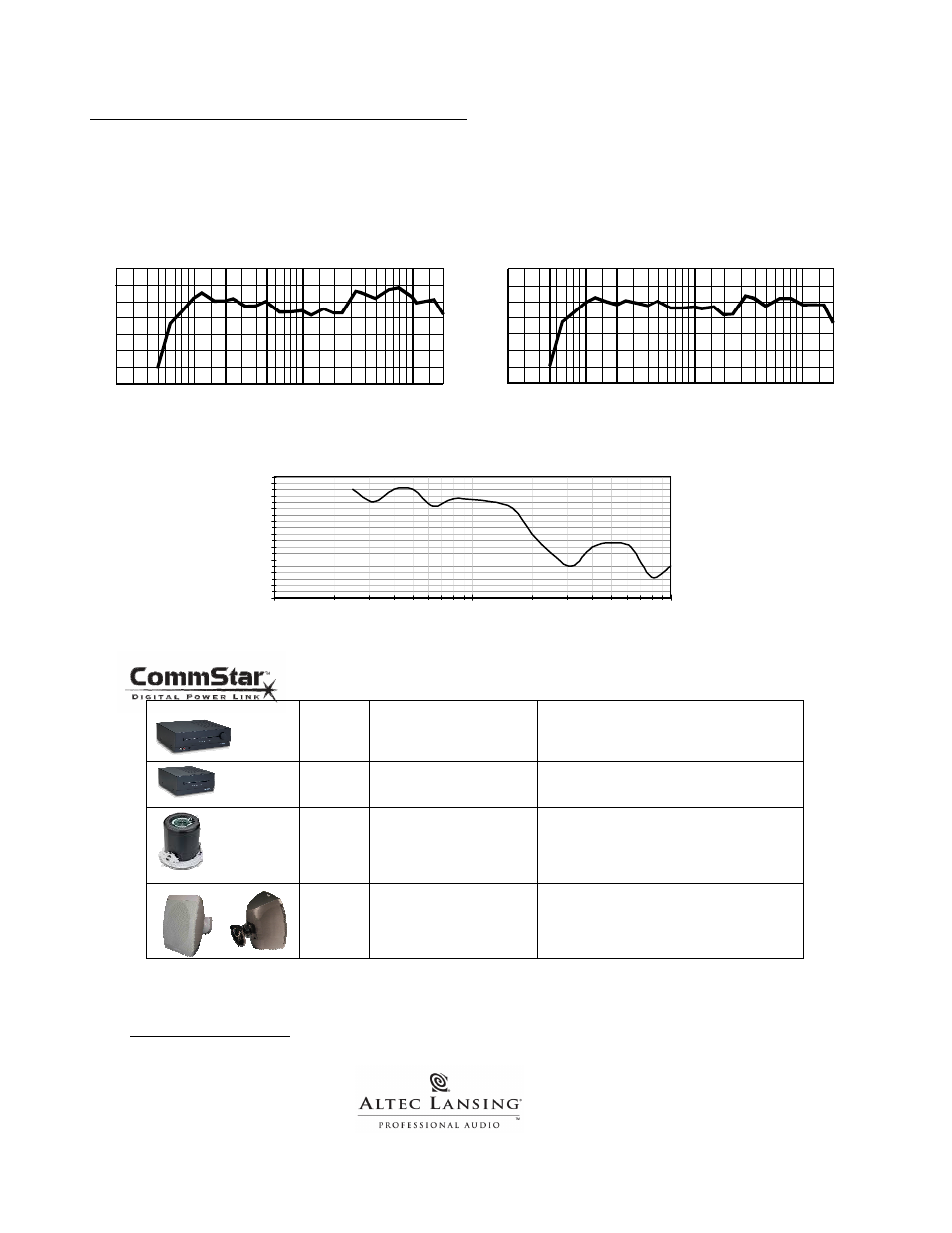

MusicPath Frequency Response: CV6 + SM1 Source Master Frequency Response: CV6 + C1 Power Converter
100
95
90
85
80
75
105
dB-SPL
20 50 100 200 500 1k 2k 5k 10k 20k
ARCHITECT’S AND ENGINEER’S SPECIFICATIONS
The loudspeaker system shall be a high fidelity type consisting of a 6.5 inch/165mm Duplex® loudspeaker component with 1 inch/25.4mm
high frequency soft-dome tweeter. A DSP processor providing electronic crossover and equalization shall be internal to the loudspeaker
enclosure. Also internal to the loudspeaker enclosure shall be a dual channel power amplifier. The signal input shall be AES-EBU digital
audio delivered via standard Cat5 cable terminated with RJ45 connectors. The loudspeaker system shall have an operating bandwidth of 65
Hz - 18 kHz (+5 dB) and be capable of delivering 107 dB peaks when measured at a distance of one meter. The loudspeaker shall have
nominal conical coverage angle of 110 degrees. The dimensions shall be 13 inches tall by 8.5 inches wide by 12.1 inches deep. The
loudspeaker system shall weigh 9.5 lbs./4.3 kg. The loudspeaker system shall be the Altec Lansing Professional model SV6.
Components and Accessories:
SM1 Source Master Accessories:
1RMK - Rack Kit
1RVC - Remote-Volume-Control
CAT5X258 - 8 x 25' CAT5 cables
C1 Power Converter Accessories:
1RMK - Rack Kit
1RVC - Remote-Volume-Control
2CV6 Powered
Ceiling Speaker
(pair)
Accessories:
2DG1W - Industrial Grille (pair)
2RG1G - Regressed Grille (pair) dark gray
2RG1W - Regressed Grille (pair) white
6Pring - Plaster Ring (six per package)
SV6 Powered Speaker
(includes wall bracket)
SV6G - dark gray
SV6W - white
Accessories:
1JMG - Ceiling Mount Bracket (dark gray)
1JMW - Ceiling Mount Bracket (white)
As we are continually striving to improve Altec Lansing products, specifications are subject to change without notice.
VISIT WWW.ALTECPRO.COM FOR
• Specification sheets in .pdf format. Download page 1 of the specification sheet for your submittals.
• One paragraph A&E Specifications in .doc format
Beamwidth
10
30
50
70
90
110
130
150
170
190
100 1000 10000
Frequency
D
e
g
re
e
s
