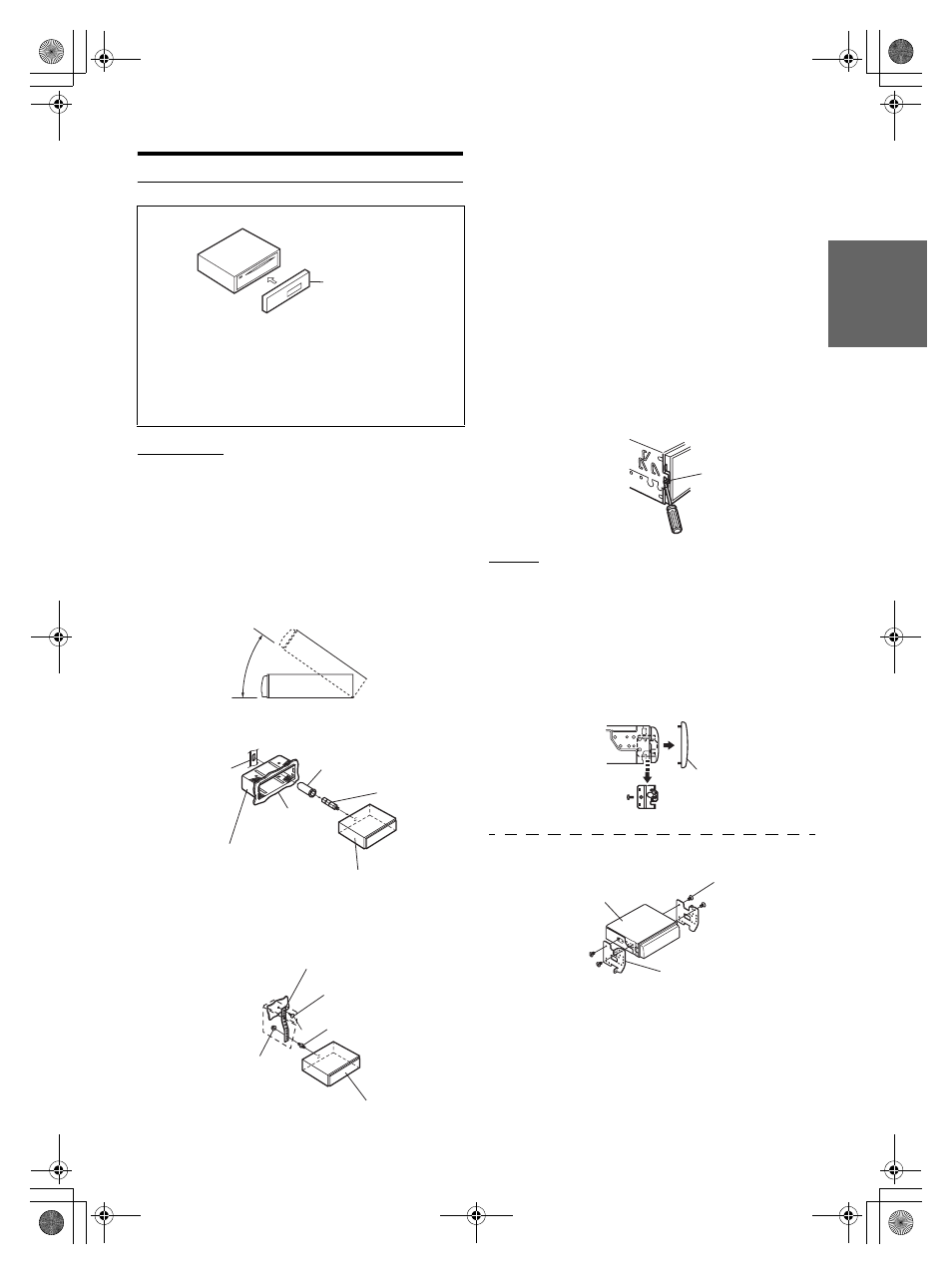

Installation
Accessory List
• Head unit ............................................................................1
• Power cable ........................................................................1
• FULL SPEED
TM Connection Cable...................................1
• Mounting sleeve.................................................................1
• Carrying case .....................................................................1
• Rubber Cap ........................................................................1
• Hex Bolt ..............................................................................1
• Screw (M5 × 8)....................................................................4
• Owner’s Manual .......................................................... 1 set
• The main unit must be mounted within 35 degrees of the horizontal
plane, back to front.
Removal
1. Remove the detachable front panel.
2. Use a small screwdriver (or similar tool) to push the
locking pins to the “up” position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.
3. Pull the unit out, keeping it unlocked as you do so.
Caution
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
1
Slide mounting sleeve from main unit (see
“Removal” on page 27). Slide the mounting sleeve
into the dashboard and fix it with the metal shackles.
2
Detachable
Front Panel
Less than 35°
Bracket
Rubber Cap
(Included)
Hex Bolt
(Included)
This Unit
Dashboard
Mounting sleeve
(Included)
∗
Metal Mounting Strap
Screw
Bolt Stud
This Unit
Hex Nut (M5)
When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of the CDE-9850Ri and
put the Rubber Cap on the hex bolt. If your vehicle
does not have the Mounting Support, reinforce the
head unit with the metal mounting strap (not
supplied). Connect all the leads of the CDE-9850Ri
according to details described in the CONNECTION
section.
• For the screw *, provide a proper screw to the chassis installing
location.
3
Slide the CDE-9850Ri into the dashboard. When the
unit is in place, make sure the locking pins are fully
seated in the down position. This can be done by
pressing firmly in on the unit while pushing the
locking pin down with a small screwdriver. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard. Install
the Detachable Front Panel.
Lock Pin
Face Plate
Screws (M5 × 8)
(Included)
This Unit
Mounting Bracket
