AT-FS238a/x and AT-FS238b/x Series Installation Guide
5

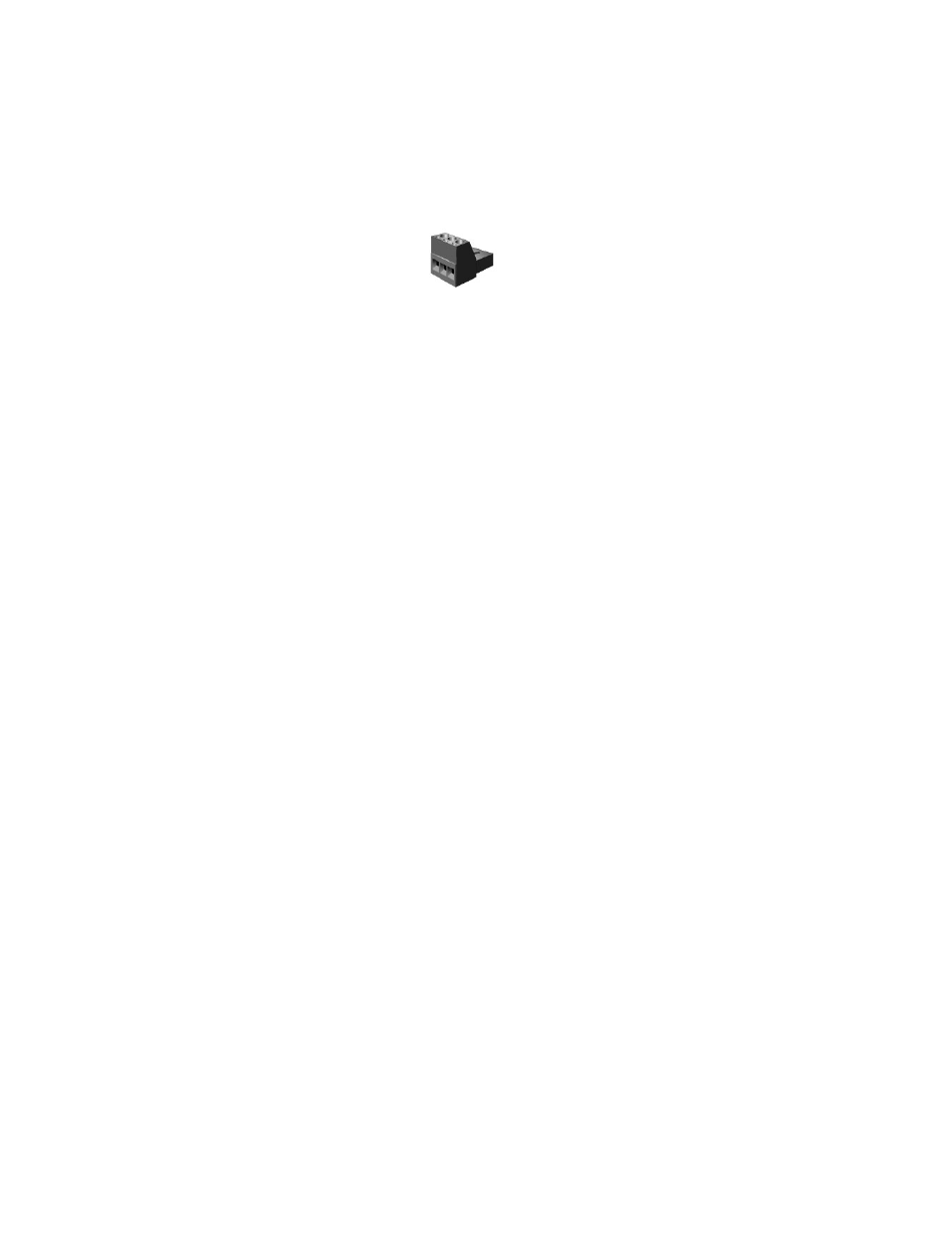

Figure 5 illustrates the power connector provided with the unit.
Figure 5 Power Connector for the 12-50VDC Version Converter
Key Features
The AT-FS238a/x and AT-FS238b/x Series Bridging Converters have the
following features:
❑
LEDs for unit and port status
❑
Auto MDI/MDI-X
❑
Mode selection button that toggles between Link Test, MissingLink ,
and Smart MissingLink
❑
DIP switches for configuring the ports
❑
Half- or full-duplex operation on both ports
❑
RJ-45 twisted pair connector
❑
SC fiber optic connector
❑
Data packet forwarding and filtering at full wire speed (10 Mbps to
100 Mbps, and 100 Mbps to 100 Mbps)
❑
Store and forward switching mode
❑
Automatic address learning and aging
❑
IEEE 802.3u compliant auto-negotiation
❑
External power adapter (depending on the model)
❑
For use on a desktop or in an AT-MCR12 chassis
