Page 22
3.
Pull up on the monitor display head (2) to remove it from the base.

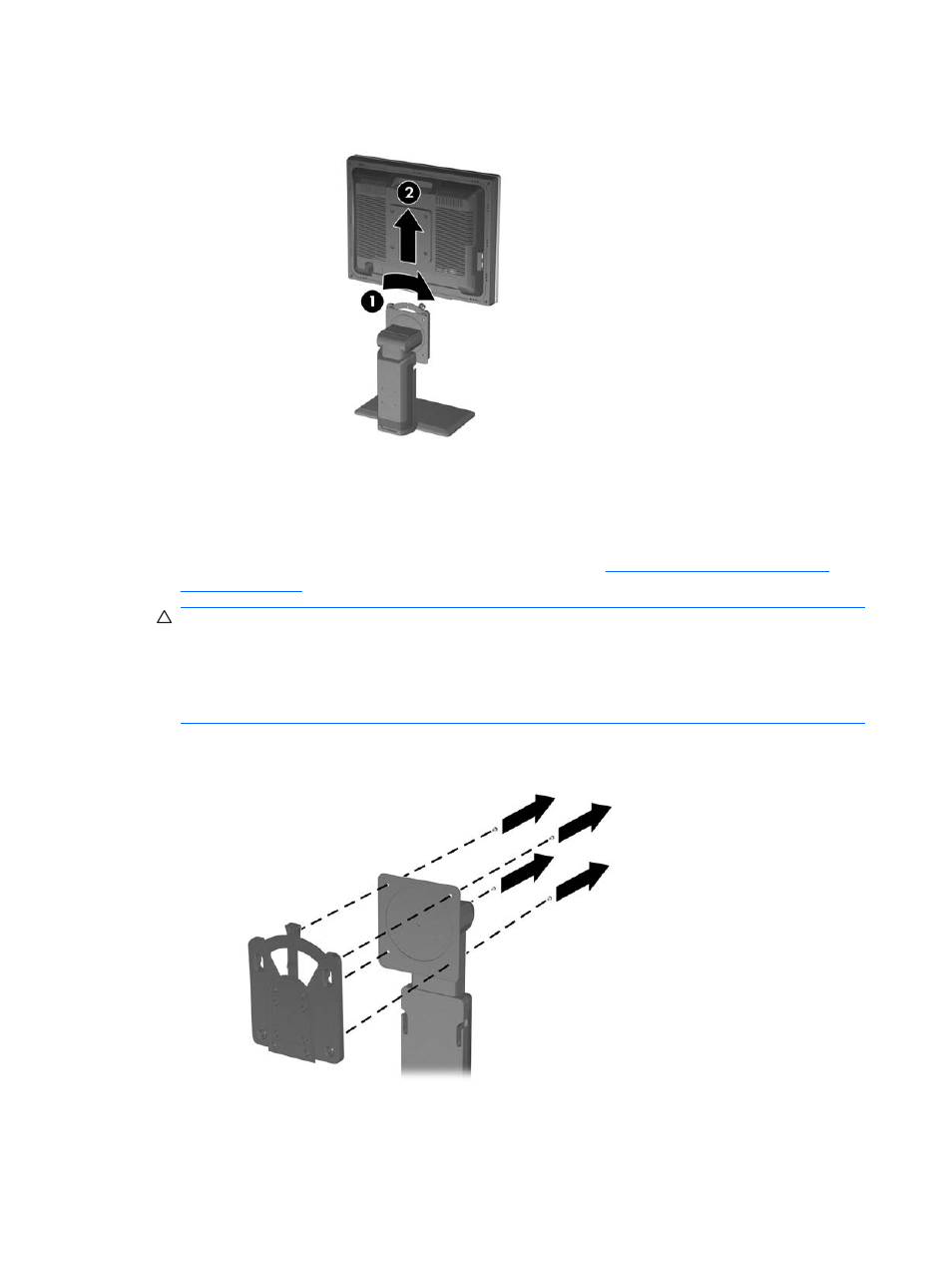

Figure 3-14
Removing the Monitor from the Pedestal Base
Mounting the Monitor
The HP Quick Release can be removed from the pedestal base and installed to a mounting fixture. It
allows you to quickly and securely attach the monitor panel to the mounting fixture.
1.
Remove the monitor panel from the pedestal base. Refer to
steps in the previous section.
CAUTION:
This monitor supports the VESA industry standard 100 mm mounting holes. To attach
a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long screws are
required (not provided with the monitor). Longer screws should not be used because they may
damage the monitor. It is important to verify that the manufacturer’s mounting solution is compliant
with the VESA standard and is rated to support the weight of the monitor display panel. For best
performance, it is important to use the power and video cables provided with the monitor.
2.
Remove the Quick Release from the pedestal base by removing the four screws.
Figure 3-15
Removing the HP Quick Release from the Pedestal Base
