SECTION 2
– PREPARING TO INSTALL
UNPACKING THE HydroFix
™ HRU
The
HydroFix™ HRU Kit is a universal kit in that it is used for all
Category I ACR EPIRBs. The kit components that are required to
replace the HRU in a particular model will vary with the EPIRB bracket
you are servicing. The content of the universal HRU kit includes the
following:

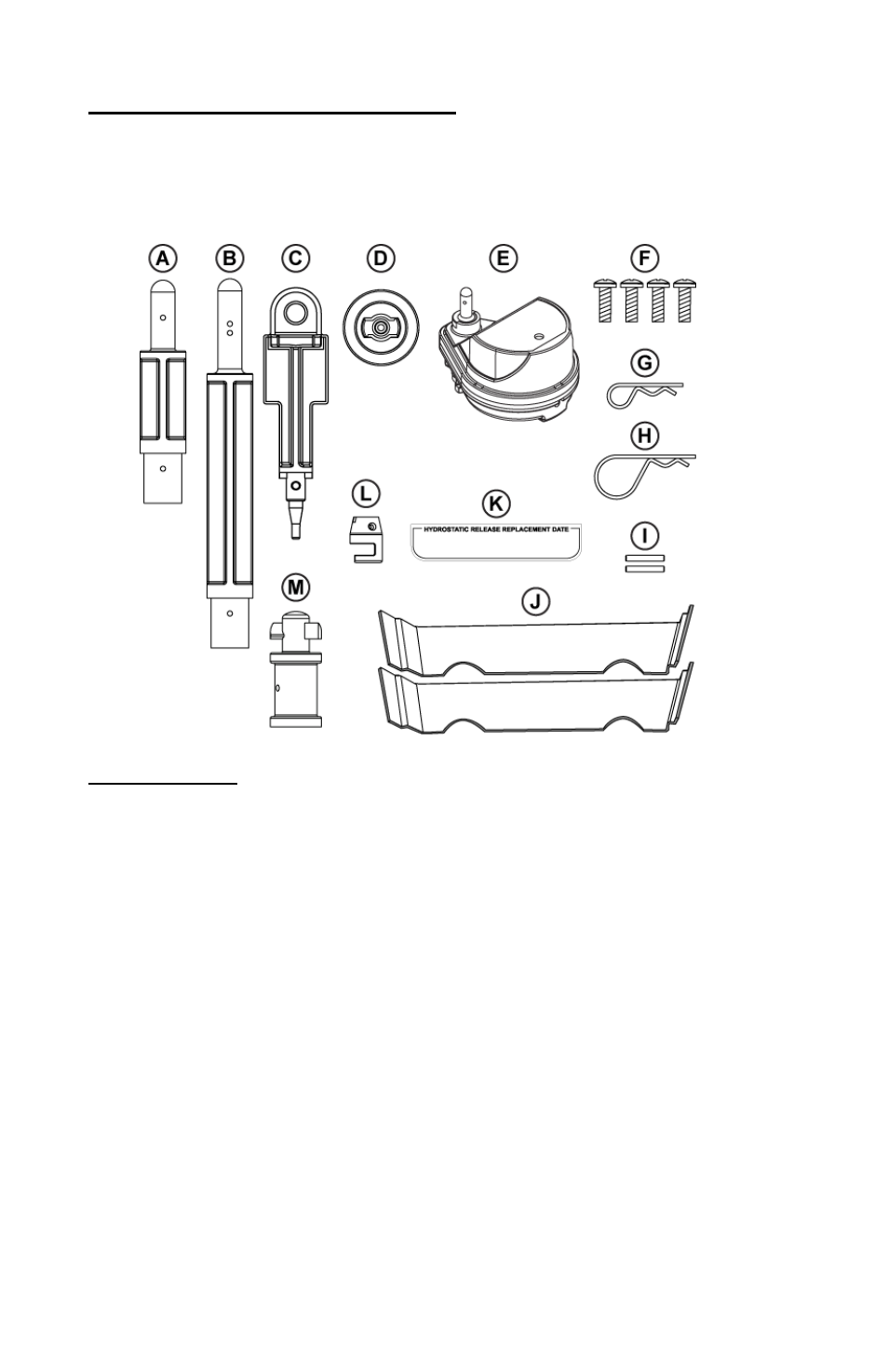

Figure 1 items:
A Category I bracket (SeaShelter
™) release rod
B Capsule design release rod
C Open faced release rod
D Keyed bracket adapter
E Replacement hydrostatic release unit (HRU)
F Mounting screws (4)
G Cotter pin, small
H Cotter pin, large
I
Slotted spring pin (2)
J
Mounting bracket adapter (2)
K HRU expiration label
L
Mounting rod adapter (metal)
M Category I bracket (
SeaShelter™
3
)
release rod
Figure 1
