American Audio XDM343 User Manual
Page 5

Inputs:
Microphone
1.5mV, 600 Ohm
Phono
1.2mV, 47kOhm
Line
100mV, 27kOhm
Output
20V, peak to peak
Frequency range
20Hz-20KHz, ± 1dB
Distortion
<0,03%
S/N-ratio
>85dB
Talkover
-15dB
Tone control
Treble: 10Khz ± 12dB
Middle: 1 KHz ± 12dB
Bass: 100 Hz ± 12dB
Headphone impedance
16 Ohms
Power supply
AC115/230V, 50/60Hz
Dimensions
12.5” W x 10.25” D x 4” H
262 x 320 x 102 mm
Weight
8 lbs. / 3.5 kg
© American DJ® AUDIO Los Angeles, CA 90058 USA
Specifications subject to change without notice. XDM-343 User Instructions page 5

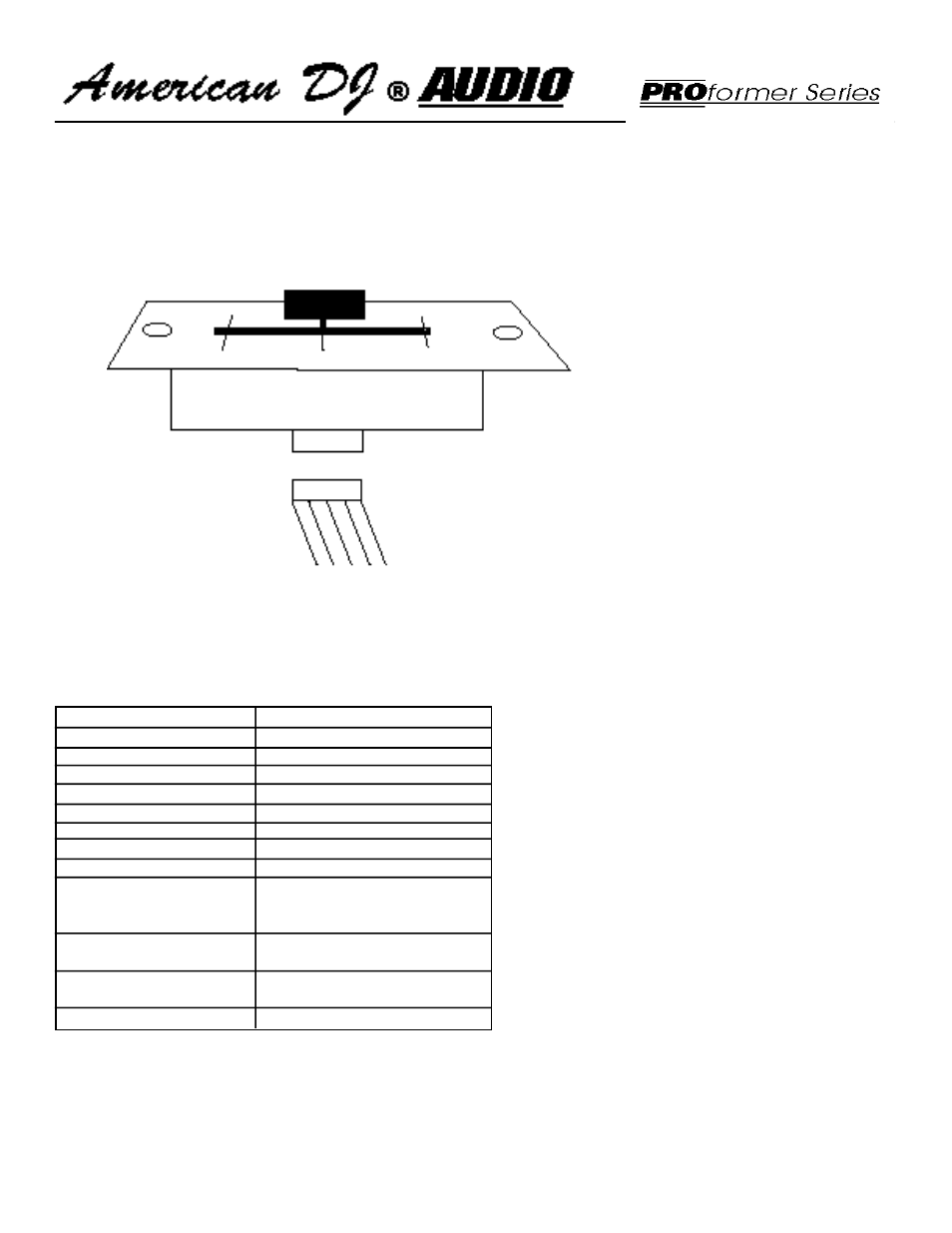

Replacing the Crossfader
Technical Specifications - model XDM-343
Instructions for replacing the crossfader:
• Disconnect from main power supply
• Remove the fader knob.
• Remove the two outer screws.
• Take the fader out and unplug the connection cable.
• Connect the new fader and replace back into mixer.
(28) MIC 2 JACK - Connect your microphone with 1/4 inch (6.3mm) jack plug here. The signals can be controlled via
CHANNEL 2, if the PHONO / LINE / MIC switch (5) is set to MIC 2.
(29) LINE 3 - PHONO 3 SELECTOR - Used to switch the CH-3 input jacks to line 3 or phono 3.
