6. Installation of Monitor and Tuner Pack
Page 9

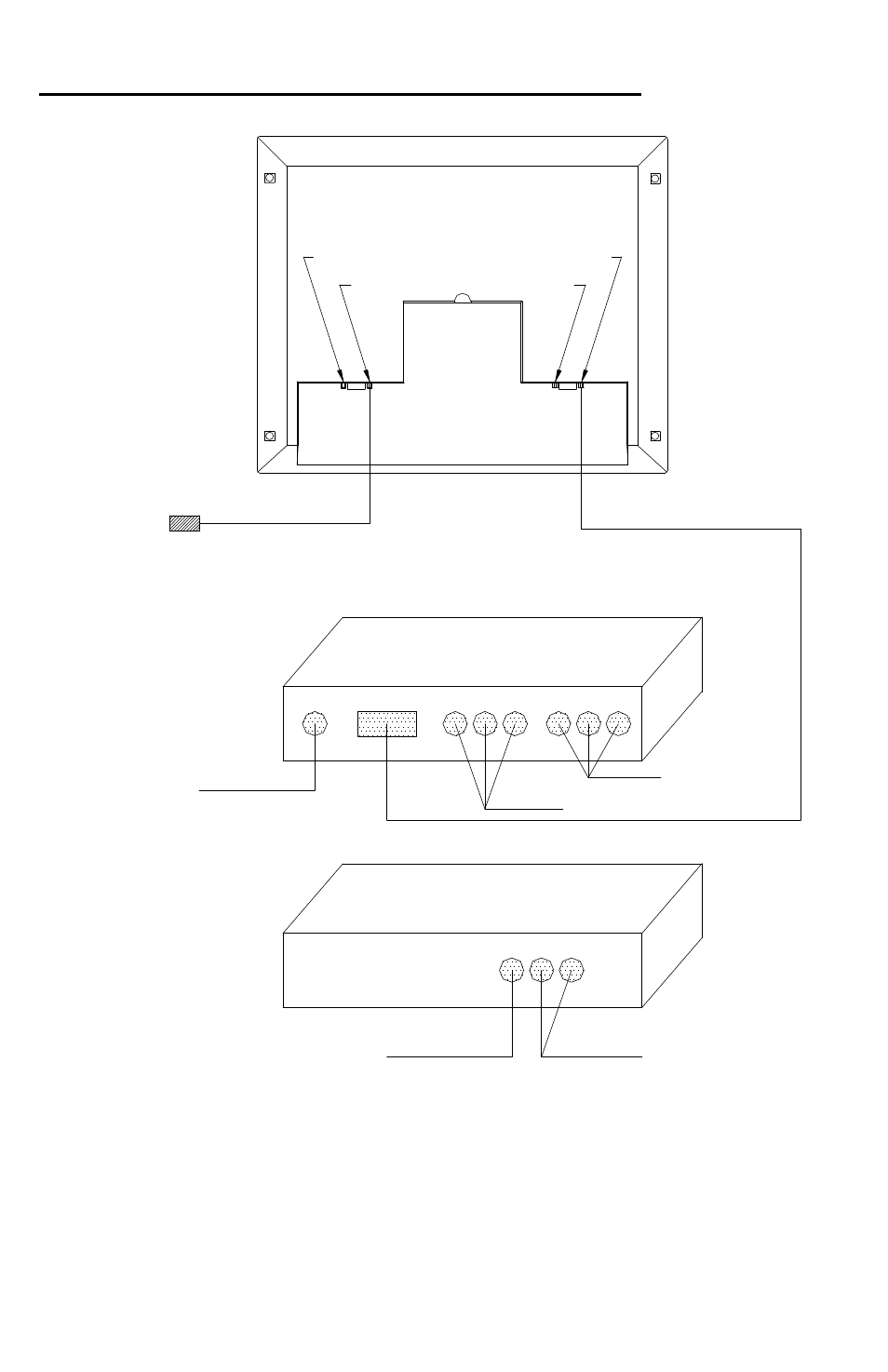

Monitor Rear View
VGA Input
DC 12V In
A/V
AUX
Tuner/Front View
Tuner/Rear View
Ant.
Cable
A/V 2 Input
A/V 1 Input
A/V Output
Interface Cable
12V Power cable
Note: Filtering device
inside for automotive
use.
To Ext. Antenna
or Cable Connection
To VCP/DVD
To VCP/DVD
L/R Audio to
external amplifier
To second Video
Monitor (not required)
