Audio Authority IR Converter C-1024A User Manual

Model c-1024a, Ir converter for bose, Lifestyle

background image

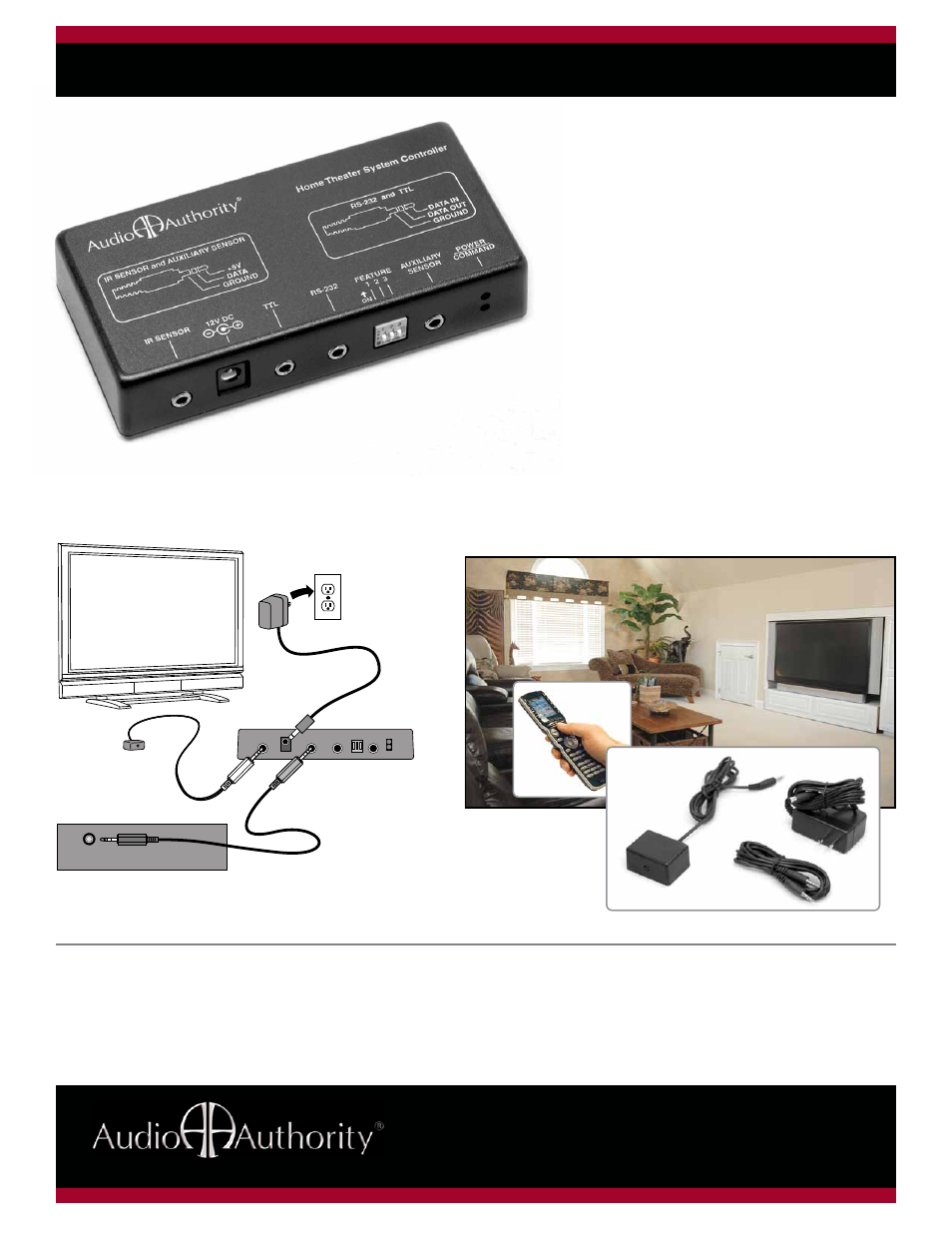

The Model C-1024A makes it possible for multiple
BOSE sound and video components to respond to the

commands issued by a single Pronto

®

or Harmony 880

learning remote control. Small enough to be easily hidden, the C‑1024 is

designed for placement behind the video display in the home theater room. Only the
small IR sensor remains visible near the front of the display where it receives the remote
control commands. System control is achieved through a serial jack connection from the
C‑1024A to the rear panel of the LIFESTYLE

®

system. The C‑1024 is compatible with the

Bose music center models LIFESTYLE 20, 25 and 30 and the MRI LIFESTYLE 40 and 50.

This one-of-a kind converter allows
a compatible learning IR remote to
communicate with Bose Lifestyle systems

IR Converter for Bose

®

Lifestyle

®

and MRI Systems

SPECIFICATIONS:

Model Number:
IR Input Connectors:
TTL Output Connector:
RS-232 Output Connector:
IR Input Pinout (shaft, ring, tip):
Data Pinout (shaft, ring, tip):

2. 5 x 5 x 1.1

One Year Replacement

12 volts DC

FCC

IR receiver, power supply, 3.5mm cord, Manual

Size (H x W x D):
Warranty:
Power Requirements:
Regulatory Approvals:
Accessories Included:

C‑1024A

(2) 3.5mm

3.5mm
3.5mm

ground, data, +5V

ground, data out, data in

Remote not

included

Bose and LifeStyle are trademarks of Bose Corporation.

C-1024 Home

Theater Controller

Back of Music Center or MRI

SERIAL

DATA

IR SENSOR

SERIAL DATA

CABLE (TTL)

TV

POWER

Included accessories

Product Focus

Model C-1024A
