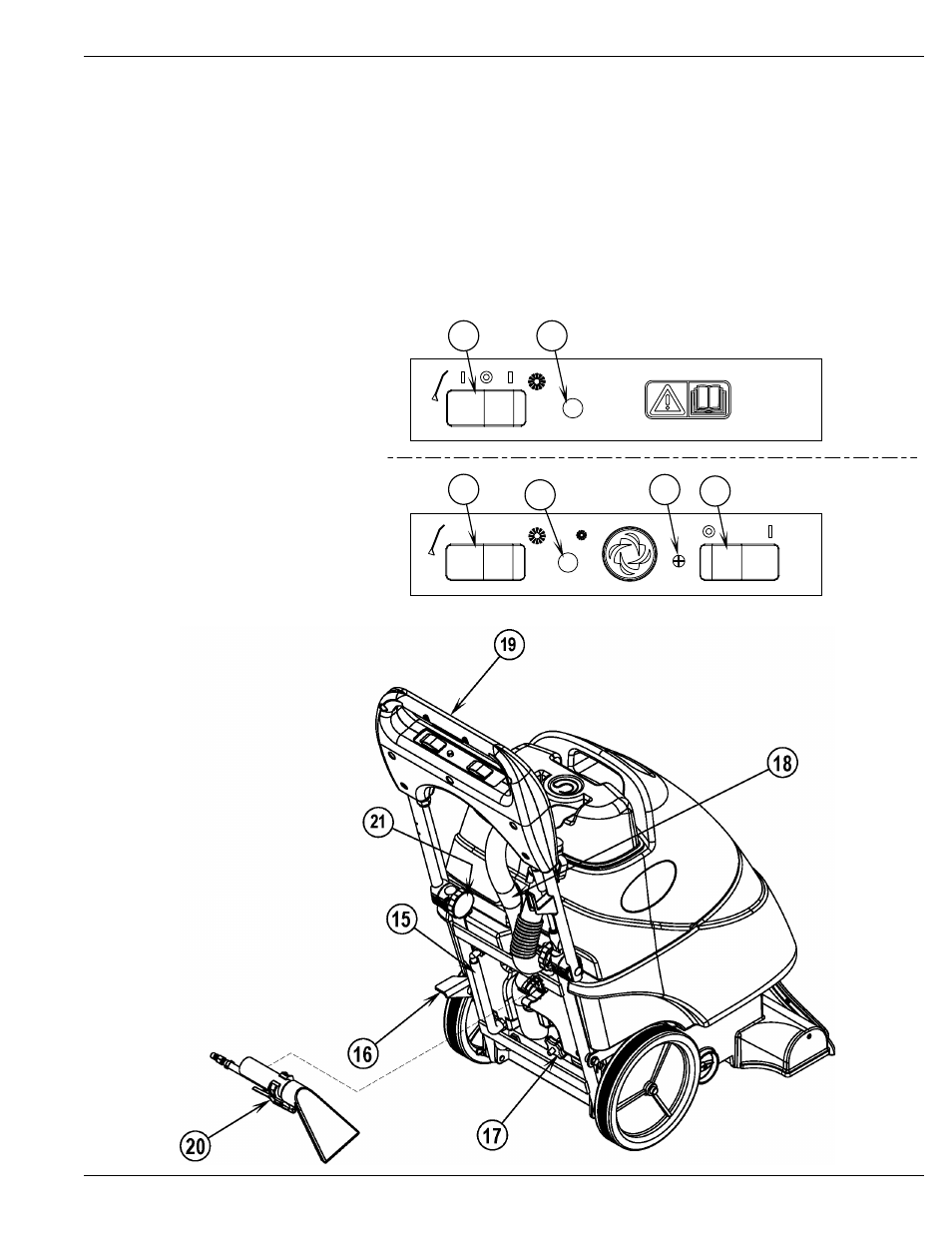

KNOW YOUR MACHINE (CONTINUED)
15 Solution Drain Hose / Level Indicator
16 Handle Release Pedal
17 Brush Pressure Control Knob
18 Recovery Hose Connection
19 Handle
Assembly
20 Hand Tool Assembly
21 Handle Angle Adjustment Knobs
22 Brush Motor Circuit Breaker
23 Power & Extract / Accessory Switch
(all models except AX410)
25 Extract / Accessory Switch (only AX410)
26 Power Switch (only AX410)
27 PAT Test Connection (Portable Appliance Test)
23 22
25
22
26
AX 410 J
AX 410
AX 410 UK
4A
27
