10 Plug the input dongle that came with your THEATER™ 550 PRO
TV tuner card into the AV IN connection.
11 Attach your S-video source and/or composite source to the proper
input on the input dongle.
12 Turn on the monitor, and then your computer. If you have properly
installed your card, operating system messages will appear once the
boot procedure is finished. Proceed with the installation of drivers
and software.
Connecting Display Devices
The following connections are available:

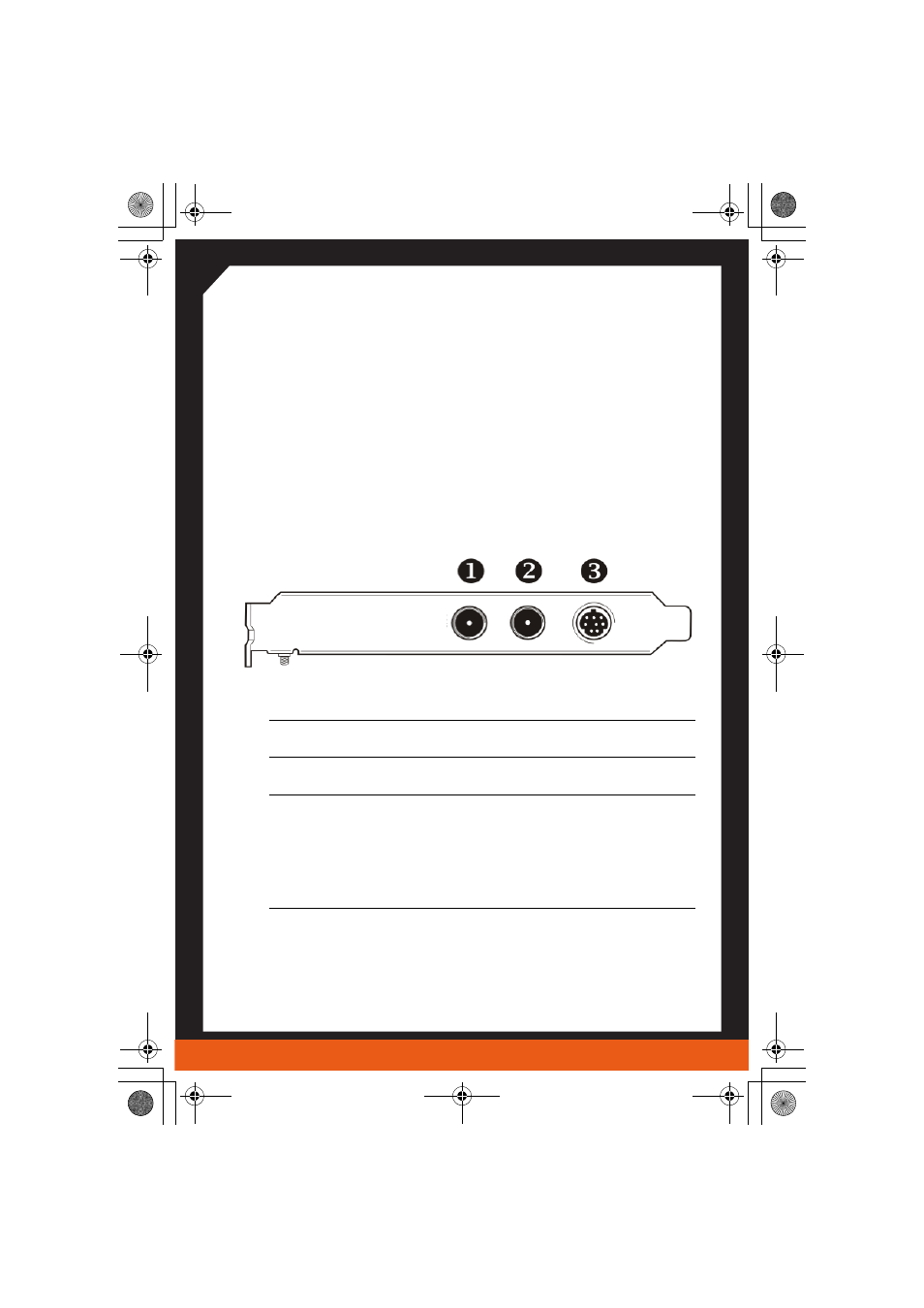

THEATER™ 550 PRO TV tuner card Baseplate
X Cable TV Coaxial Connection
Y FM Radio Coaxial Connection
Z AV IN Connection (to Dongle)
If using a dongle:
• Black port J S-Video in.
• Yellow port J Composite in.
• Red port J Audio in (R).
• White port J Audio in (L).
AV
IN
FM
CA
TV
