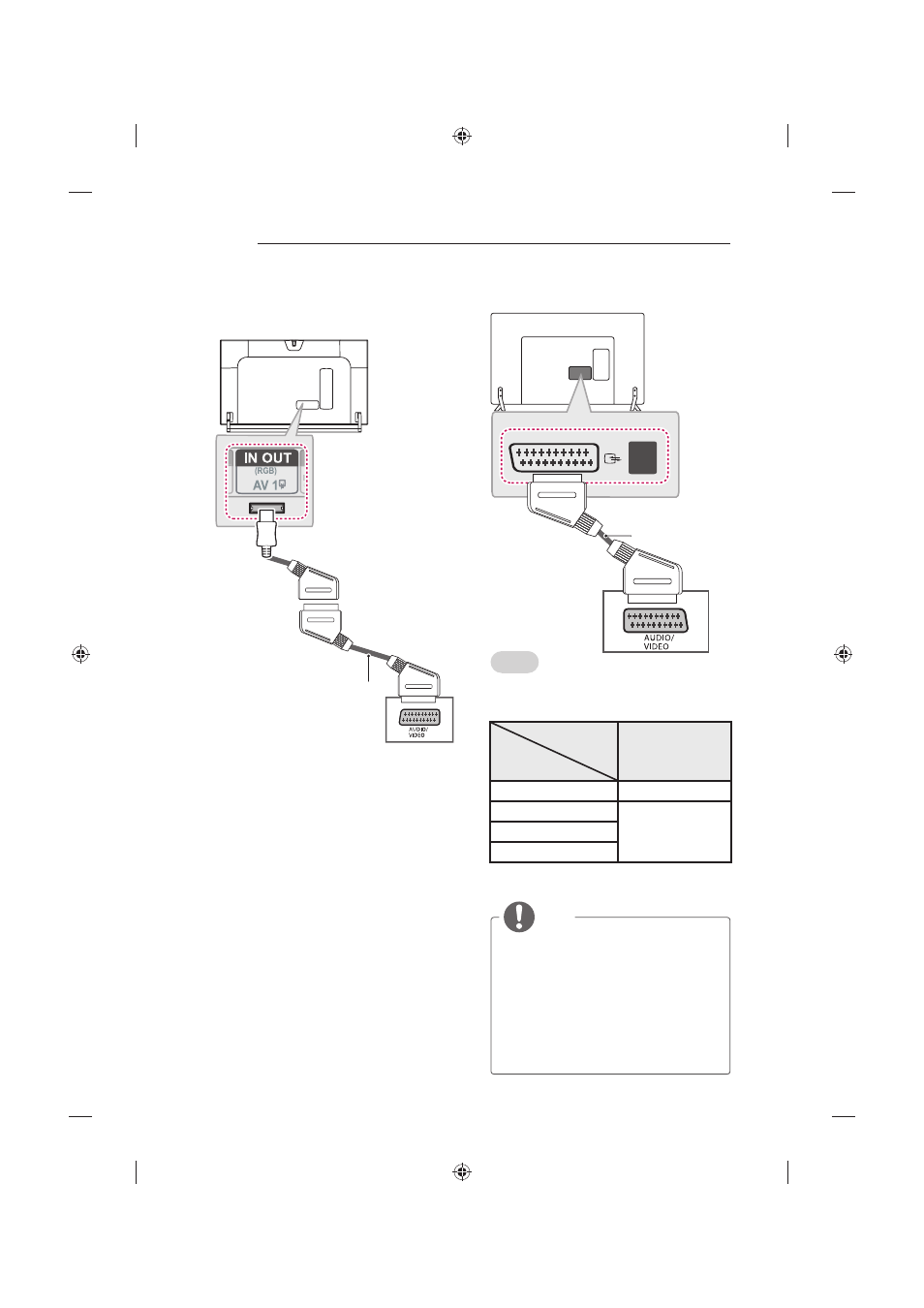

Euro Scart connection

(Only LB86**, LB87**)

(*Not Provided)

(Use the Scart

gender cable

provided.)

(Only LB63**, LB65**, LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**)

AV1

IN/OUT

(*Not Provided)

English

Transmits the video and audio signals from an exter-
nal device to the TV set. Connect the external device
and the TV set with the euro scart cable as shown.

Output

Type

Current
input mode

AV1

(TV Out

)

Digital TV

Analogue TV, AV

Analogue TV

Component

HDMI

1 TV Out : Outputs Analogue TV or Digital TV

signals.

NOTE

y Any Euro scart cable used must be signal

shielded.

y :KHQZDWFKLQJGLJLWDO79LQ'LPDJLQJ

mode, only 2D out signals can be output
through the SCART cable. (Only 3D models)

y If you set the 3D mode to On while a

scheduled recording is performed on digital
TV, monitor out signals cannot be output
through the SCART cable, and the recording
cannot be performed. (Only 3D models)
