128-6634
4 of 16
4 4 4 4 4
RRRRR
AAAAA

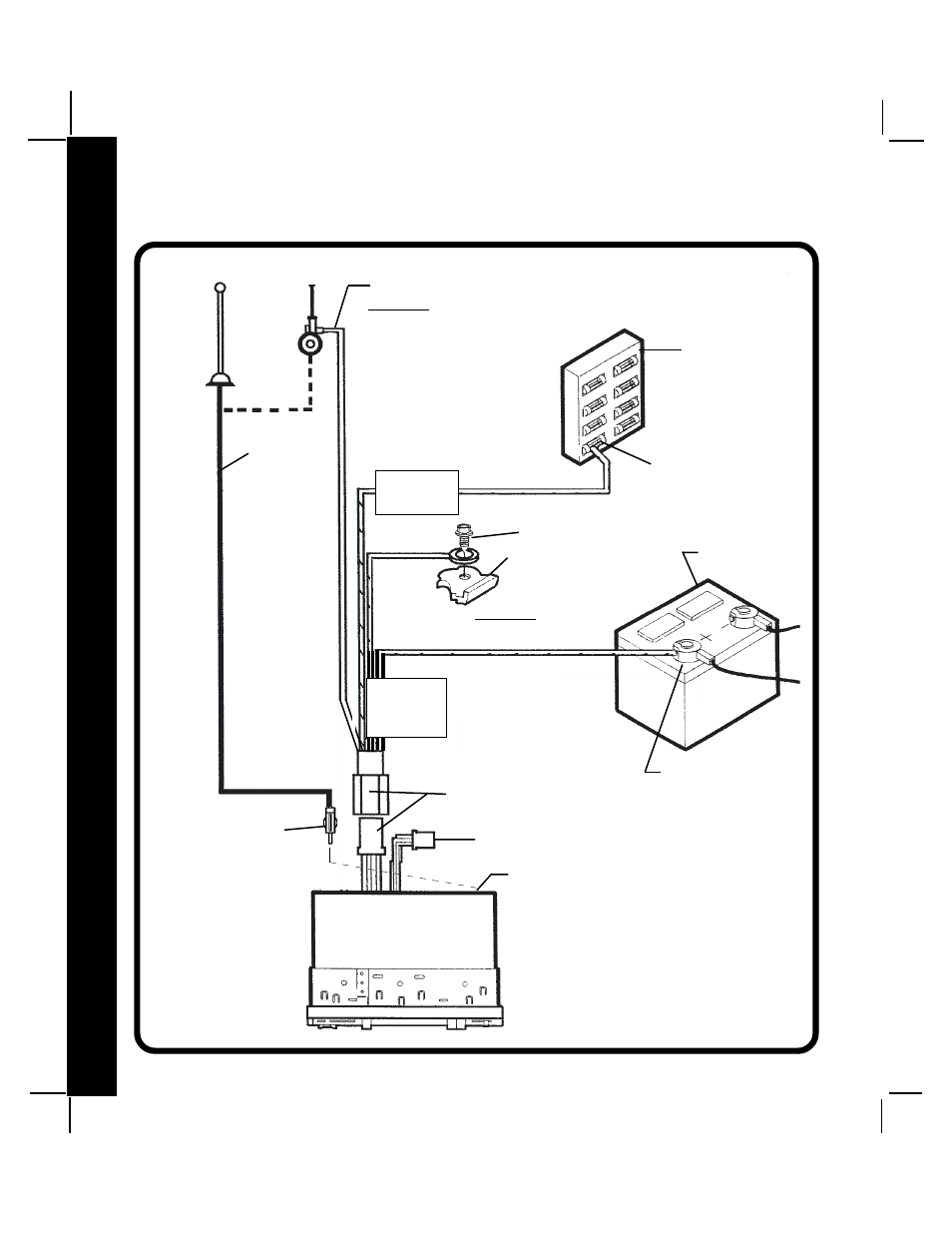

DIO WIRINGDIO WIRINGDIO WIRINGDIO WIRINGDIO WIRING
R R R R R A A A A ADIO WIRING DIO WIRING DIO WIRING DIO WIRING DIO WIRING
REFER TO PAGE 5 FOR SPEAKER WIRING
IMPORTANT
THE BLUE WIRE CAN BE USED TO
REMOTELY ACTIVATE AN AUTO-
MATIC ANTENNA OR AN EXTERNAL
AMPLIFIER (SEE ANTENNA OR AM-
PLIFIER MANUAL)
9 PIN PLUG
(SEE PAGE 5 FOR SPEAKER WIRING)
4 PIN PLUGS
POSITIVE (+) TERMINAL
12V BATTERY
YELLOW
CAR BATTERY
METAL PART OF DASH
(DRILL HOLE IF NECESSARY)
SCREW
BLACK
RED
“RADIO” FUSE
+ 12V ACCESSORY
BLUE
FUSEBLOCK
RADIO
IMPORTANT
YELLOW WIRE MUST BE CONNECTED AS SHOWN
OR RADIO WILL NOT OPERATE PROPERLY
1-AMP FUSE
EXISTING
ANTENNA
CABLE
ANTENNA
AUTOMATIC
ANTENNA
FILTER/FUSE
BOX
(12-AMP FUSE)
ANTENNA SOCKET
ANTENNA PLUG
