ENGLISH
17 ASSEMBLING AND PREPARING

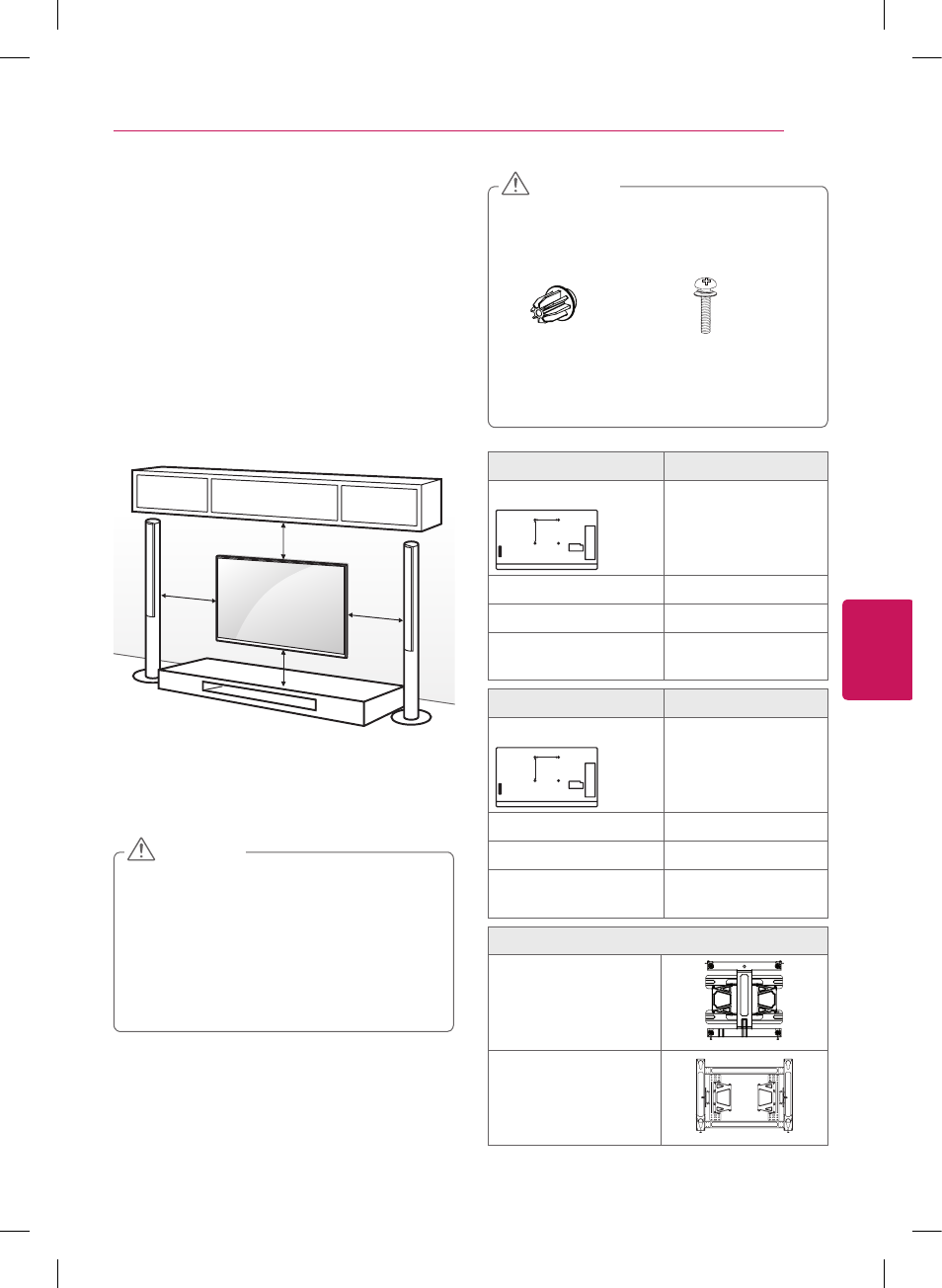

Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the
wall mount bracket on a solid wall perpendicular
to the floor. If you are attaching the TV to other
building materials, please contact qualified
personnel to install the wall mount. Detailed
instructions will be included with the wall mount.
We recommend that you use an LG brand wall
mount.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
y When TV Wall Mount installation is applied
please consider adequate spacing around
perimeter of TV and at bottom for proper
operation of Sliding Speaker compartment.
Inadequate space may interfere with normal
operation of sliding speaker compartment.
» Sliding Speaker OPEN state lowers/
extends to (25-35mm) below TV.
CAUTION
y Be sure to use the existing Components
provided with the TV. Do NOT use
components supplied with Wall Bracket to
install Wall Bracket to TV.
CAUTION
Wall mount inner
spacers
4EA
Wall mount screws
4EA, M6 x 54
(For 55LA9700)
4EA, M8 x 44
(For 65LA9700)
Model 55LA9700
VESA (A x B)
A
B
400 x 400
Standard screw M6
Number of screws 4
Wall mount bracket
(optional) LSW430B
Model 65LA9700
VESA (A x B)
A
B
600 x 400
Standard screw M8
Number of screws 4
Wall mount bracket
(optional) LSW630B
Wall mount bracket (optional)
LSW430B
LSW630B
(4 inches)
