EXTERNAL EQUIPMENT SETUP

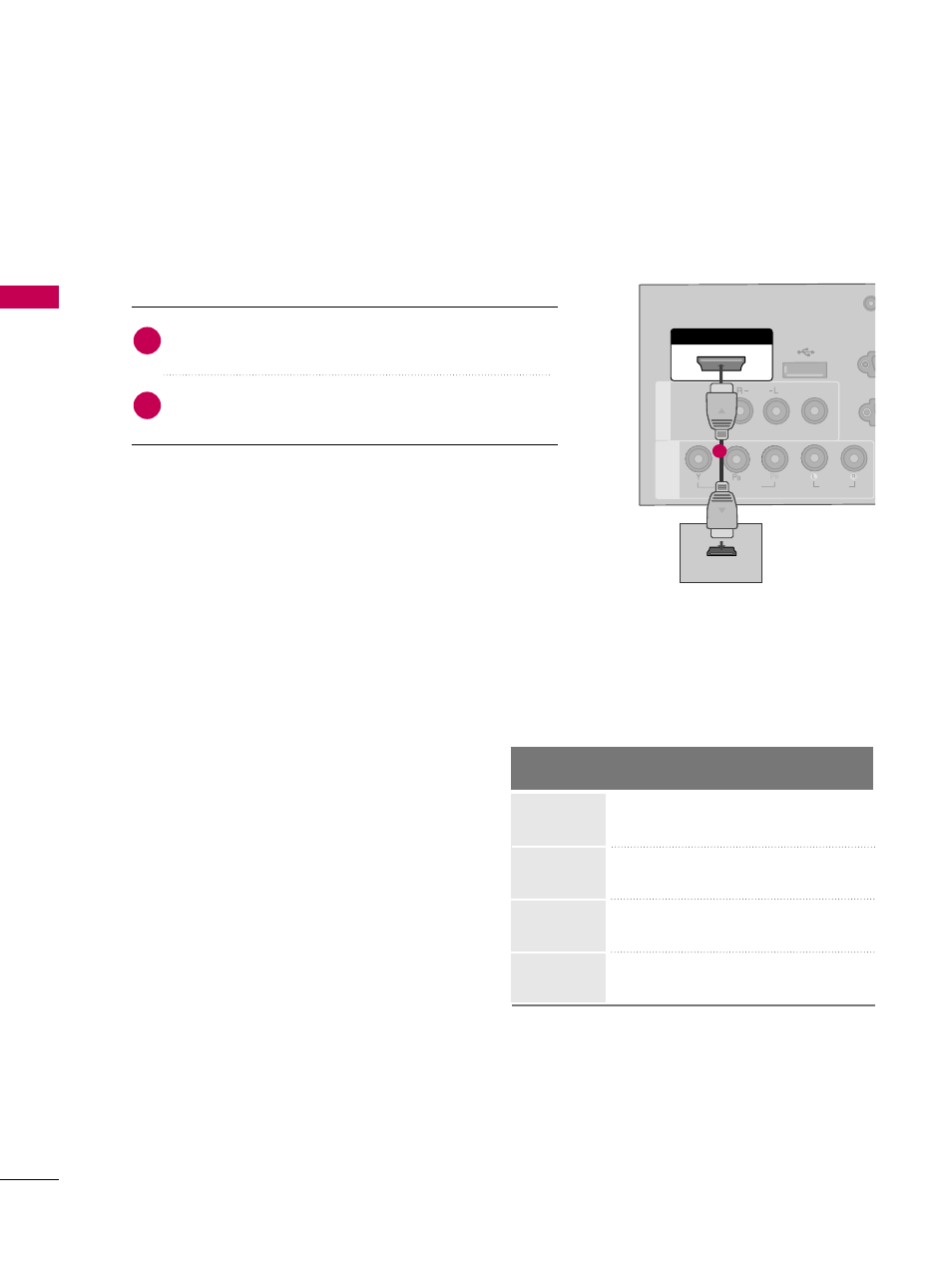

HDMI Connection
Connect the digital set-top box to H HD DM MII//D DV VII IIN N
jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■ Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■ Select H HD DM MII input source with using the IIN NPPU UT T button
on the remote control.
2
1
HDMI-DTV
Horizontal Vertical
Frequency(KHz) Frequency(Hz)
31.469 59.94
31.500 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
67.50 60.00
Resolution
720x480p
1280x720p
1920x1080i
1920x1080p
AUDIO IN
(RGB/DVI)
( )
RGB IN (PC)
RESET UPDATE
RS-232C IN
(SERVICE ONLY)
REMOTE
CONTROL OUT
SPEAKER OUT
8
HDMI/DVI IN
USB IN
SERVICE ONLY
VIDEO MONO ( ) AUDIO
RG
RESET UPDATE UPDATE
R
(SER
A
V IN 1
A
V IN 1
VIDEO AUDIO COMPONENT IN
HDMI-DTV OUTPUT
1
