EXTERNAL
EQ
UIPMENT
SETUP
21
DVD SETUP
Component Input ports

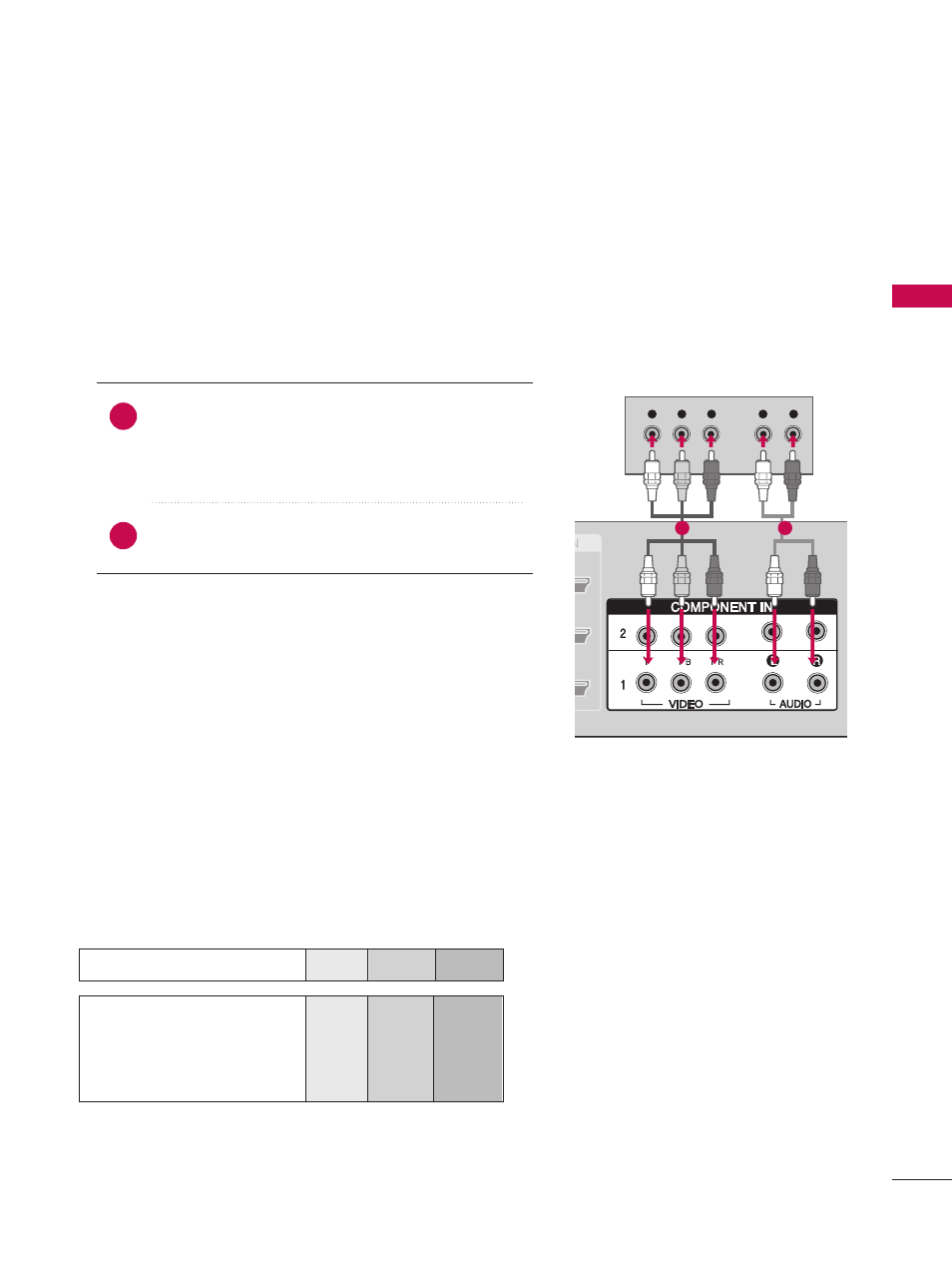

To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV Y P
B
P
R
Video output ports
on DVD player
Y
Y
Y
Y
P B
Pb
B-Y
Cb
P R
Pr
R-Y
Cr
Y L R P B P R
When connecting Component cable
Connect the video outputs (Y, P B , P R
) of the DVD to
the C CO OM MP PO ON NE EN NT T IIN N V VIID DE EO O1 1 jacks on the set.
Match the jack colors
(Y = green, P
B = blue, and P R = red).
Connect the audio outputs of the DVD to the
C
CO OM MP PO ON NE EN NT T IIN N A AU UD DIIO O1 1 jacks on the set.
1. How to connect
2. How to use
■ Turn on the DVD player, insert a DVD.
■ Select C CO OM MP PO ON NE EN NT T 1 1 input source with using the
IIN NP PU UT T button on the remote control.
■ If connected to C CO OM MP PO ON NE EN NT T IIN N 2 2 input, select C CO OM M--
P PO ON NE EN NT T 2 2 input source.
■ Refer to the DVD player's manual for operating instruc-
tions.
