2 Connecting
10
C
onnecting
2
Connecting

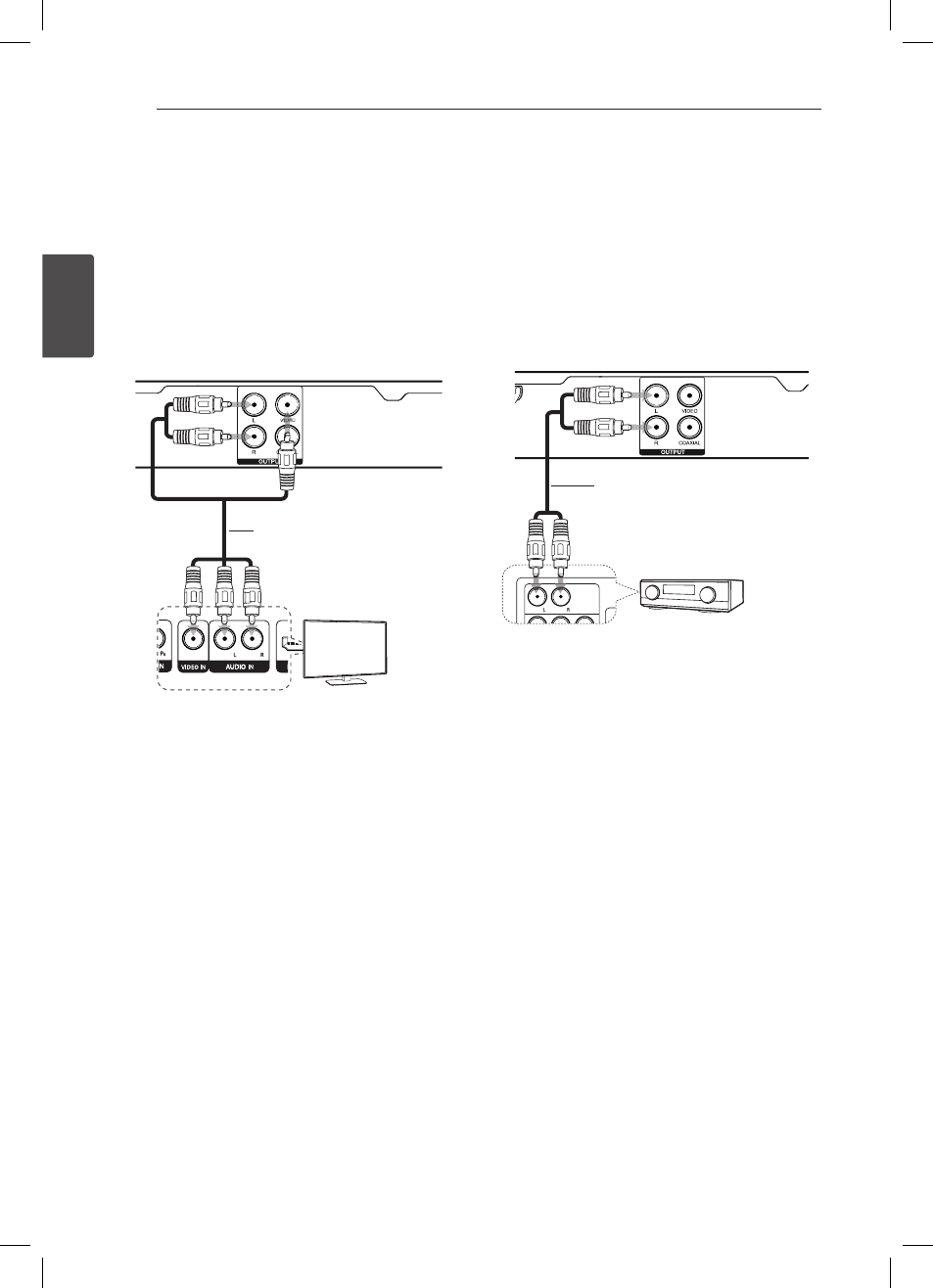

Connecting to your TV
Connecting Video / Audio
cable
Connect the VIDEO/AUDIO OUTPUT on the unit to
VIDEO/AUDIO IN on TV with Video/Audio cable,
such as VIDEO with yellow, AUDIO Left/Right with
white/ red.
Video/Audio cable
TV
Rear of the Unit
Connecting to an
Amplifier
Connecting Audio cable
Connect the AUDIO OUTPUT on the unit to 2CH
AUDIO IN on amplifier with Audio cable, such as
AUDIO Left/Right with white/red.
Audio Cable
Receiver / Amplifier
Rear of the Unit
