PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

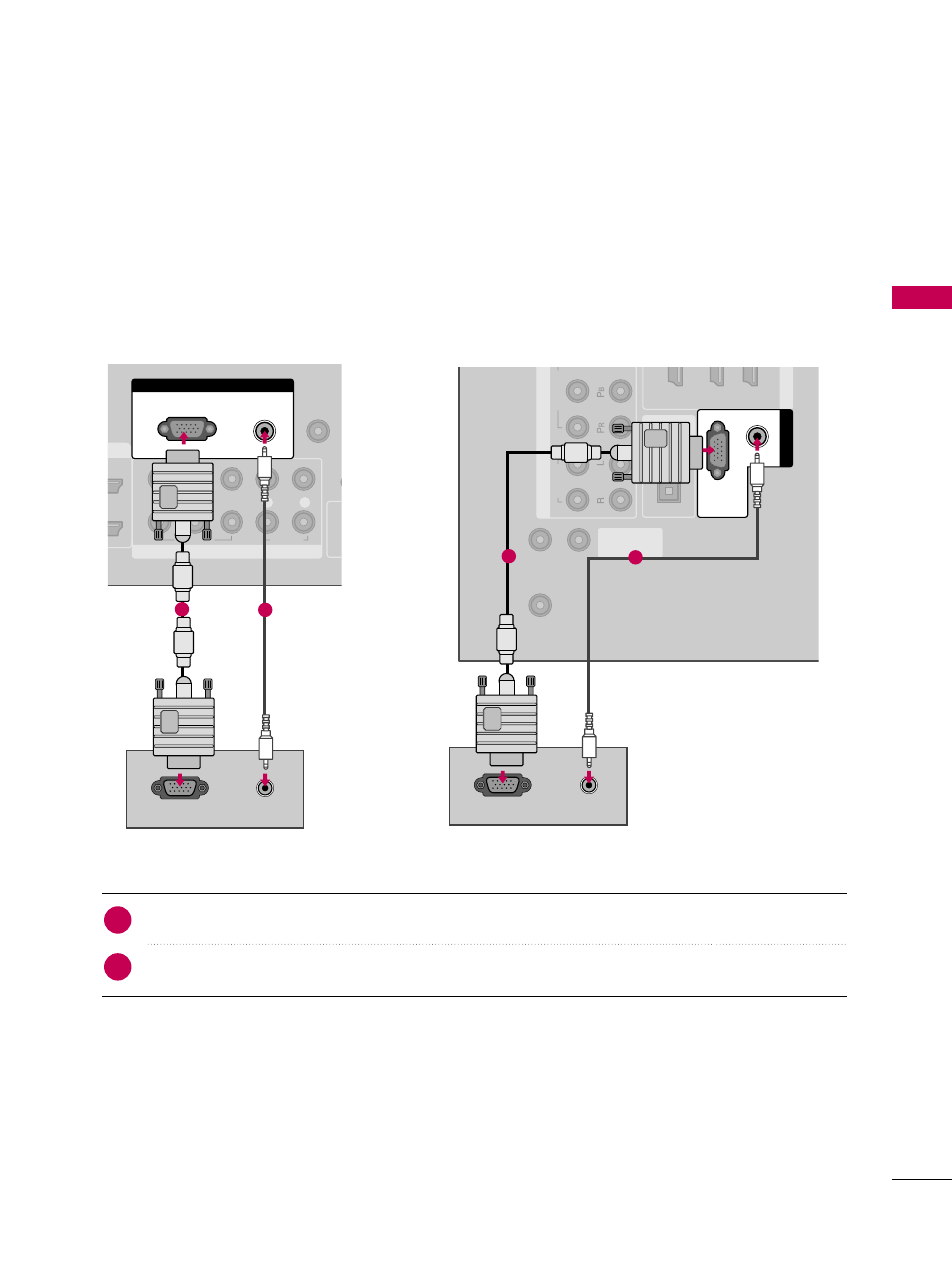

VGA (D-Sub 15 pin) Connection
Connect the VGA output of the PC to the R RG GB B ((PP C C)) jack on the TV.
Connect the PC audio output to the A AU UD DIIO O ((R RG GB B//D DV VII)) jack on the TV.
1. How to connect
2. How to use
■ Turn on the PC and the TV.
■ Select the R RG GB B--PPC C input source on the TV using the IIN NPPU UT T button on the remote control.
