Component Connection

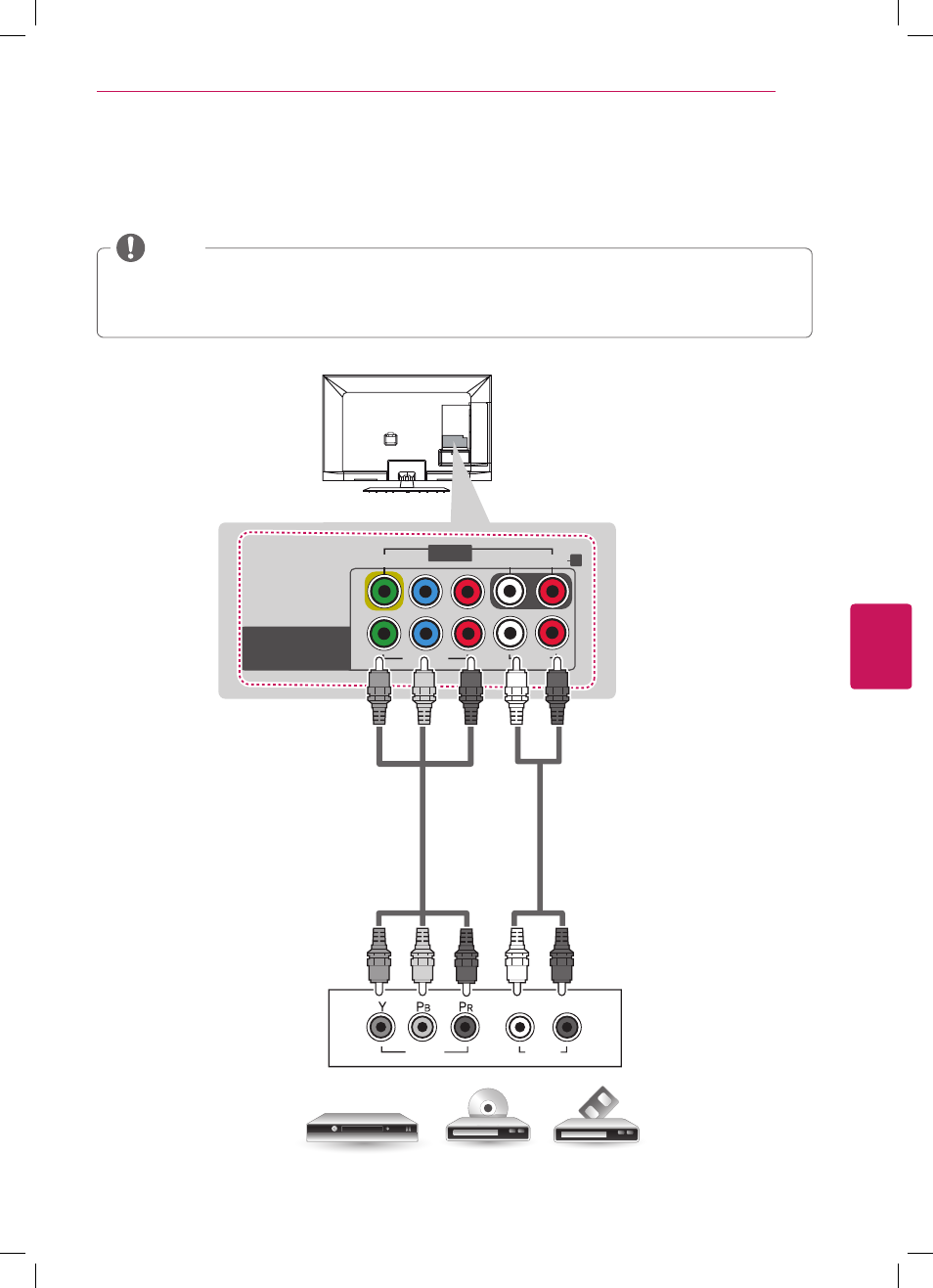

Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
y
y
If cables are installed incorrectly, it could case the image to display in black and white or with
distorted color.
y
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO
COMPONENT
IN
P
B
P
R
1
2
Y
AUDIO
R
L/MONO
VIDEO
AUDIO
AV IN
AUDIO
VIDEO
L
R
L
R
(*No
t P
ro
vided)
(*No
t P
ro
vided)
DVD / Blu-Ray / HD Cable Box
GREEN
GREEN
BL
UE
BL
UE
RED
RED
RED
RED
WHITE
WHITE
ENGLISH
25
MAKING CONNECTIONS
