PREPARATION
P
R
EP
A
R
AT
IO
N
12

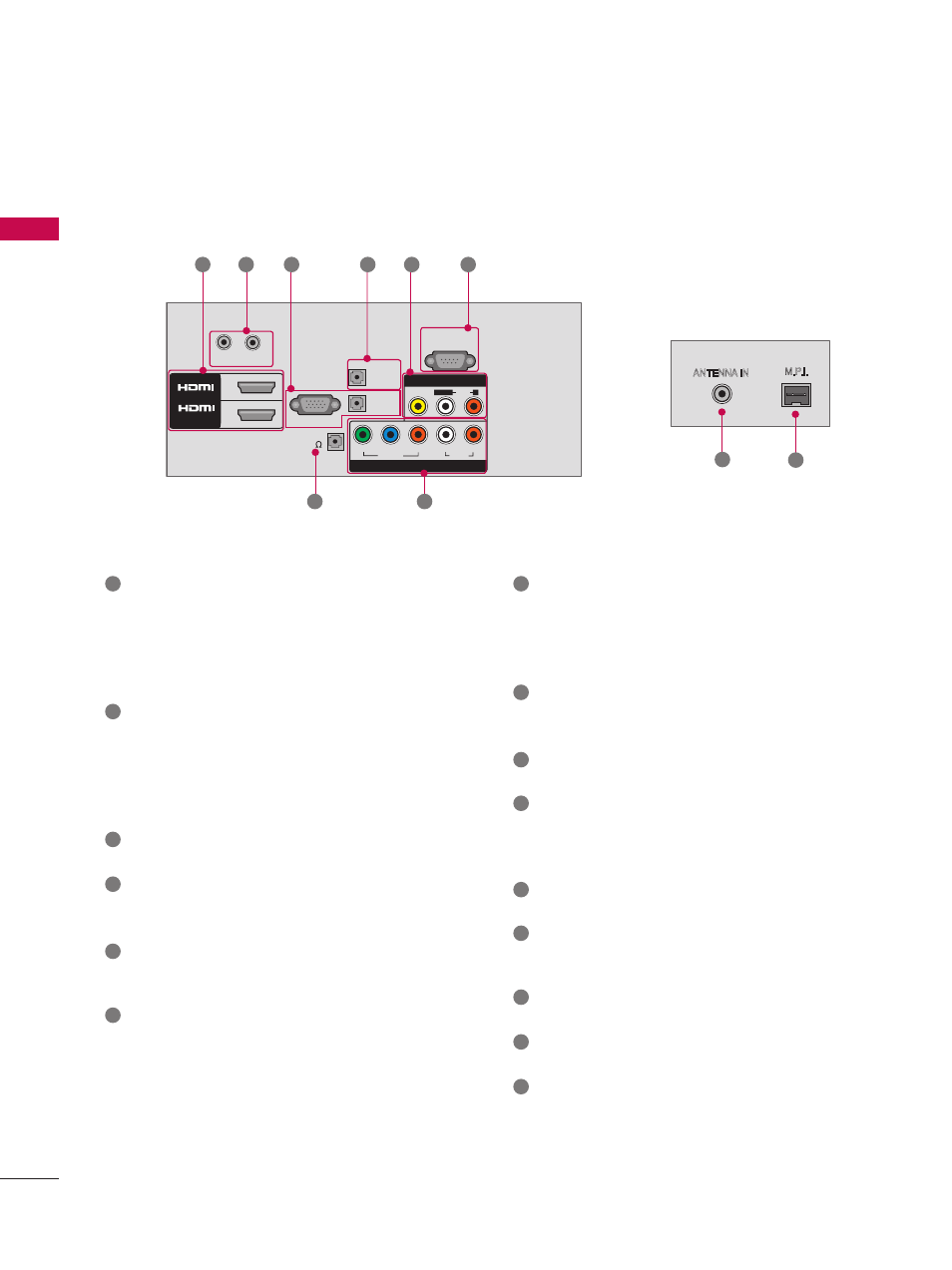

1 HDMI/DVI IN, HDMI IN
Digital Connection.
Supports HD video and Digital audio. Doesn’t
support 480i.
Accepts DVI video using an adapter or HDMI
to DVI cable (not included).
2 RGB IN (PC)
Analog PC Connection. Uses a D-sub 15 pin
cable (VGA cable).
AUDIO IN (RGB/DVI)
0.32 cm (1/8 inch) headphone jack for analog
PC audio input.
3 SPEAKER OUT (8Ω)
Connect to external speaker input.
4 RS-232C IN (SERVICE ONLY)
Used by third party devices.
This port is used for service or Hotel mode.
5 AV (Audio/Video) IN
Analog composite connection. Supports stan-
dard definition video only (480i).
6 UPDATE
Enables/disables software downloads and
debug mode.
RESET
Performs a hardware reset.
7 COMPONENT IN
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for video &
red and white for audio.
8 USB INPUT
Used for viewing videos, photos and listening
to MP3s.
9
GAME CONTROL
Control port
10 Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on
DC pwer.
11 REMOTE CONTROL OUT
IR output for controlling an auxiliary device.
12 RJP (REMOTE JACK PACK PORT)
Connect to remote jack pack control output
port.
13 TV - LINK CFG
Used for FTG Configuration
14 ANTENNA IN
Connect over the air signals th this jack.
15 M. P. I.
Control port.
9
32/37LD310H
RGB IN (PC)
AUDIO IN
(RGB/DVI)
RS-232C IN
(SERVICE ONLY)
VIDEO AUDIO L/MONO R
VIDEO AUDIO
COMPONENT IN
AV IN 1
Y P B P R L R
2
1 /DVIIN
REMOTE
CONTROL
OUT
SPEAKER
OUT (8 )
RESET UPDATE
1 2 11 5 4
7 3
6
ANTENNA IN M.P.I.
14 15
