MAKING CONNECTIONS
Component Connection

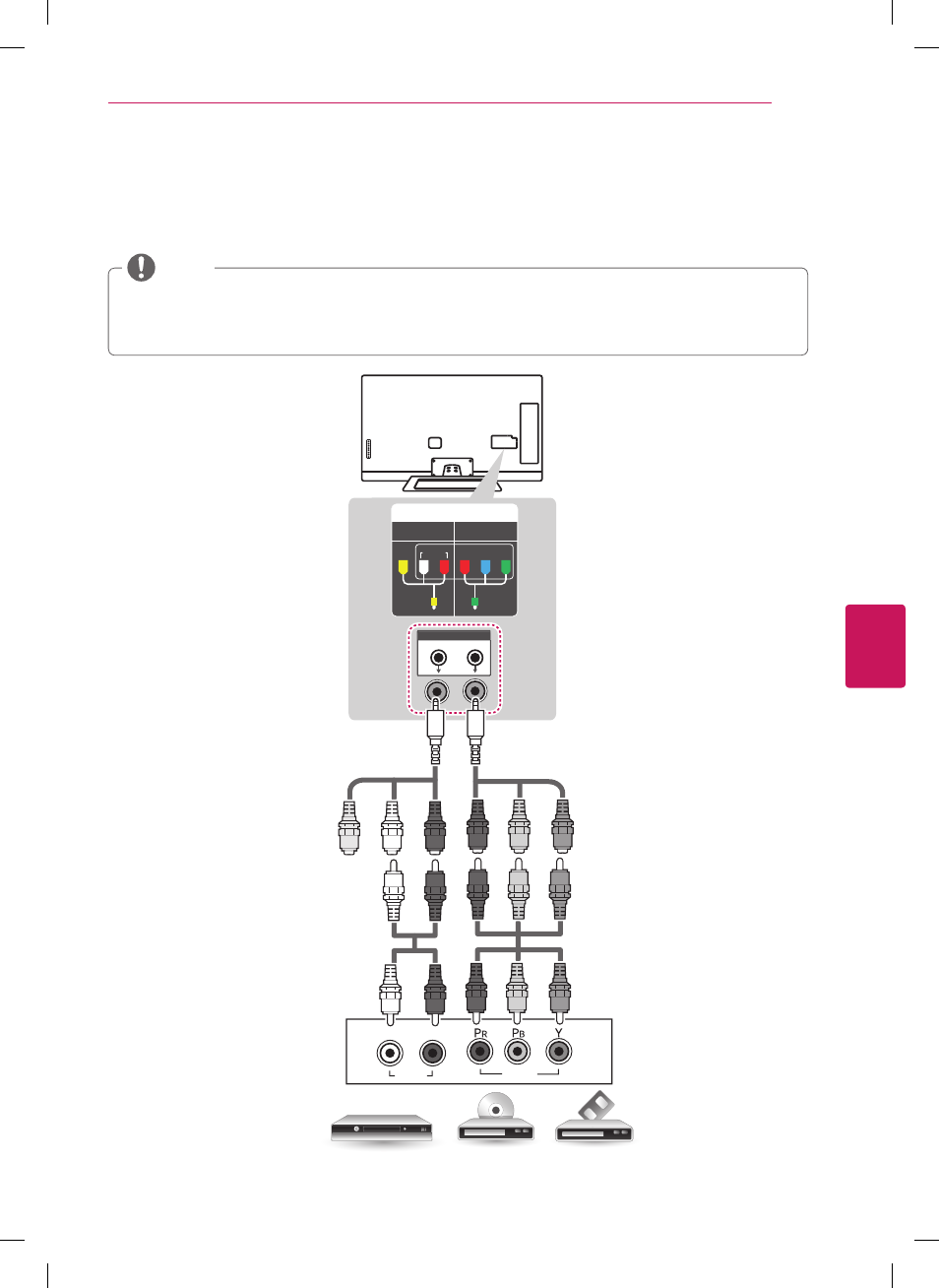

Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
y y If cables are installed incorrectly, it could case the image to display in black and white or with
distorted color.
y y Check to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO AUDIO
L R
DVD/ Blu-Ray / HD Cable Box
(Use the component video cable provided.) (Use the composite video cable provided.)
(*Not Provided) (*Not Provided)
GREEN RED BL
UE
YELL
O
W
GREEN YELLOW
WHITE RED
GREEN RED BL
UE
GREEN RED BL
UE
WHITE RED
WHITE RED
IN
COMPONENT AV
VIDEO AUDIO Y P B P R
