ATO S C M 0 . 1 - 1 5 User Manual
ATO Accessories for music

■
Full “SL” spec 15
˝
/375mm bass driver.
■
1000W Class A amplifier.
■
Phase adjustment.
■
Variable cut off frequency.
■
Variable gain.
■
Stereo inputs.
■
6 year warranty.

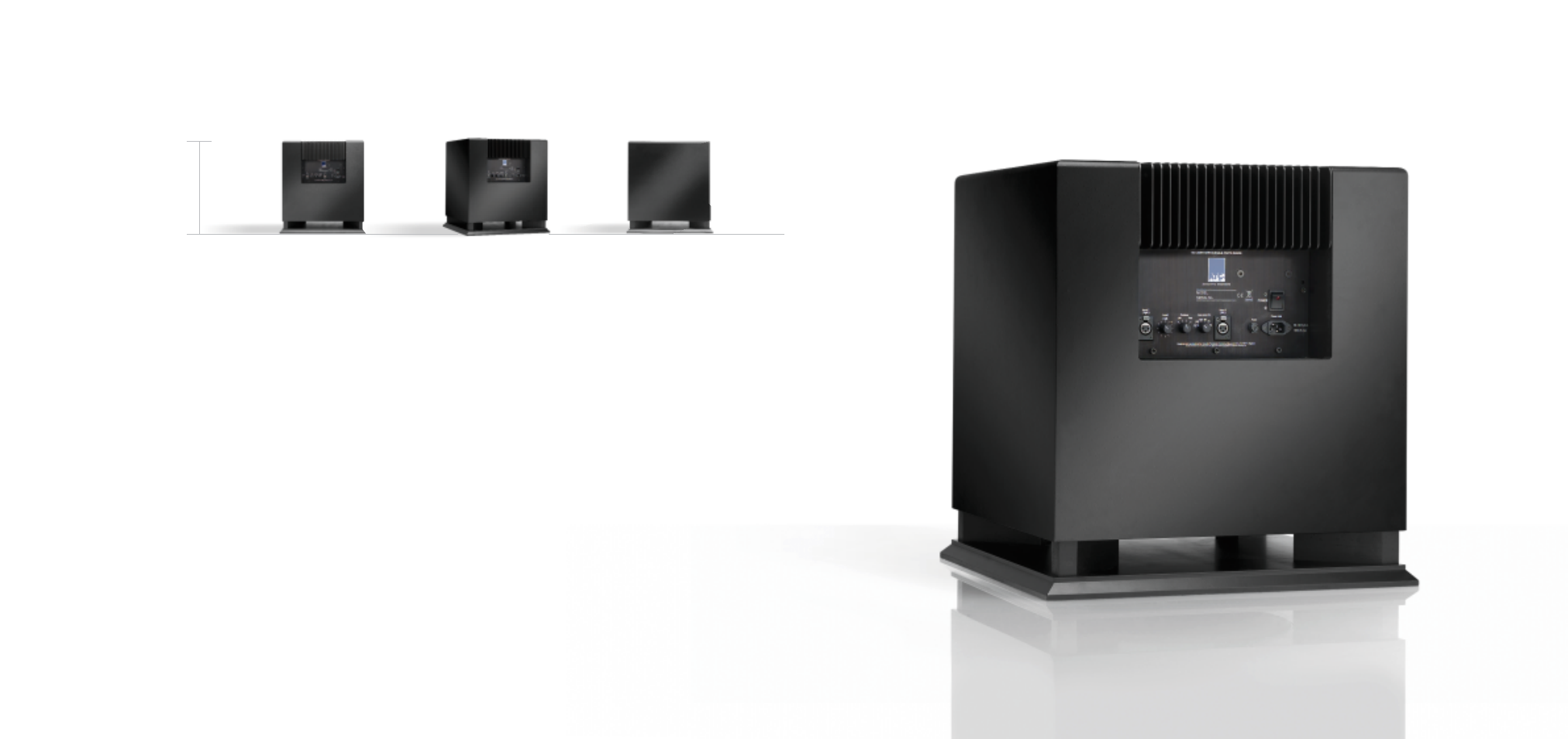

S C M 0 . 1 - 1 5 :
a c t i v e s u b b a s s
F e a t u r e s
Driver :
LF 375mm
Amplitude Linearity (±2dB) :
30Hz-300Hz
Cut-off Frequency (-6dB, free standing) :
20Hz
Max. Continuous SPL (1 metre) :
118dB
Input Connectors :
Male XLR
Input Sensitivity :
1V
Input Impedance :
Balanced > 10k
Ω
Amplifier Output : Bass
1000W
Filters :
Even Order Critically Damped
Overload Protection :
Active FET momentary gain reduction
Panel Indicators :
Power On indicator
Dimensions (HxWxD) :
631 x 580 x 580mm (24.8˝ x 22.8˝ x 22.8˝)
Weight :
90kg / 190lbs
ATC reserves the right to vary products and specifications without prior notice.
S p e c i f i c a t i o n s
631mm
