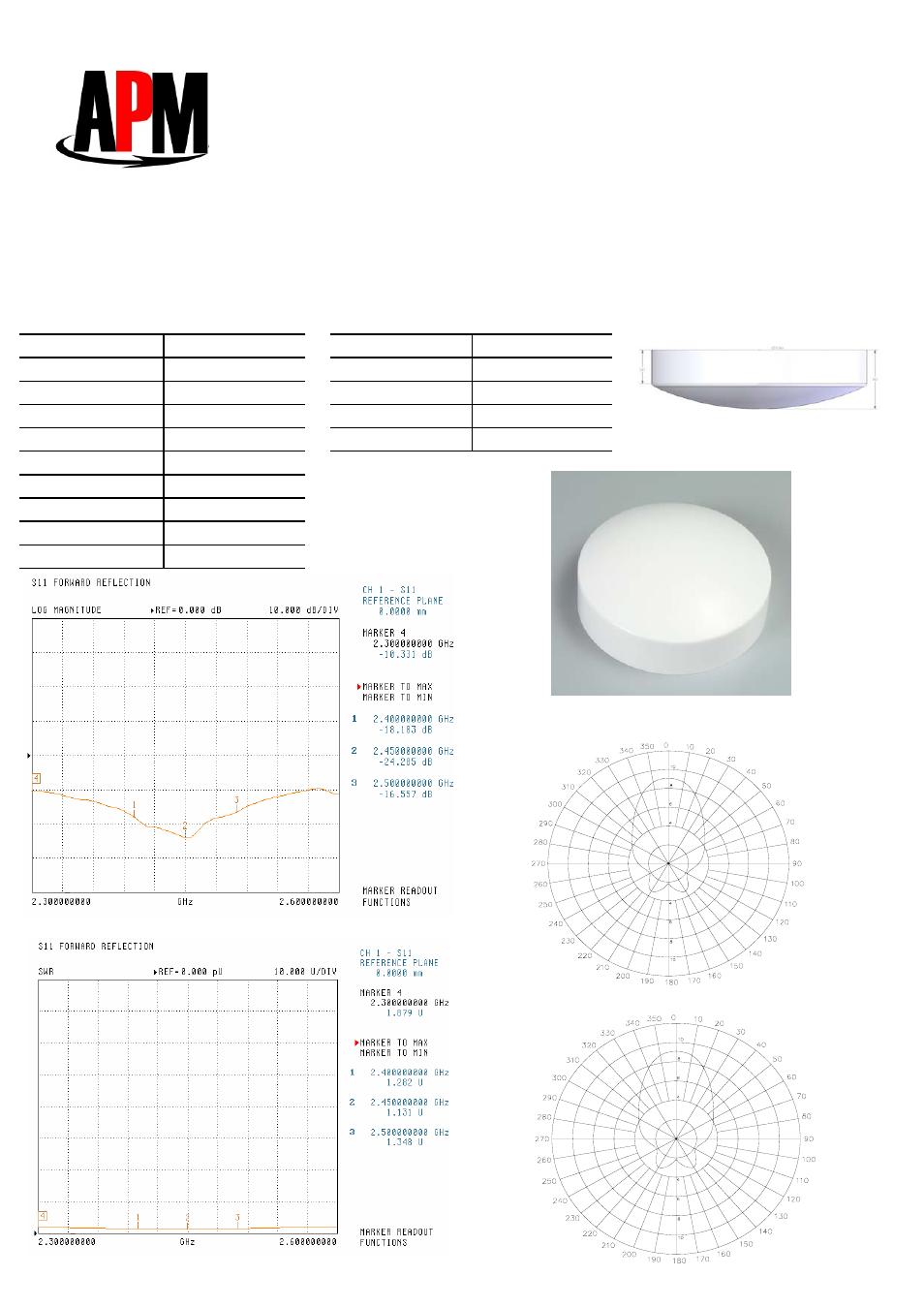

APM CO., LTD
APG-2409CP
Directional Panel Antenna for 2.4 ~2.5 GHz
Electrical Specification: MECHANICAL SPECIFICATION
Frequency 2.4 ~ 2.5 GHz Connector Tyep N Type Female
Part Number APG-2409CP Length φ130x50mm
Polarizatin CP Weight 200g
V.S.W.R. 1 : 1.5 Max Radome color White
Impedance 50 OHMS ± 5Ω Radome materal PVC and ABS
Gain 9 dBi
Power handling 10W Max
Front to back ratio 20dB
HPBW / horizontal 70°
HPBW / vertical 70°
H-PLANE FIELD PATTERNS
E-PLANE FIELD PATTERNS
0
0
0
0
