LG 37LG505H - Manual (Page 25)

EXTERNAL EQ
UIPMENT SETUP
23
VIDEO AUDIO
VIDEO
AUDIO
MONO ( )
S-VIDEO
REMOTE
CONTROL
OUT
RGB IN
AUDIO
IN
(RGB, DVI)
RESET
UPDATE
M.P.I.
1(DVI)
RJP
INTERFACE
2
SERVICE ONLY
HDMI/DVI IN
SPEAKER
OUT
8
AV IN 1 COMPONENT IN
DIGITAL
AUDIO
OUT
(OPTICAL)
( ) ( )
L R DVI-DTV OUTPUT

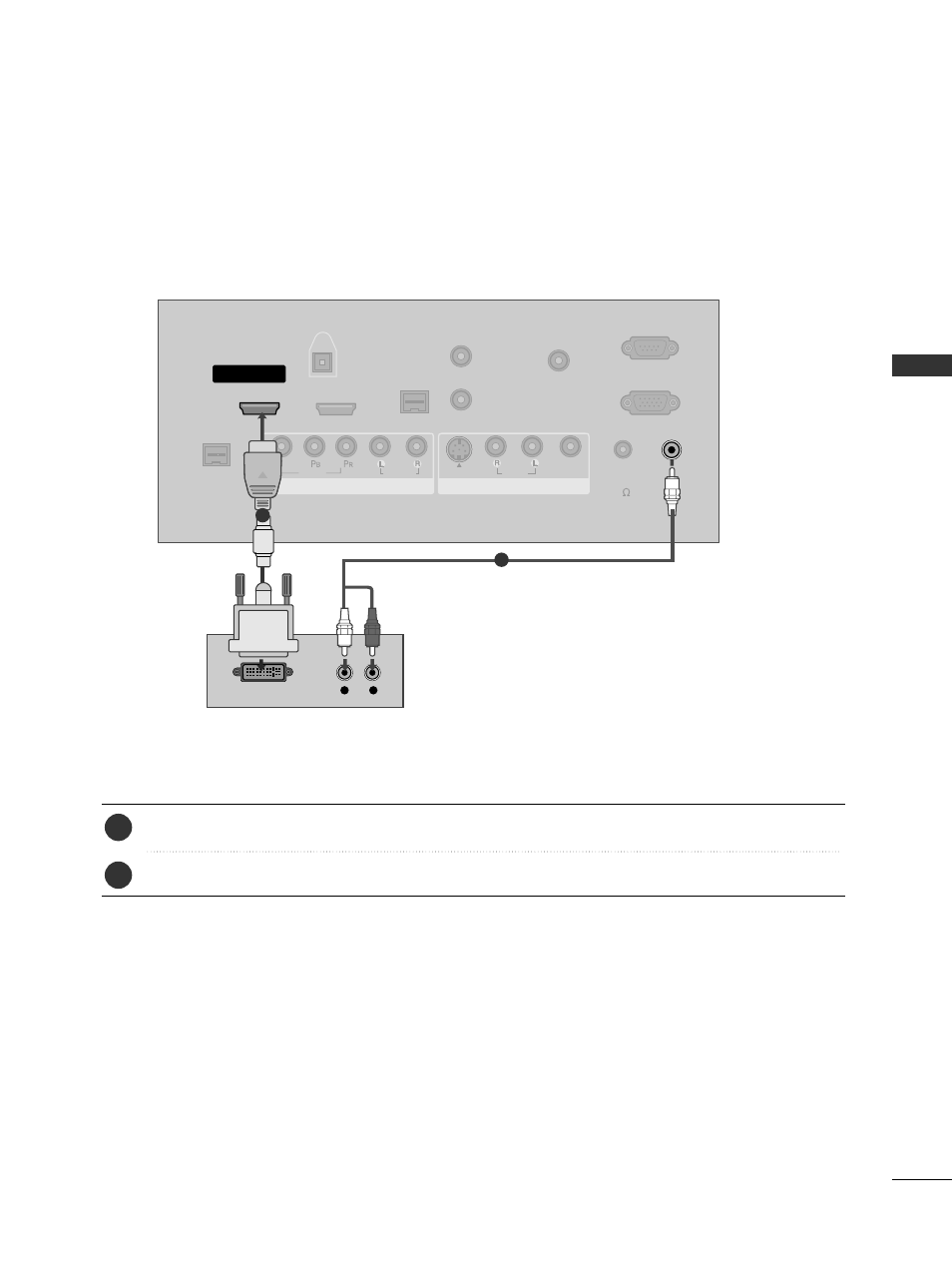

Connect the DVI output of the digital set-top box to the H HD DM MII//D DV VII IIN N 1 1((D DV VII)) or 2 2 jack on the set.
Connect the audio output of the digital set-top box to the A AU UD DIIO O IIN N ((R RG GB B,,D DV VII)) jack on the set.
1. How to connect
■ Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
■ Select H HD DM MII1 1//D DV VII or H H D D M M II 2 2 input source with using the II N N P P U U T T button on the remote control.
2. How to use
2
1
1
2
When connecting HDMI to DVI cable
