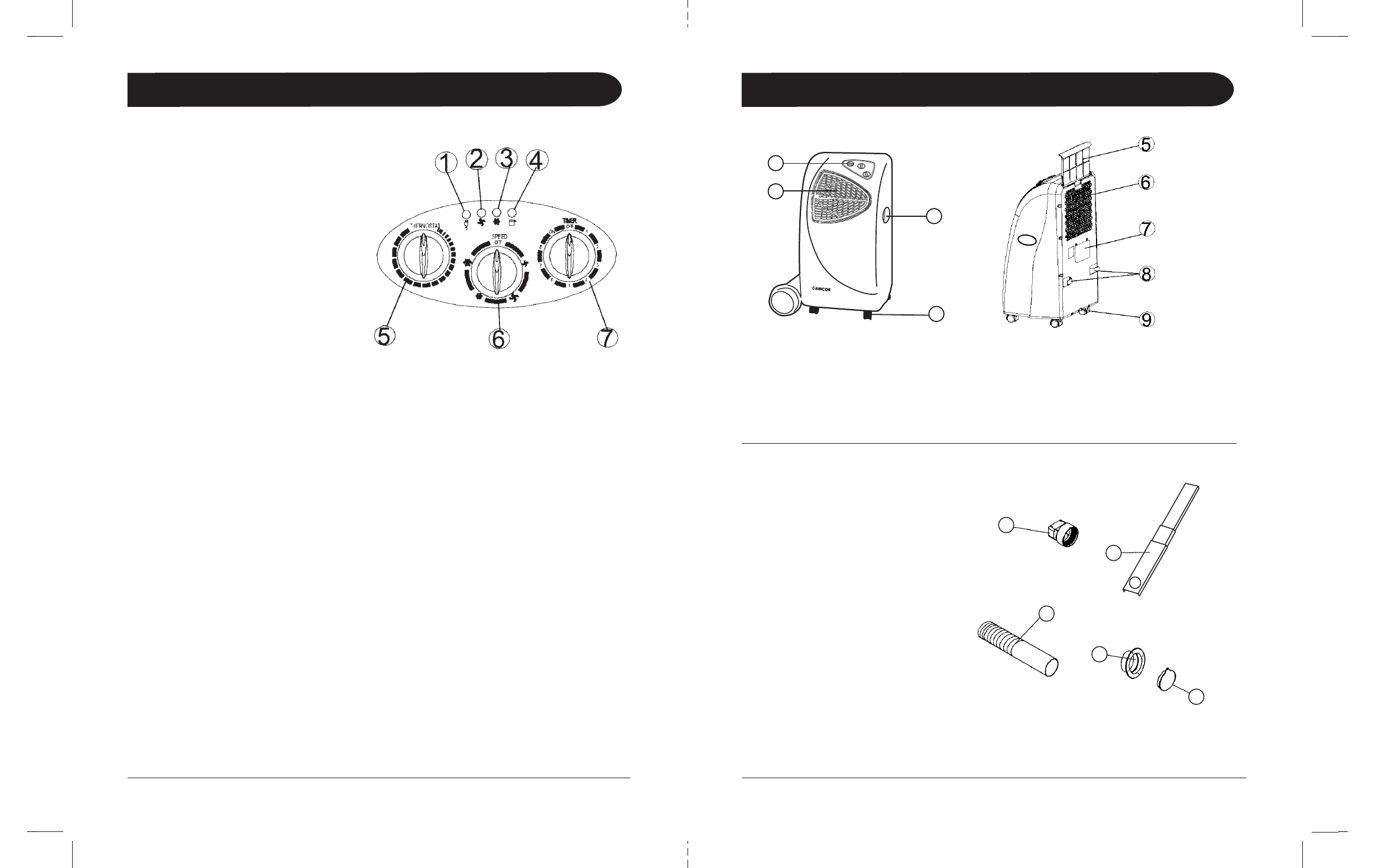

Parts

8

4

10

11

12

13

14

1. Power indicator

2. Fan operating indicator

3. Cooling operating indicator

4. Full water indicator

5. Thermostat

6. Speed switch with options for -

LOW FAN, HIGH FAN,
LOW COOL, HIGH COOL

7. Timer (1-8 hours) as well as ON/OFF switch

IMPORTANT!

• The compressor will start approximately 3 minutes after the unit is turned on (this will

help prolong the life of the compressor). After switching the unit off, please wait at least
3 minutes before turning the unit back on.

• The cooling system will switch off if the room temperature is lower than set. The fan, however, keeps

working at the set level. If the ambient temperature rises above the chosen temperature +/-5

°F,

the cooling will resume.

Turning ON/OFF

Set TIMER to ON for continuous operation (the unit will operate as long as it is not turned off).

Power indicator comes on.

To turn off the unit, turn the TIMER to the OFF position

Operation

1. Control Panel

2. Cooling Air Outlet

3. Handle

4. Castors

5. Air Filter

6. Air Inlet

7. Exhaust Air Outlet

8. Cord Hanger

9. Water Stopper (Rubber Plug Inside)

Accessories

10. Adaptor - for insertion over the

hose and into the back of the
air conditioner

11. Exhaust Hose

12. Adjustable Slide Bar

13. Round Connector

14. Cap for Round Connector
