23 MAKING CONNECTIONS
(Use the component video cable provided.)
Composite Connection

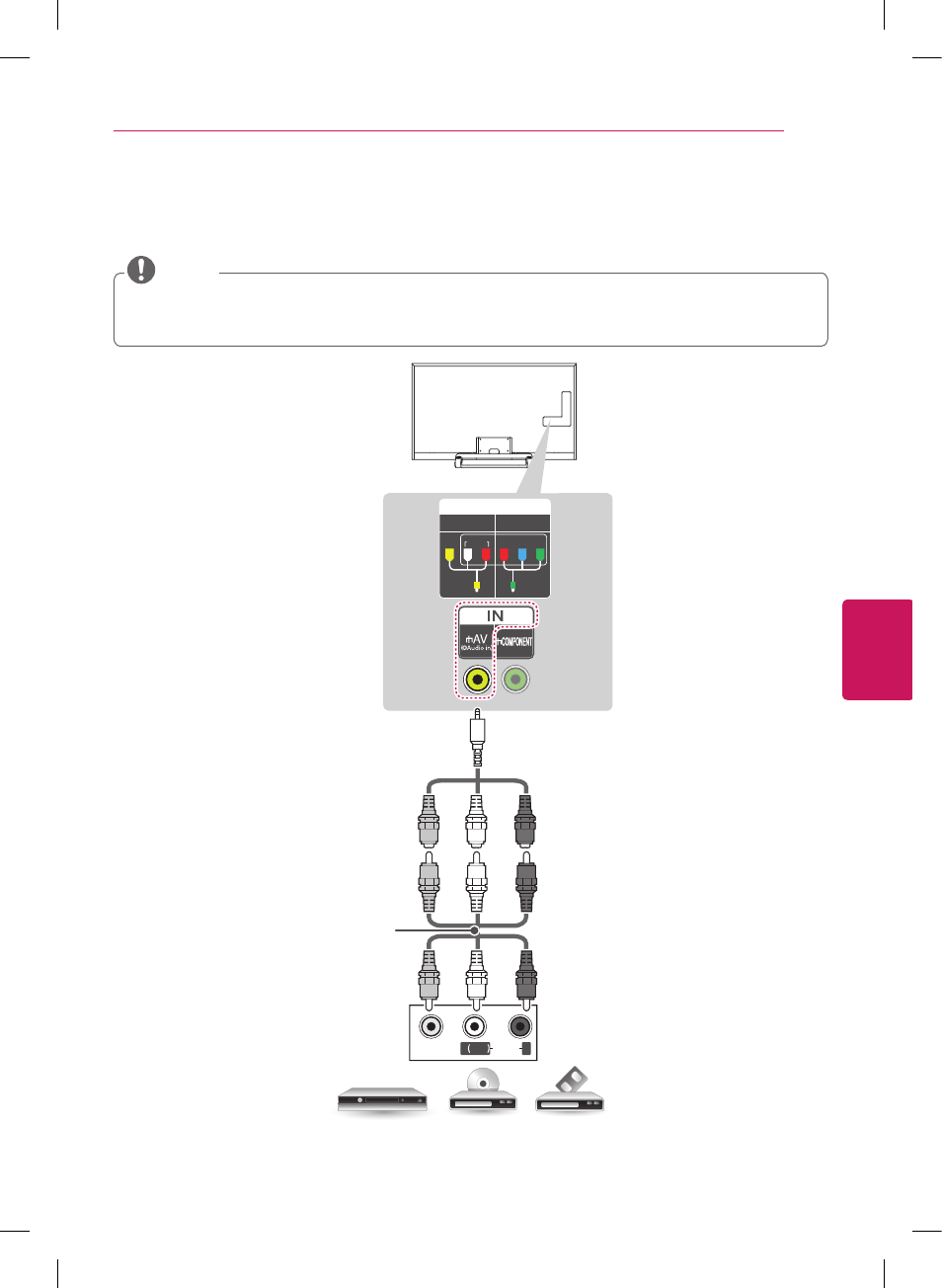

Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown in the following illustration.
IN
COMPONENT AV
VIDEO AUDIO Y P B P R
VIDEO MONO ( ) AUDIO L R
RED
WHITE
YELL
O
W
WHITE
RED
WHITE
RED
YELL
O
W
YELL
O
W
YELLOW
(Use the composite video cable provided.)
y If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of
the TV.
y Check to ensure the cables are matched with the corresponding color connection.
NOTE
VCR / DVD / Blu-Ray / HD Cable Box
(*Not Provided)
