MAKING CONNECTIONS
Component Connection

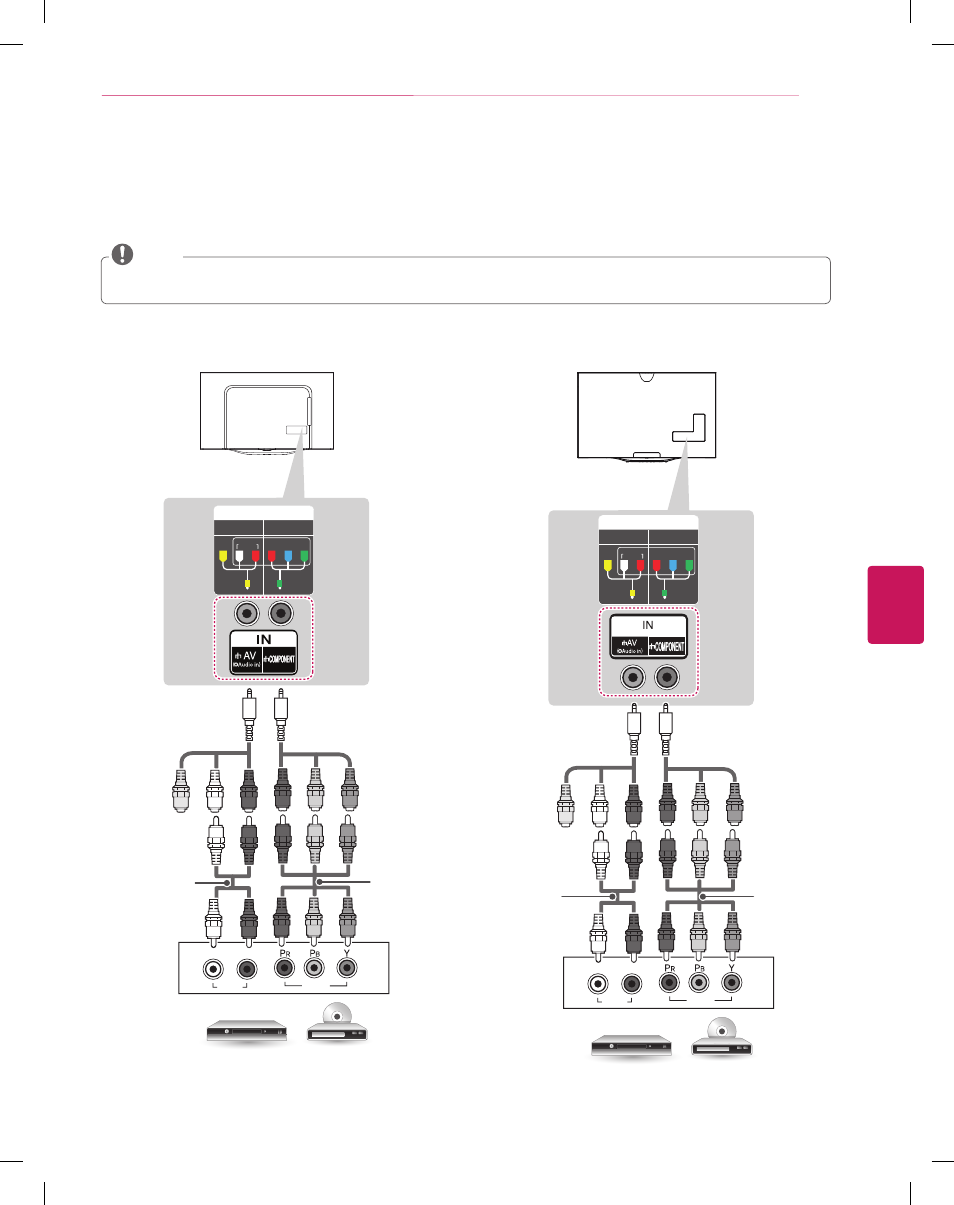

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component
cable as shown in the following illustration.
y If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
y Check to ensure the cables are matched with the corresponding color connection.
NOTE
IN
COMPONENT AV
VIDEO AUDIO Y P B P R
VIDEO AUDIO
L R
YELLOW
YELL
O
W
WHITE RED RED
BL
UE
GREEN
WHITE
RED RED
BL
UE
GREEN
WHITE
RED RED BL
UE
GREEN
(Use the composite video
cable provided.)
DVD / Blu-Ray / HD Cable Box
GREEN
(Use the component video
cable provided.)
(*Not Provided) (*Not Provided)
IN
COMPONENT AV
VIDEO AUDIO Y P B P R
VIDEO AUDIO
L R
YELLOW
YELL
O
W
WHITE
RED RED
BL
UE
GREEN
WHITE
RED RED
BL
UE
GREEN
WHITE
RED RED BL
UE
GREEN
(Use the composite video
cable provided.)
DVD / Blu-Ray / HD Cable Box
GREEN
(Use the component
video cable provided.)
(*Not Provided) (*Not Provided)
(For 55EC9300) (For 77EC9800)
