Connecting to a pc, Rgb connection, Composite connection – LG HW300T User Manual
Page 69
69
MAKING CONNECTIONS

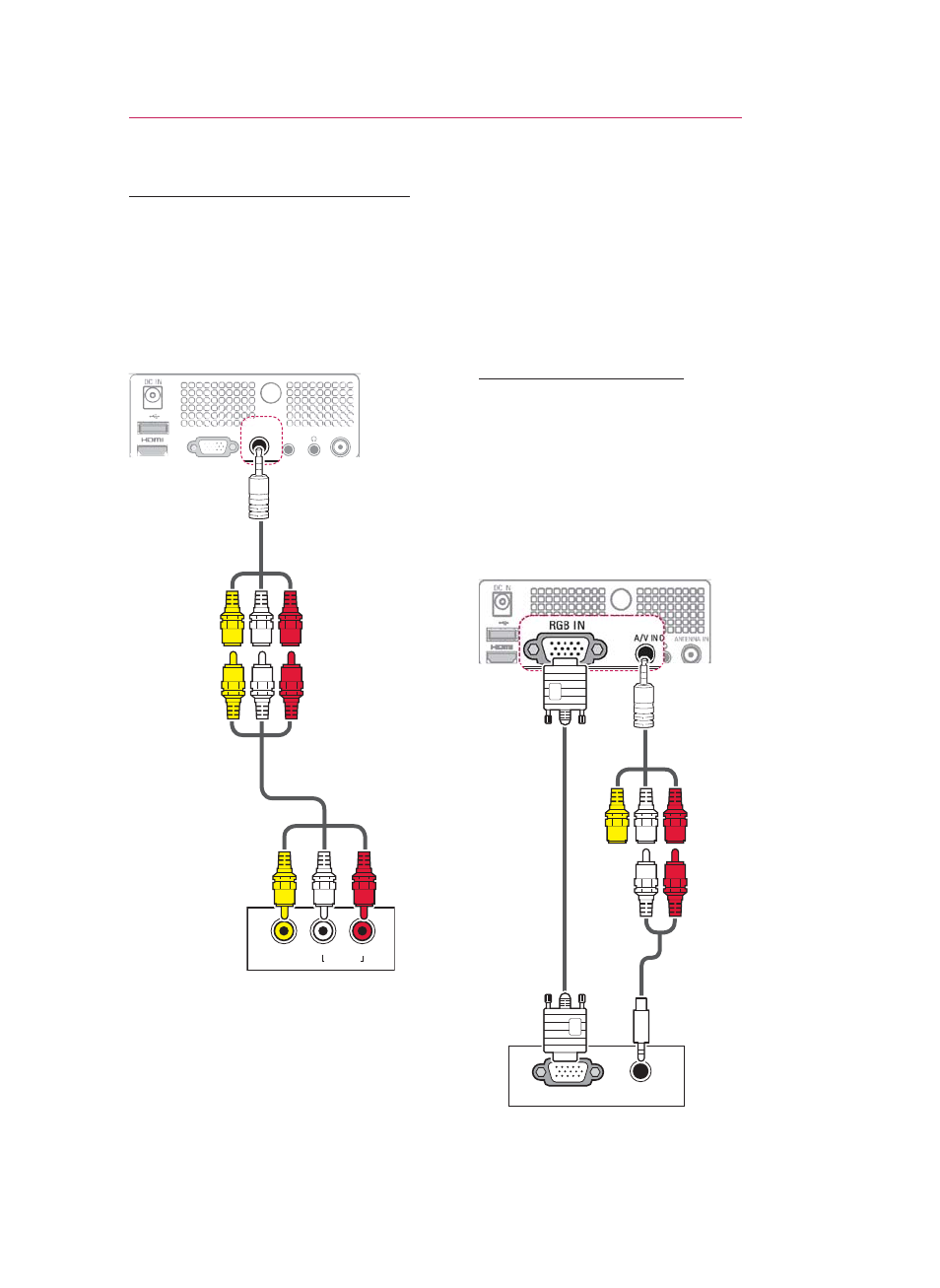

Connecting to a PC
This projector supports the Plug &
Play. A PC will automatically recognize
the projector and requires no driver to
be installed.
RGB Connection
Transmits the analog video signal from
your PC to the projector. Connect the
PC and the projector with the D-sub
15 pin signal cable as shown in the
following illustrations. To transmit an
audio signal, connect a 3-pole audio
cable from PC to the projector.
RGB IN
A/V INC
AUDIO OUT
RGB OUT (PC)
Composite Connection
Transmits the analog video and audio
signals from an external device to the
projector. Connect the external device
and the projector with the composite
cable as shown in the following
illustration.
VIDEO OUT
(L)
(R)
AUDIO OUT
RGB IN
A/V INCOMPONENT IN
ANTENNA IN
A/V INCO
