MAKING CONNECTIONS
DVD/ Blu-Ray / HD Cable Box
Component Connection

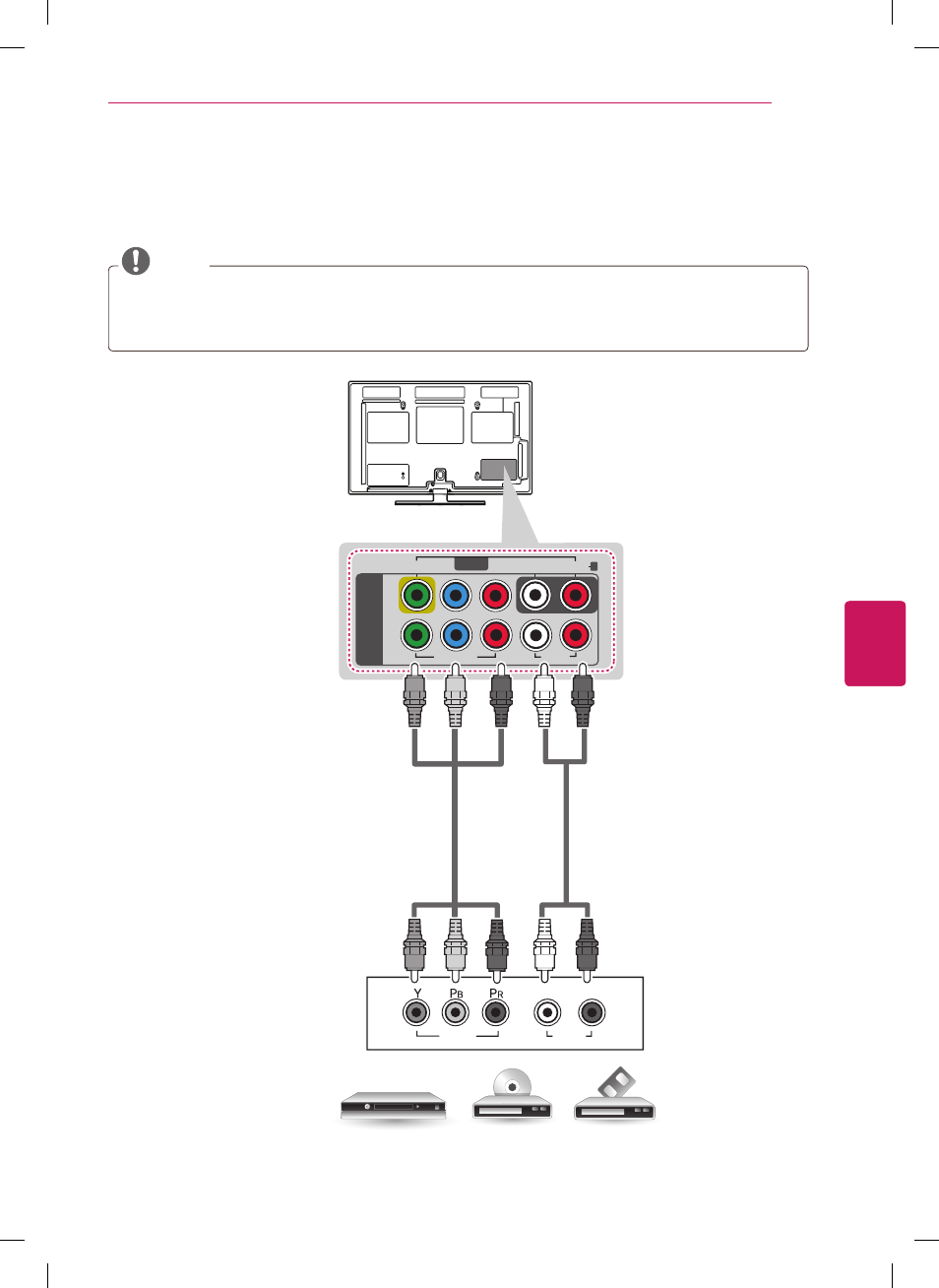

Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
NOTE
y
y
If cables are installed incorrectly, it could case the image to display in black and white or with
distorted color.
y
y
Check to ensure each cable is matched with the corresponding color connection.
