PC SETUP
This TV provides Plug and Play capability, meaning that
a
PC adjusts automatically to the TV's set-
tings.
1. How to connect
1
Connect the VGA output of the PC to the
RGB IN (PC) jack on the TV.
2
Connect PC audio output to the
AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
ꔛ
Turn on the PC and the TV.
ꔛ
Select the
RGB-PC
input source on the TV using
the
INPUT
button on the remote control.

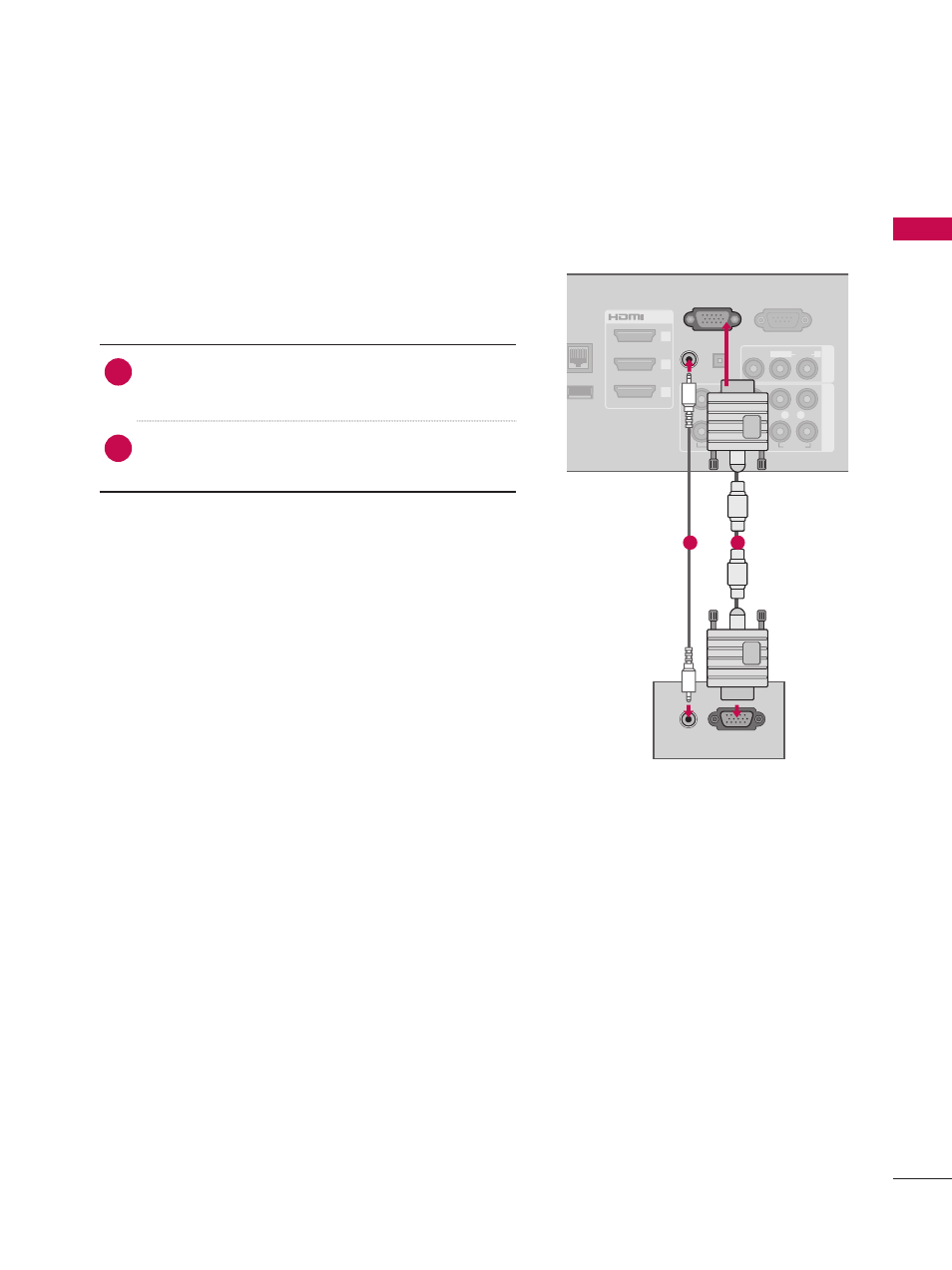

VGA (D-Sub 15 Pin) Connection
1
2
