Maintaining Your Appliance
33
Travis Industries 93508133 4 060417

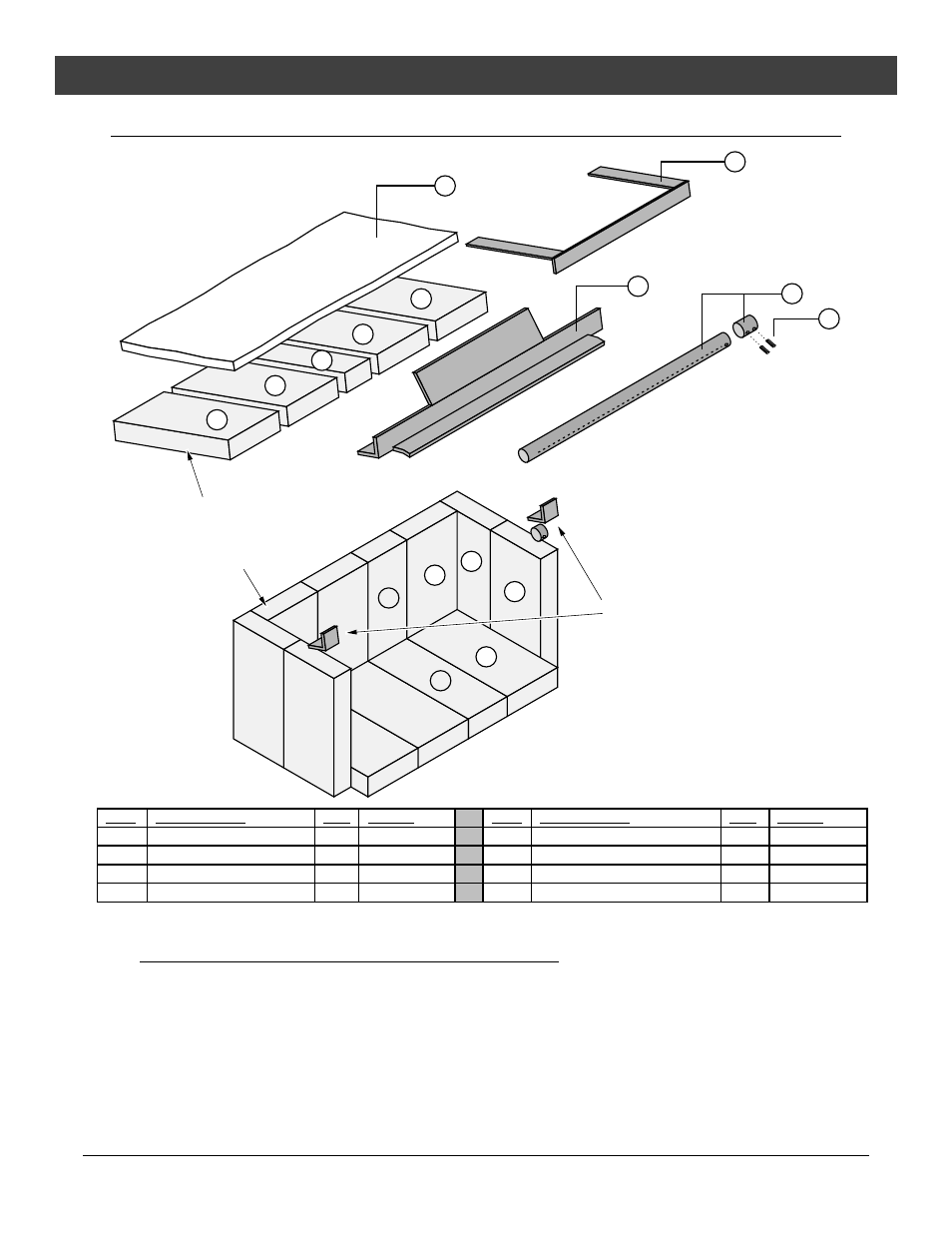

Firebox Parts
1
5
2
3
4
6
6
6
6
7
8
8
6
6
6
6
The baffle support rests on these
bars (welded to side of firebox).
The baffle firebrick rest on
top of the firebrick lining the
back of the firebox.
ID # Description Q t y Part # ID # Description Q t y Part #
1 Baffle Support 1 98900305 2 Air Tube with Sleeve 1 98900206
3 Air Tube Pins (6) 2 98900353 4 Blanket Weight 1 98900319
5 Kaowool Baffle Blanket 1 98900318 6 Brick - 9" x 4.5" (box of 9) 14 99900102
7 Brick - 9" x 2.25" 1 251-00001 8 Brick - 9" x 3.875" 2 251-00002
Floor and Side Firebrick Removal & Replacement
Do not pry firebrick - they chip and crack easily. Remove the floor firebricks first. The
side firebrick are removed later because they are pinned in place by the floor firebrick. Clean the
firebox prior to replacing the firebrick.
