Technical specifications – AXIS 215 PTZ Network Camera
www.axis.com
©2008 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modifications without notice.
32
85
1/
EN
/R
1/
08
09
Camera
Models AXIS 215 PTZ: 50 Hz
AXIS 215 PTZ: 60 Hz
Image sensor 1/4” interlaced CCD
Lens 3.8 – 46 mm, F1.6 – F2.7, automatic day/night, autofocus
Angle of view, horizontal: 4.4° – 51.6°
Minimum
illumination
Color: 1 lux at 30 IRE, F1.6
B/W: 0.3 lux at 30 IRE, F1.6
Shutter time NTSC: 1/50000 – 4/3 s
PAL: 1/50000 – 8/5 s
Pan/Tilt/Zoom 20 preset positions
Auto-flip, E-flip
±170° (360° via Auto-flip) pan range, 180°/s pan speed
180° tilt range, 140°/s tilt speed
12x optical, 4x digital zoom
Control queue, image freeze, sequence mode
Support Windows compatible joysticks
Designed for operator control
Video
Video
compression
MPEG-4 Part 2 (ISO/IEC 14496-2)
Motion JPEG
Resolutions 176x120 – 704x576
Frame rate
MPEG-4
Up to 30/25 (NTSC/PAL) in 2CIF/CIF/QCIF
Up to 26/22 (NTSC/PAL) in 4CIF/2CIFExp
Frame rate
Motion JPEG
Up to 30/25 (NTSC/PAL) in all resolutions
Video streaming Simultaneous MPEG-4 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR MPEG-4
ISMA compatible
Image settings Compression, color, brightness, sharpness, white balance, exposure
control, backlight compensation, day/night
Rotation 0 – 100º
Aspect ratio correction
Text and image overlay
De-interlace (4CIF resolution)
Audio
Audio streaming Two-way, full or half duplex
Audio compression G.711 PCM 8 kHz 64kbit/s
G.726 ADPCM 8 kHz 32 or 24 kbit/s
Audio input/output External microphone input or line input, line level output
Network
Security Password protection, IP address filtering, HTTPS encryption,
IEEE 802.1X network access control
Supported
protocols
IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour,
UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP,
UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®
from Axis Communications available at www.axis.com
Intelligent video Video motion detection, audio detection
Alarm triggers Intelligent video and external input
Alarm events File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video buffer 9 MB pre-and post alarm
General
Processors and
memory
ETRAX FS, ARTPEC-2, 32 MB RAM, 8 MB Flash
Power 12 V DC ±5%, max 14.5 W
Connectors RJ-45 for 10BASE-T/100BASE-TX
Terminal block for 1 alarm input, 1 output and power out for I/O
3.5 mm mic/line in, 3.5 mm line out
Operating
conditions
0 – 45 °C (32 – 113 °F)
Humidity 20 – 80% RH (non-condensing)
Approvals EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
EN 60950-1, FCC Part 15 Subpart B Class B, ICES-003 Class B,
C-tick AS/NZS 3548
Power supply: UL, CSA, CE
Weight 730 g (1.6 lb.) incl hard ceiling cover
1260 g (2.8 lb.) incl drop ceiling mounting bracket and cover
Included
accessories
Installation Guide, CD with User's Manual, recording software,
installation and management tools, hard ceiling and drop ceiling
mount kits, indoor power supply, transparent and smoked domes,
Windows decoder 1-user license

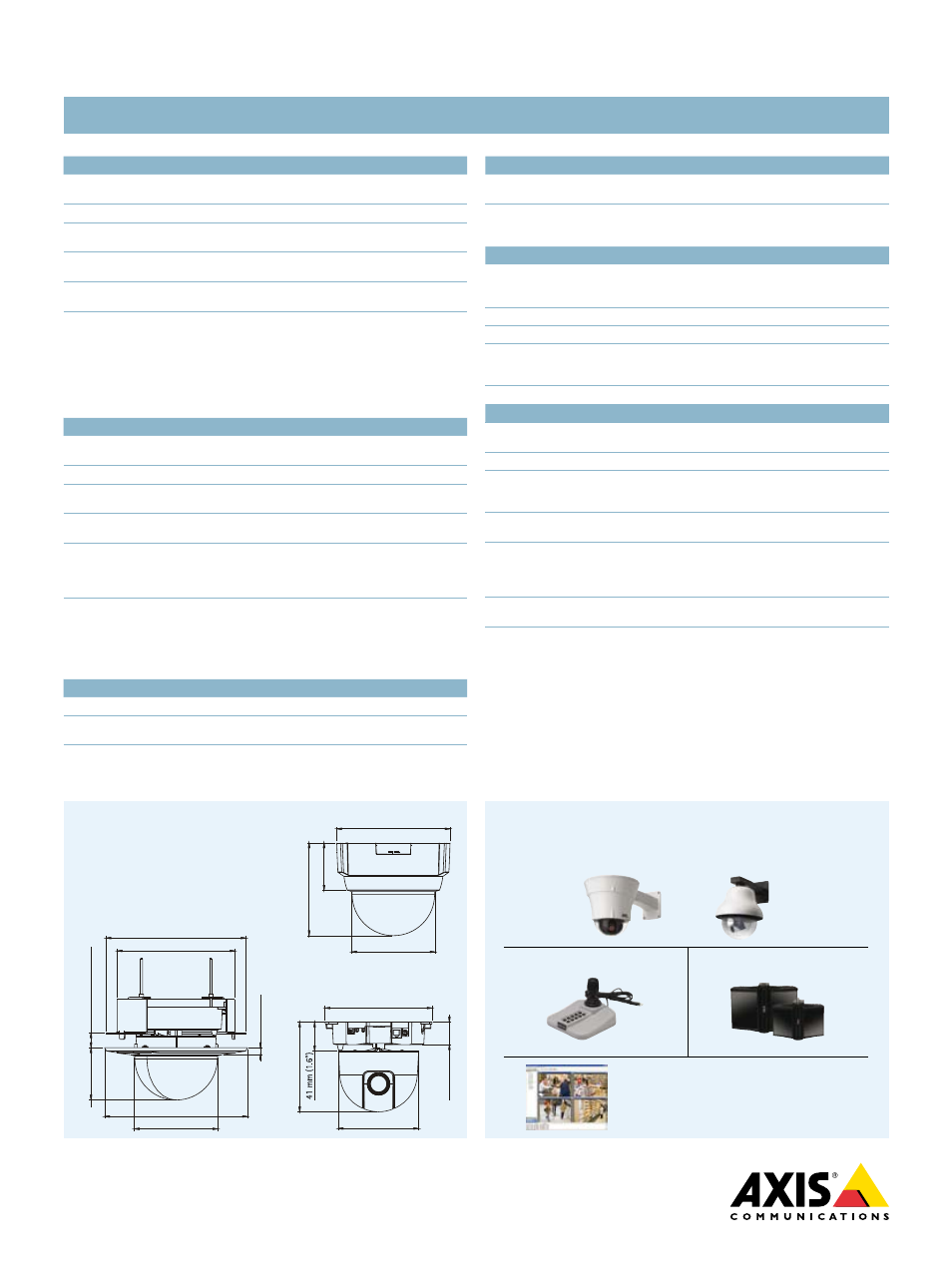

Dimensions Optional accessories
AXIS 295 Video Surveillance Joystick T90A IR illuminators
More information is available at www.axis.com
For information on AXIS Camera Station and
video management software from
Axis’ Application Development Partners,
see www.axis.com/products/video/software/
153 mm (6.0”)
128 mm (5.0”)
114 mm (4.5”)
32 mm (1.3”)
162 mm (6.4”)
132 mm (5.2”)
68 mm (2.7”)
118 mm (4.7”)
200 mm (7.9”)
168 mm (6.6”)
10 - 60 mm (0.4 - 2.4”)
75 mm (2.9”)
118 mm (4.7”)
204 mm (8.0”)
10 mm (0.4”)
153 mm (6.0”)
128 mm (5.0”)
114 mm (4.5”)
32 mm (1.3”)
162 mm (6.4”)
132 mm (5.2”)
68 mm (2.7”)
118 mm (4.7”)
200 mm (7.9”)
168 mm (6.6”)
10 - 60 mm (0.4 - 2.4”)
75 mm (2.9”)
118 mm (4.7”)
204 mm (8.0”)
10 mm (0.4”)
153 mm (6.0”)
128 mm (5.0”)
114 mm (4.5”)
32 mm (1.3”)
162 mm (6.4”)
132 mm (5.2”)
68 mm (2.7”)
118 mm (4.7”)
200 mm (7.9”)
168 mm (6.6”)
10 - 60 mm (0.4 - 2.4”)
75 mm (2.9”)
118 mm (4.7”)
204 mm (8.0”)
10 mm (0.4”)
Various housings
